Mean Well LRS-150-12 Switching Power Supply
The Mean Well LRS-150-12 is a highly reliable, 150W single-output enclosed style AC-DC switching power supply designed for a wide range of industrial and electrical applications. It features a selectable AC input voltage range (100-120VAC or 200-240VAC) configurable via an internal switch, ensuring global compatibility. Delivering a stable 12VDC output at 12.5A, this unit is housed in a low-profile honeycomb ventilated metal chassis that provides excellent heat dissipation without the need for a cooling fan. It is equipped with standard screw terminal blocks for secure wiring and a +V ADJ potentiometer for precise output voltage tuning. Compliant with international safety standards including CE, UKCA, EAC, and BIS, the LRS-150-12 guarantees safe and efficient power delivery for your critical systems.
Technical Specifications:
- Brand & Model: Mean Well LRS-150-12
- Output Power: 12V DC, 12.5A (150W Max)
- Input Voltage: 100-120VAC (3.0A) / 200-240VAC (1.7A), 50/60Hz (Selectable via internal switch)

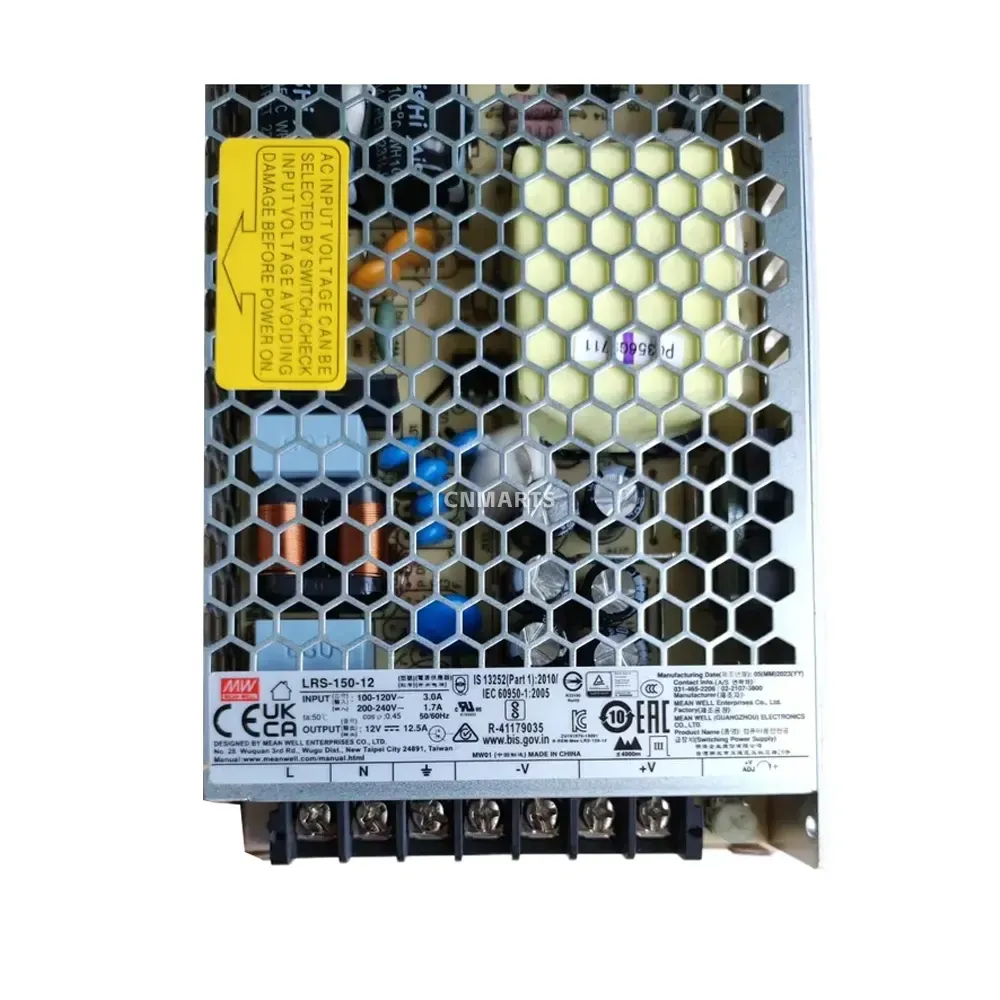

- Physical Features: Enclosed honeycomb ventilated metal chassis, screw terminal block (L, N, earth, -V, +V), +V ADJ potentiometer
- Certifications: CE, UKCA, EAC, BIS (IS 13252(Part 1):2010 / IEC 60950-1:2005)
| Brand | Mean Well |
|---|---|
| Model | LRS-150-12 |
