MEAN WELL LRS-150-24 Switching Power Supply
The MEAN WELL LRS-150-24 is a highly reliable, 150W single-output enclosed type AC-DC switching power supply. Engineered for industrial and mechanical applications, it features a switch-selectable AC input voltage range (100-120VAC or 200-240VAC) and delivers a stable 24VDC output at 6.5A. The unit is housed in a low-profile, honeycomb ventilated metal enclosure that ensures excellent heat dissipation and reliable operation at ambient temperatures up to 50°C. Complete with secure screw terminal blocks (L, N, Earth, -V, +V, +V ADJ) and comprehensive international safety certifications including CE, UKCA, EAC, and BIS, the LRS-150-24 provides a robust and efficient power solution for automation machinery, control systems, and general electronic equipment.
Technical Specifications:
- Brand: MEAN WELL
- Model: LRS-150-24
- Output Voltage: 24V DC
- Output Current: 6.5A
- Rated Power: 150W Class
- Input Voltage: 100-120VAC 3.0A / 200-240VAC 1.7A (Selectable by Switch)
- Input Frequency: 50/60Hz (cos φ 0.45)

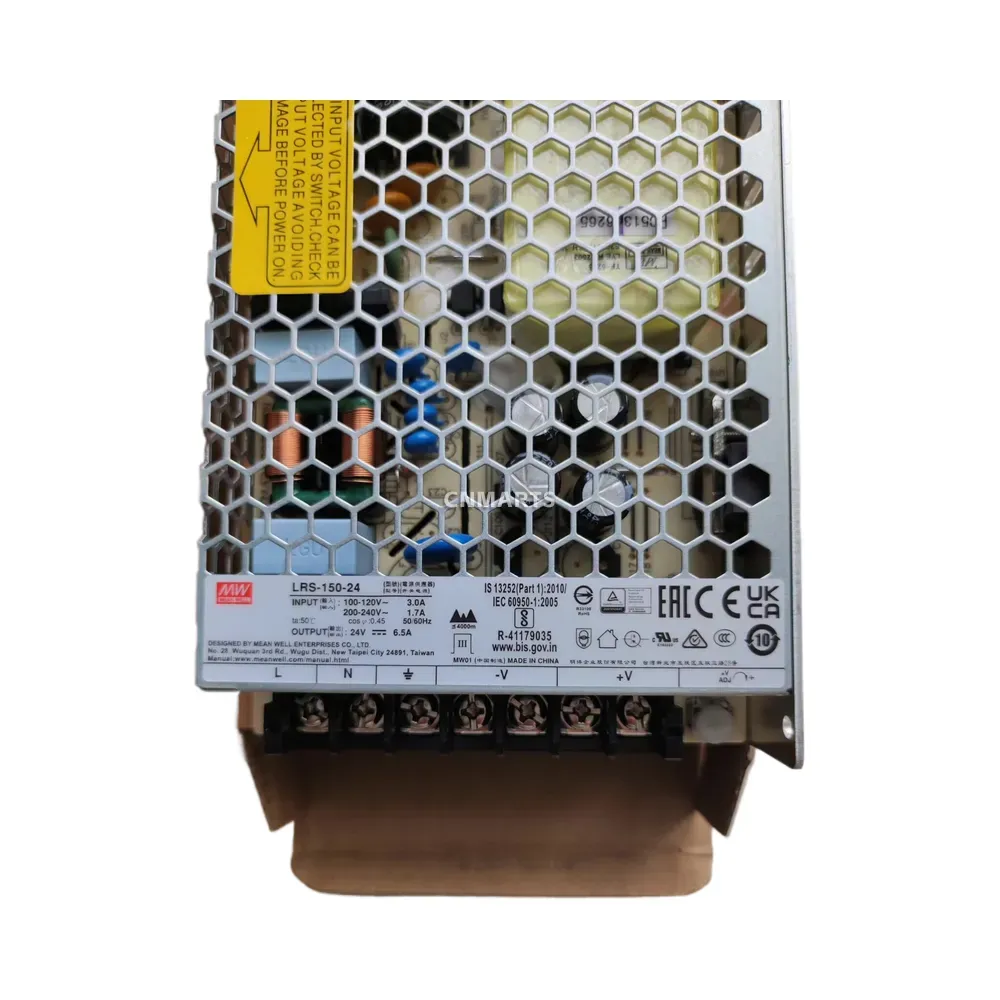

- Terminals: Screw Terminal Block (L, N, Earth, -V, +V, +V ADJ)
- Operating Temperature: ta 50°C
- Certifications: IS 13252 (Part 1):2010, IEC 60950-1:2005, EAC, CE, UKCA, BIS
- Warranty: 3 Years
| Brand | Mean Well |
|---|---|
| Model | LRS-150-24 |
