Nidec-Sankyo DA22422R5 AC Servo Driver
Upgrade your industrial automation with the Nidec-Sankyo DA22422R5 AC Servo Driver. This 400W S-LAG series controller offers 1-phase 200-240V input, precise 3-phase motor control, an intuitive digital display, and CE certification for reliable, high-performance operation.
Payment Methods:
-
Online Support 24/7
-
12 Months Warranty for New Products
-
30 Days Money Back Guarantee
Nidec-Sankyo DA22422R5 AC Servo Driver
The Nidec-Sankyo DA22422R5 is a high-performance S-LAG series AC Servo Driver designed for precise motion control in demanding industrial automation environments. Engineered with a robust 400W power rating, this reliable unit accepts a single-phase AC200-240V input and delivers a highly accurate three-phase 0-240V output at 2.7A. It is equipped with a user-friendly front panel display featuring Mode, Set, and Select buttons, allowing for quick on-site configuration and diagnostics. For seamless integration, the driver includes a dedicated CN1 communication port and clearly designated terminal blocks for power (L1, L2), motor connections (U, V, W), and brake resistors (B1, B2). CE certified and built to strict safety standards, the DA22422R5 ensures efficient, safe, and continuous operation for your automated systems.
Technical Specifications:
- Brand: Nidec-Sankyo
- Model: DA22422R5 (S-LAG Series)
- Power Rating: 400W

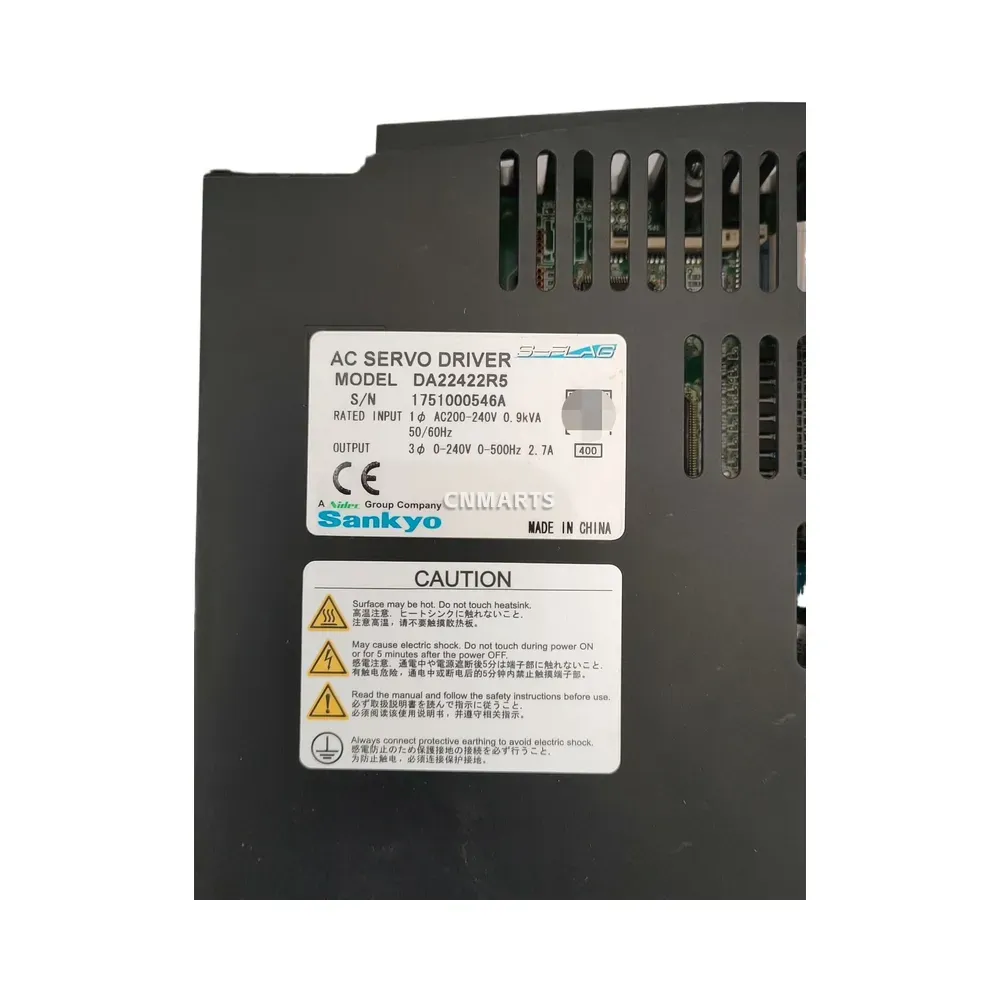

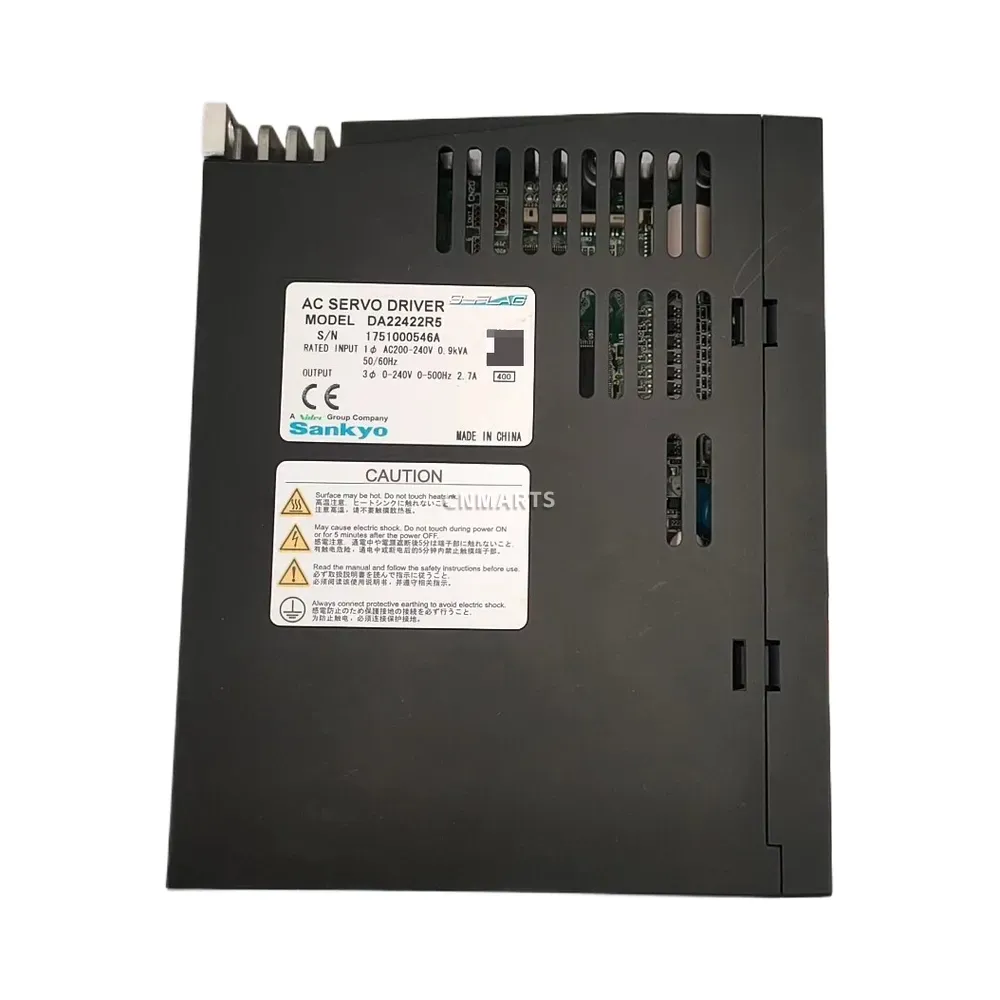

- Rated Input: 1-Phase AC200-240V, 0.9kVA, 50/60Hz
- Rated Output: 3-Phase 0-240V, 0-500Hz, 2.7A

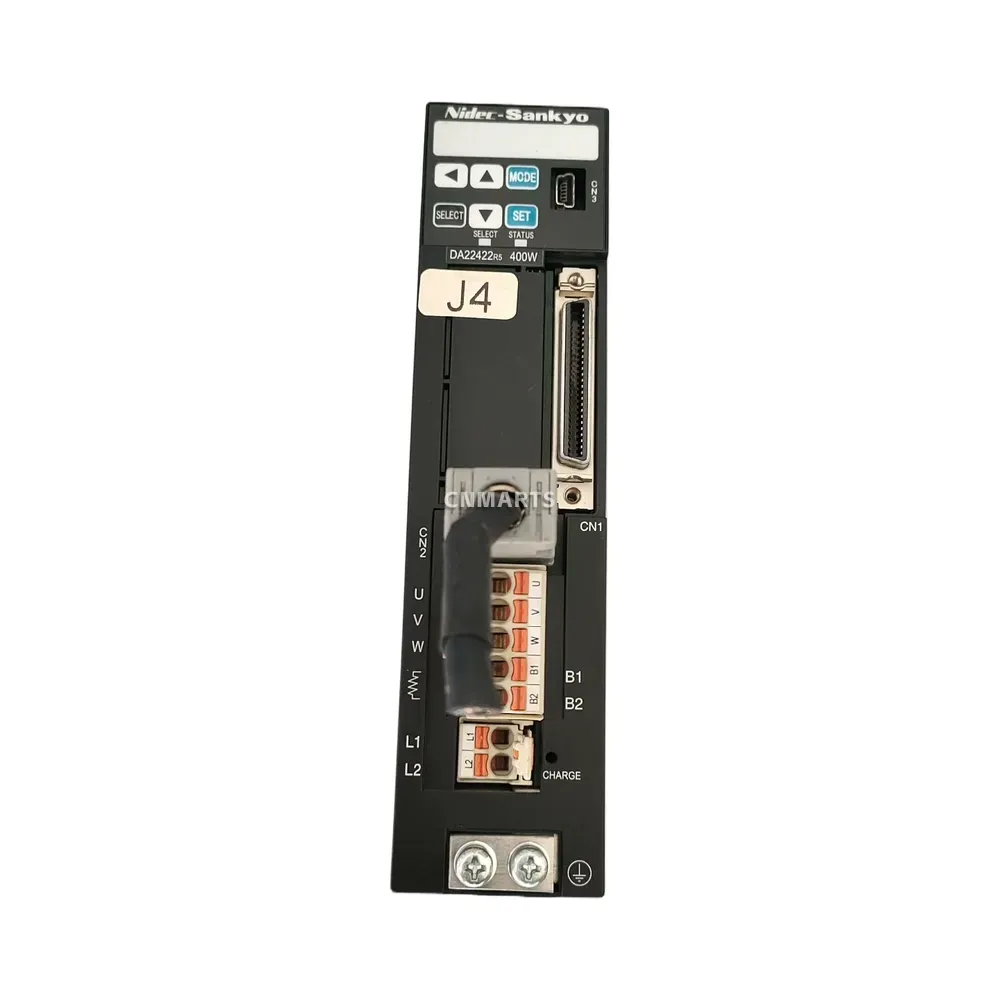

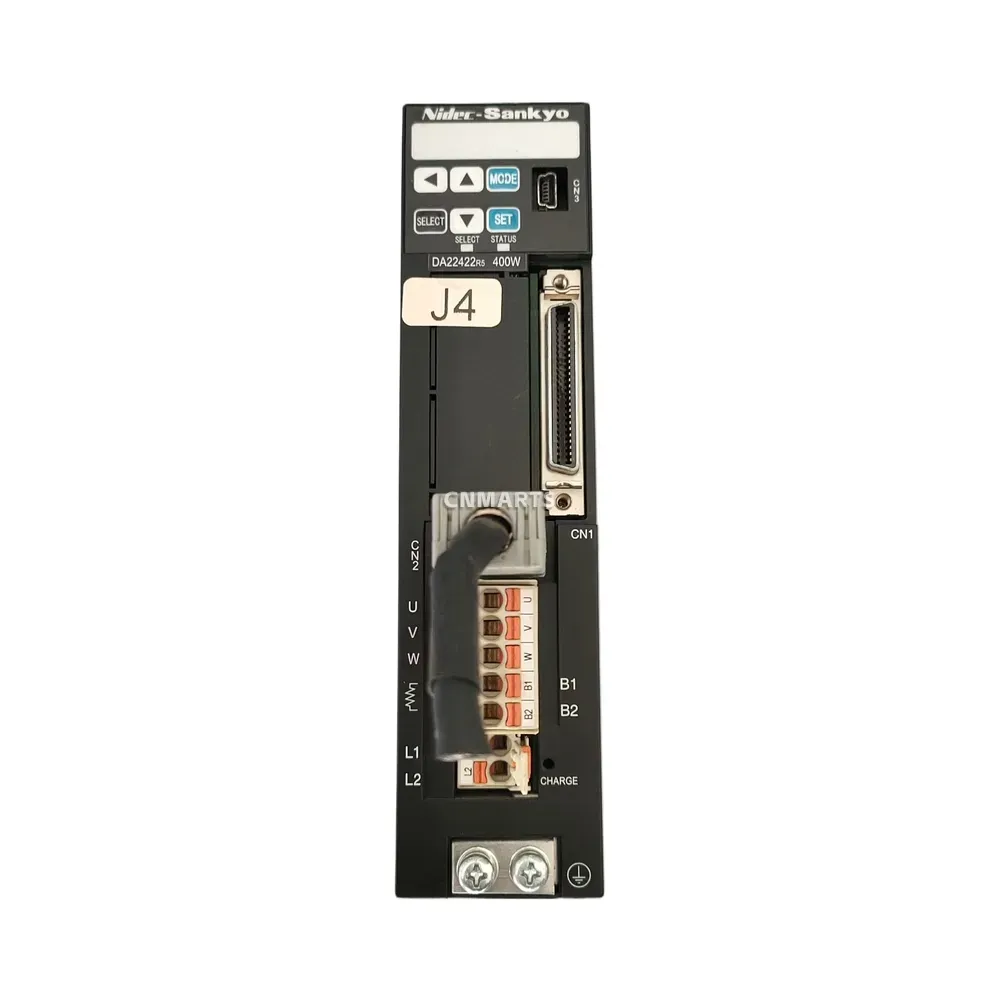

- Interface & Controls: Front panel display, Mode/Set/Select buttons, CN1 communication port
- Terminal Connections: Power (L1, L2), Motor (U, V, W), Brake Resistor (B1, B2)
- Certifications: CE Marked
| Brand | Nidec-Sankyo |
|---|---|
| Model | DA22422R5 |
