OMRON E5CC-QX2ASM-802 / E5CC-RX2ASM-802 Digital Temperature Controller

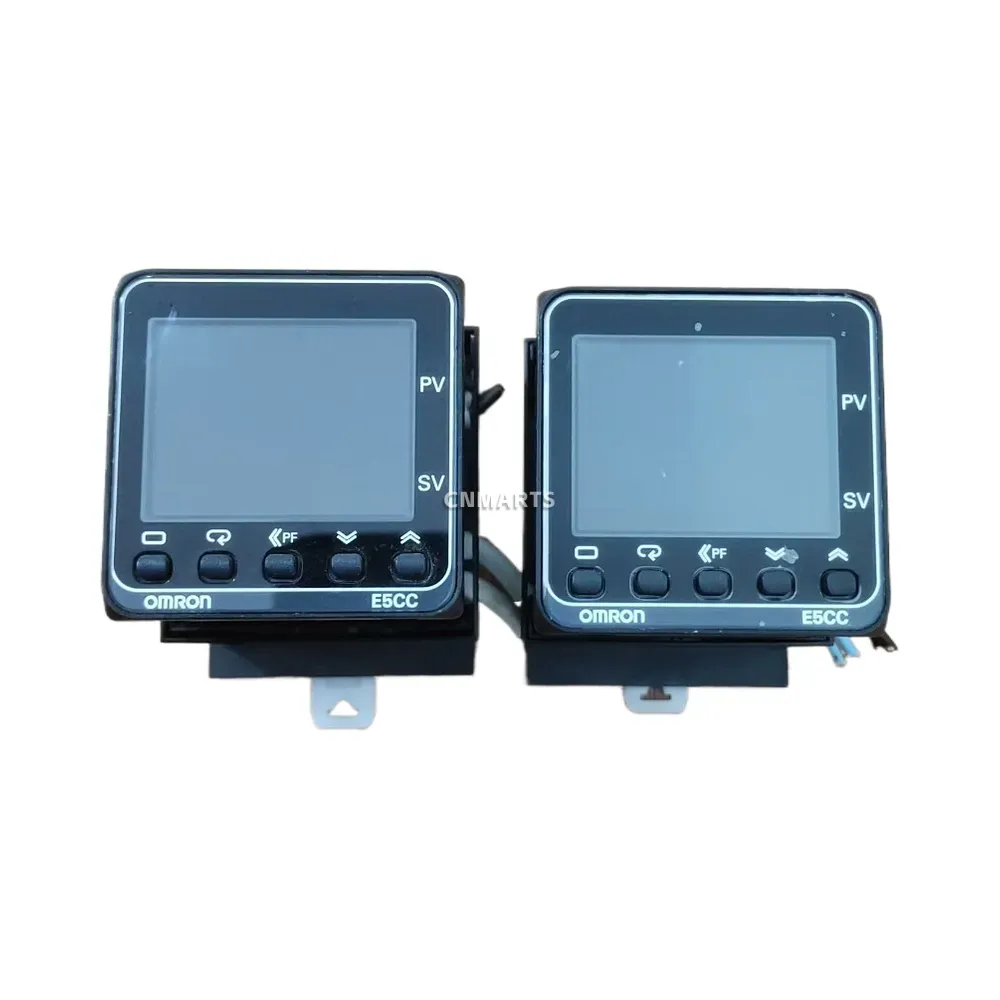

The OMRON E5CC series sets a new standard for precision temperature control in a compact, space-saving 48 x 48 mm body. Featuring a large, high-contrast white LCD display, the E5CC provides exceptional readability from a distance and at any angle. Its high-speed 50 ms sampling period ensures responsive and accurate process control for a wide range of applications. Setup is streamlined with a simple 5-key interface, making configuration quick and intuitive. These models include two auxiliary outputs and RS-485 communication for seamless integration into larger control systems. Ideal for industries requiring reliable and precise thermal management, the E5CC controller is a versatile solution for packaging, molding, and food processing machinery.
Technical Specifications:
- Control Method: ON/OFF or 2-PID control (with auto-tuning)
- Input Type: Universal (Thermocouple, Pt100/JPt100 RTD, Infrared thermopile, Current/Voltage)
- Control Output 1:
– E5CC-QX2ASM-802: Voltage output (for driving SSR), 12 VDC, 21 mA
– E5CC-RX2ASM-802: Relay output, SPST-NO, 3 A at 250 VAC (resistive load) - Auxiliary Outputs: 2 Relay outputs (SPST-NO, 3 A at 250 VAC)
- Power Supply Voltage: 100 to 240 VAC, 50/60 Hz
- Communication: RS-485 (Modbus RTU)
- Display: High-contrast 11-segment LCD with white PV display
- Dimensions: 48 x 48 x 60 mm (W x H x D), 1/16 DIN
- Sampling Period: 50 ms
| Brand | Omron |
|---|---|
| Model | E5CC-QX2ASM-802 / E5CC-RX2ASM-802 |
