OMRON ZX2-LDA / ZX2-LD100L Laser Displacement Sensor
Achieve high-precision, non-contact measurement with the OMRON ZX2-LDA / ZX2-LD100L laser displacement sensor system. This set includes a smart digital amplifier and a long-range sensor head, perfect for industrial automation and quality control.
Payment Methods:
-
Online Support 24/7
-
12 Months Warranty for New Products
-
30 Days Money Back Guarantee

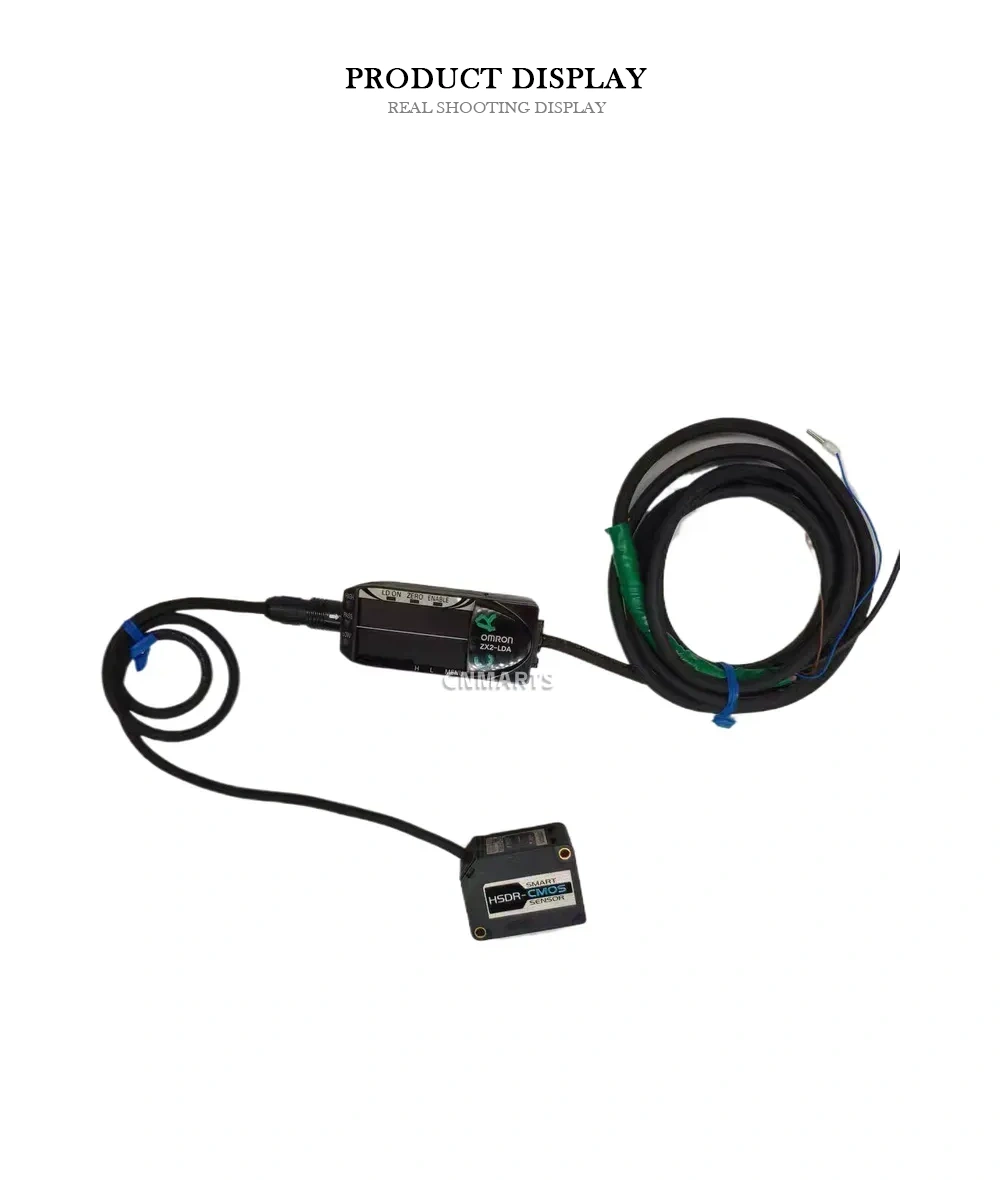

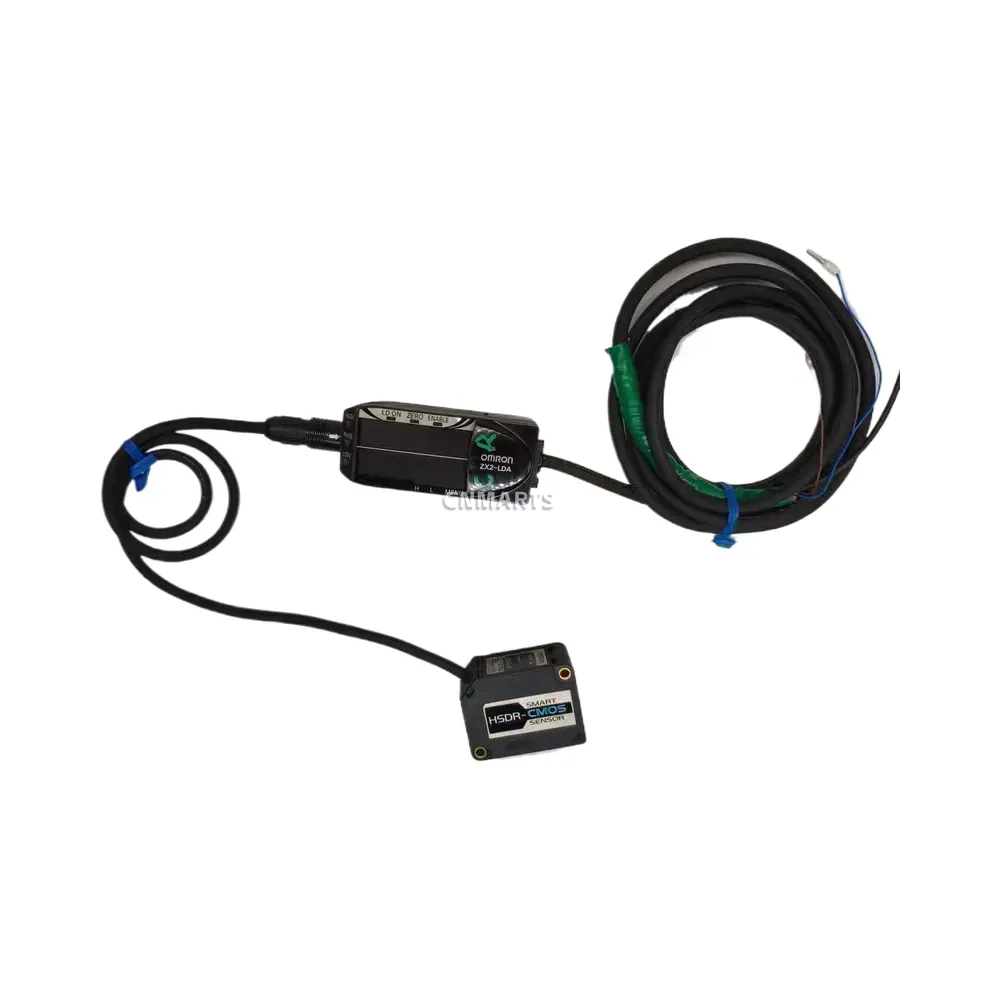

OMRON ZX2-LDA / ZX2-LD100L Laser Displacement Sensor
The OMRON ZX2 series provides a high-performance and user-friendly solution for non-contact displacement and measurement applications. This system, combining the ZX2-LDA smart amplifier unit with the ZX2-LD100L sensor head, is engineered for exceptional precision and stability in demanding industrial environments. The amplifier features an intuitive digital display and simple menu-based setup, allowing for quick configuration and monitoring. The sensor head utilizes a Class 2 red semiconductor laser to deliver highly accurate and repeatable measurements, making it ideal for quality control tasks such as thickness measurement, warpage detection, height differentiation, and precise positioning.
Technical Specifications:
- Model (Amplifier): ZX2-LDA
- Model (Sensor Head): ZX2-LD100L
- Measuring Distance: 100 ± 20 mm
- Resolution: 5 µm
- Linearity: ±0.1% F.S. (Full Scale: 40 mm)
- Light Source: Red semiconductor laser (Wavelength: 655 nm, Class 2 Laser Product)
- Power Supply Voltage: 12 to 24 VDC ±10%
- Outputs: Control output (NPN/PNP selectable), Analog output (Voltage/Current), Serial communication (RS-232C)
| Brand | Omron |
|---|---|
| Model | ZX2-LDA / ZX2-LD100L |
