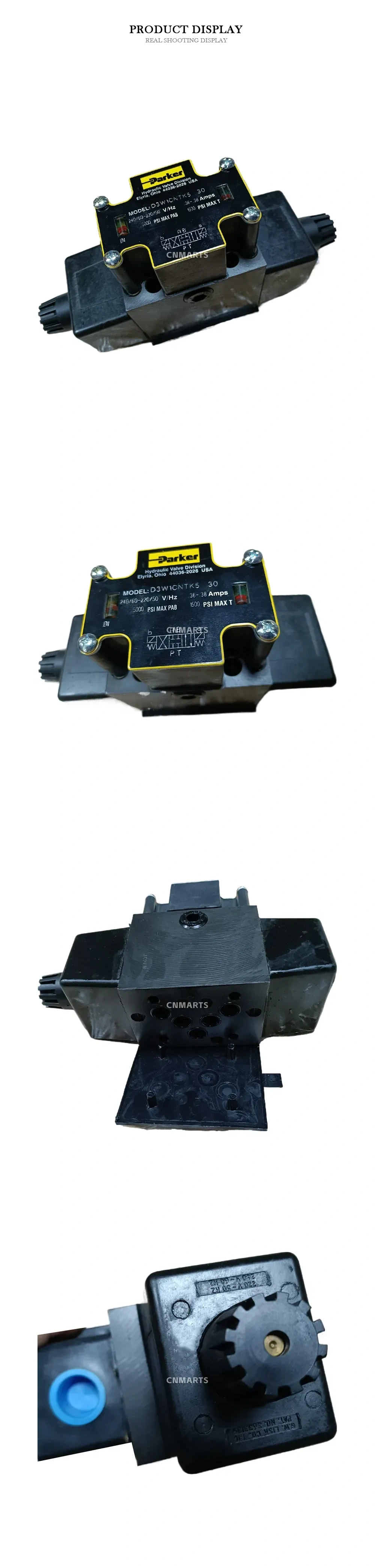

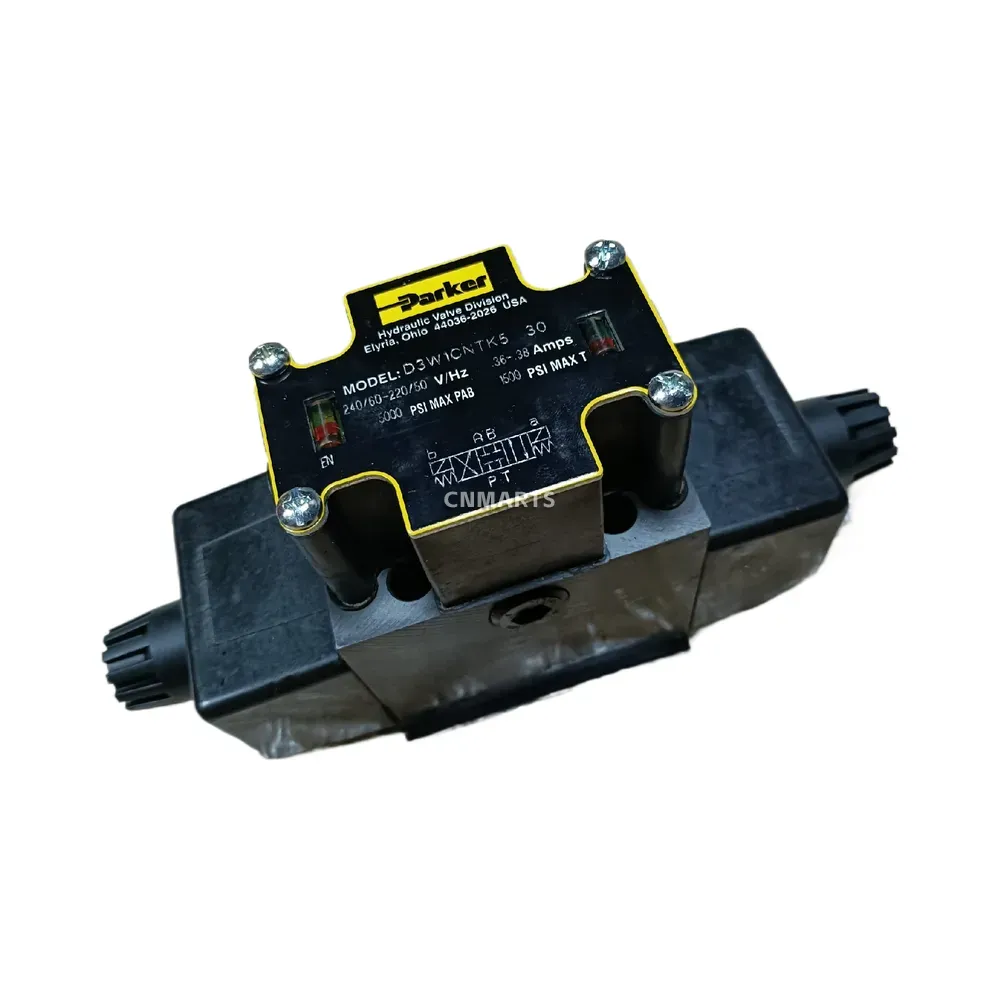

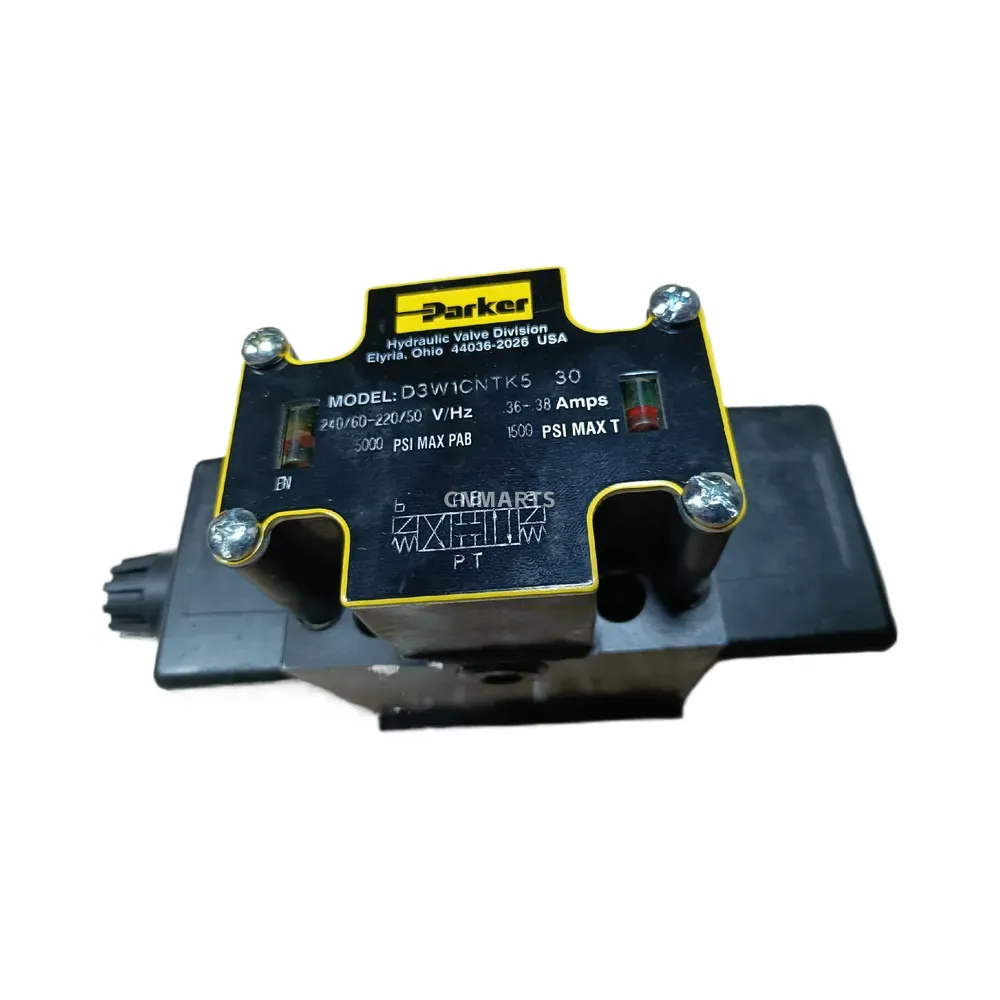

Parker D3W1CNTK5-30 Hydraulic Solenoid Directional Control Valve
The Parker D3W1CNTK5-30 is a high-performance, D3W series solenoid-operated directional control valve engineered for demanding industrial hydraulic applications. This 3-position, 4-way double solenoid valve features a spring-centered spool, ensuring precise and reliable fluid routing. Built for heavy-duty environments, it supports a maximum operating pressure of 5000 PSI on the P, A, and B ports, and up to 1500 PSI on the T port. The valve utilizes a standard subplate mounting interface for seamless integration into existing manifolds. For enhanced usability and maintenance, it comes fully equipped with solenoid indicator lights for quick diagnostic checks and manual override knobs on both solenoid tubes for manual operation during electrical outages. Powered by a robust 220/240 VAC coil, this Parker Hannifin valve guarantees exceptional durability and operational efficiency.
Technical Specifications:
- Brand: Parker Hannifin
- Model Number: D3W1CNTK5-30 (D3W1CNTK5 30)
- Valve Type: 3-Position, 4-Way Directional Control
- Actuation: Double Solenoid
- Spool Type: Spring-Centered
- Coil Voltage / Frequency: 240V/60Hz or 220V/50Hz AC
- Current Rating: 0.36 – 0.38 Amps
- Maximum Pressure (P, A, B Ports): 5000 PSI
- Maximum Pressure (T Port): 1500 PSI

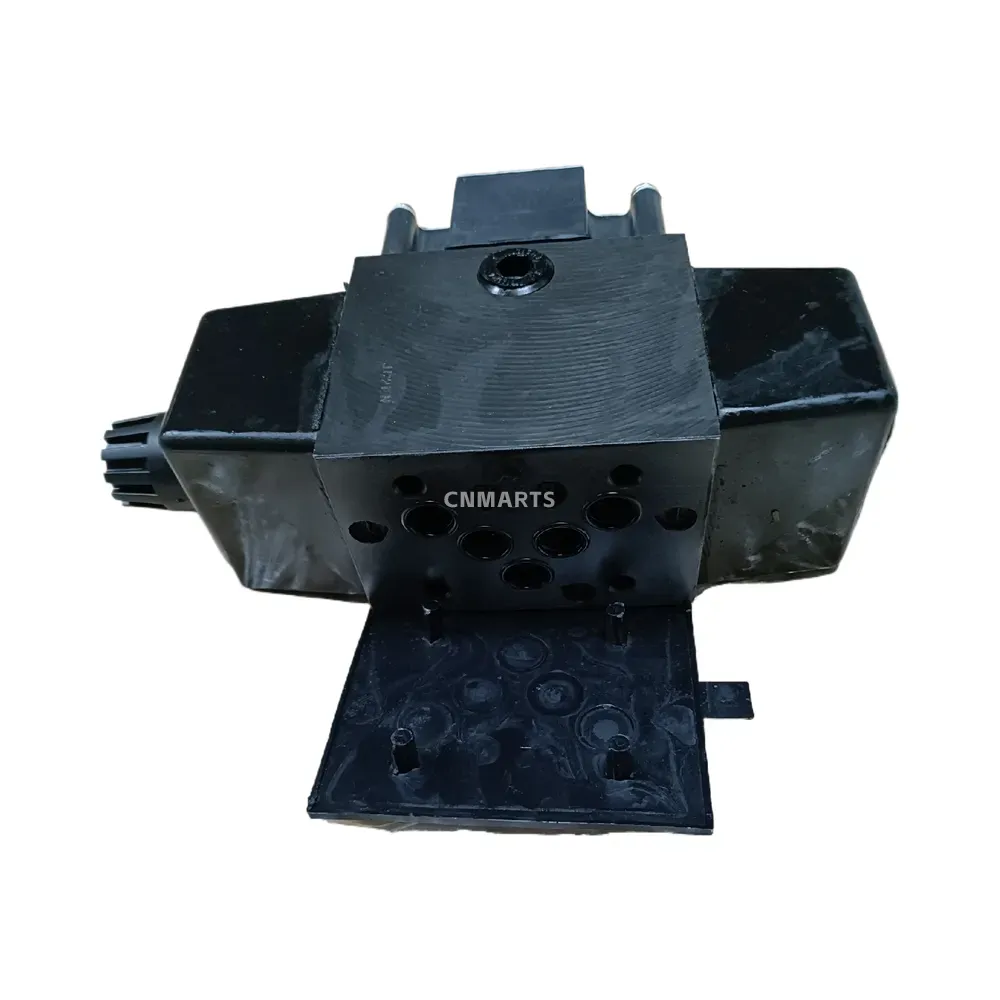

- Mounting Type: Subplate Mounting

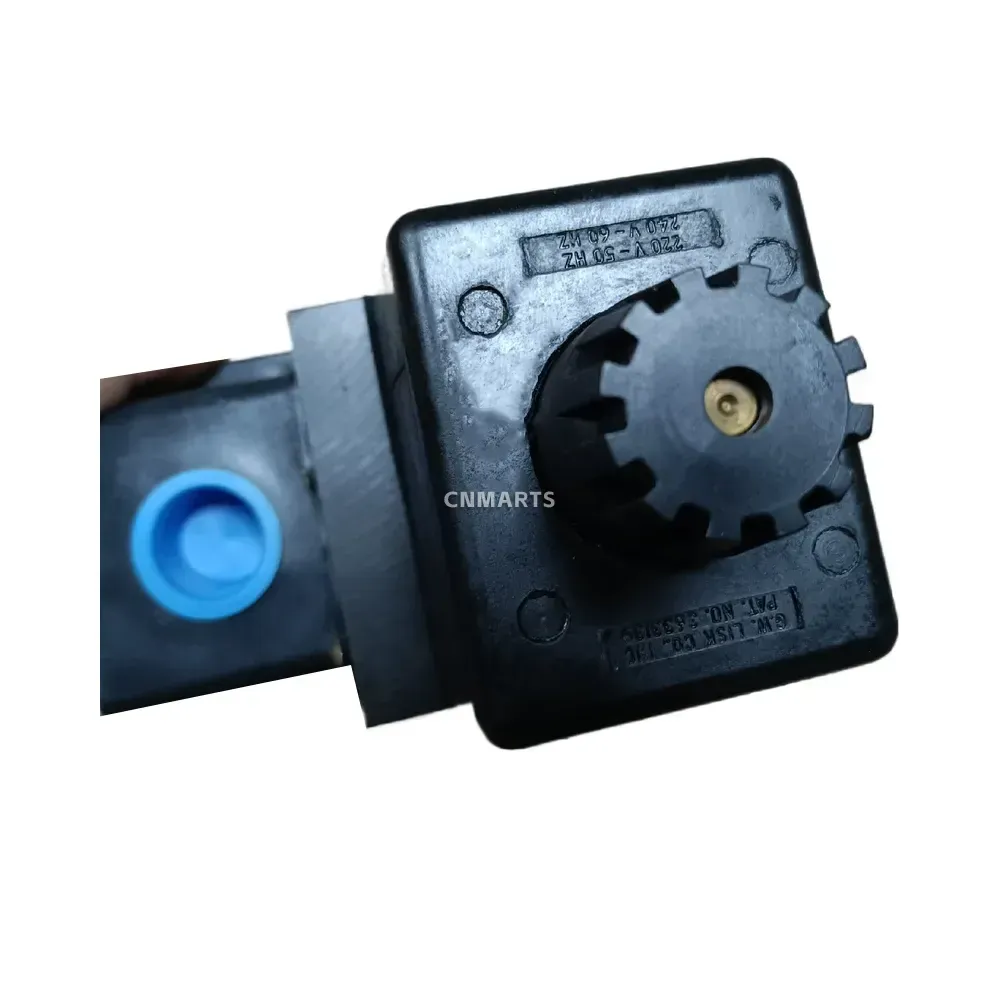

- Features: Solenoid indicator lights, manual override knobs
| Brand | Parker |
|---|---|
| Model | D3W1CNTK5-30 |
Only logged in customers who have purchased this product may leave a review.
Shipping policy
If you are buying multiple items, please contact us before checking out so we can get you the best combined rate for shipping.
Our default shipping rate is $100, which is enough to cover the cost of most shipments, but it is not our expected shipping rate. Due to the varying weights and sizes of products and customer locations, please contact us with your location and the products you are interested in to get the best current shipping rates.
ENERAL DELIVERY INFORMATION
Orders will be processed and shipping during standard working hours (0830 – 1700 GMT+8) Monday to Friday (excluding Bank Holidays)
On rare occasions, your order may be handled and/or processed on a Saturday. However, we are unable to ship items on weekends, therefore any orders dealt with on the weekend will be send out the next following working day.
The cut-off point for orders to be shipped the same day is 14:00 – please contact us to confirm stock levels before placing your order
Any orders placed after the cut-off will ship the next working day assuming all parts are in stock and ready for dispatch.
All orders:
- must be paid for in full before any goods are dispatched
- require a signature upon delivery. Please ensure delivery can be made to an address where someone will be available to sign for the delivery
- are packaged with great care, ensuring your order and the contents it contains, makes it safely through the delivery network
Parker D3W1CNTK5-30 Hydraulic Solenoid Directional Control Valve
Optimize your industrial fluid power system with the Parker D3W1CNTK5-30 Hydraulic Solenoid Directional Control Valve. This heavy-duty 3-position, 4-way double solenoid valve features a spring-centered spool, 220/240V AC coil, and handles pressures up to 5000 PSI. Built for reliability and easy subplate mounting.
