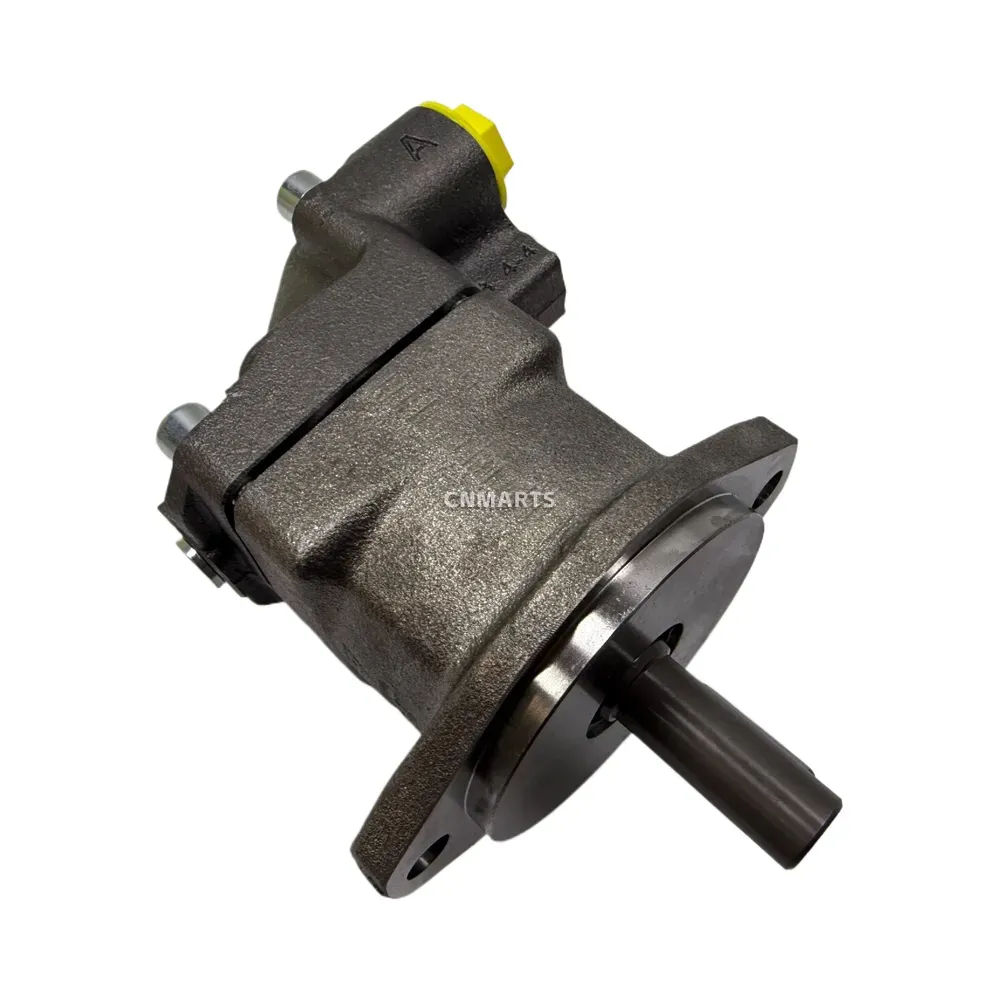

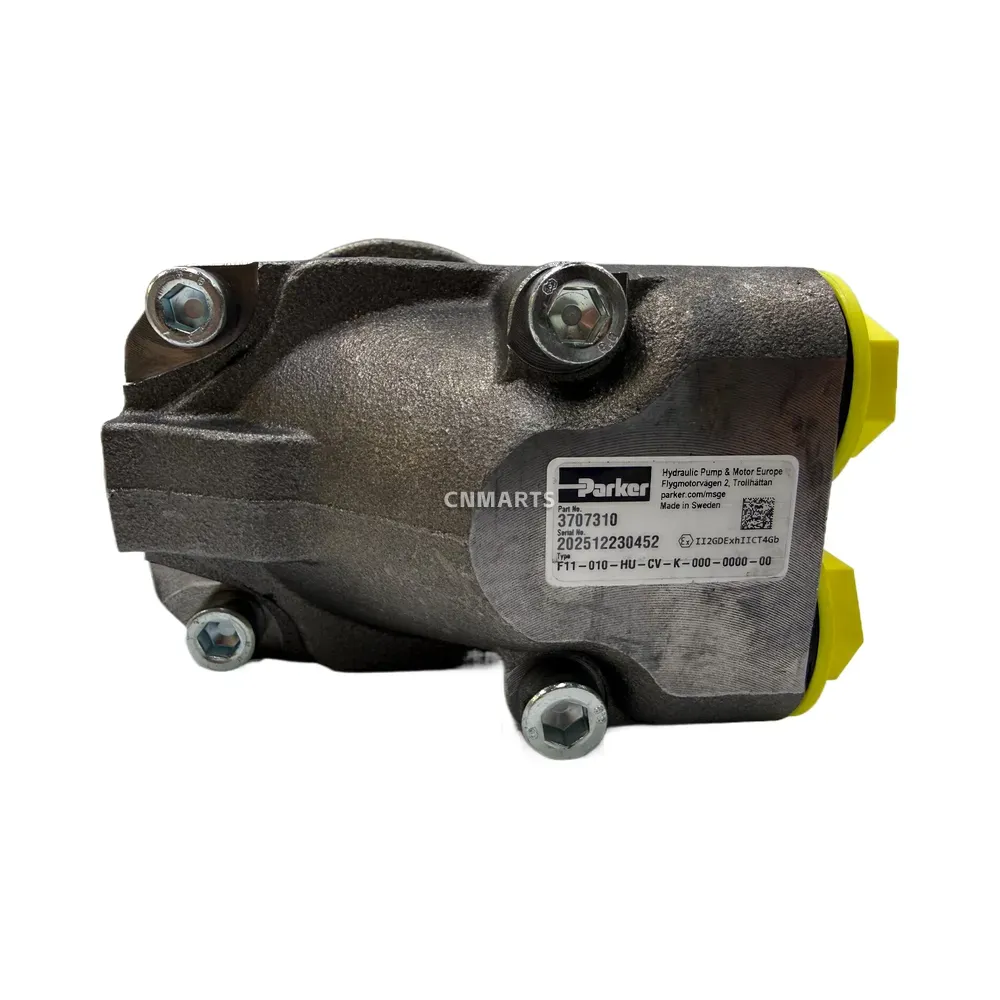

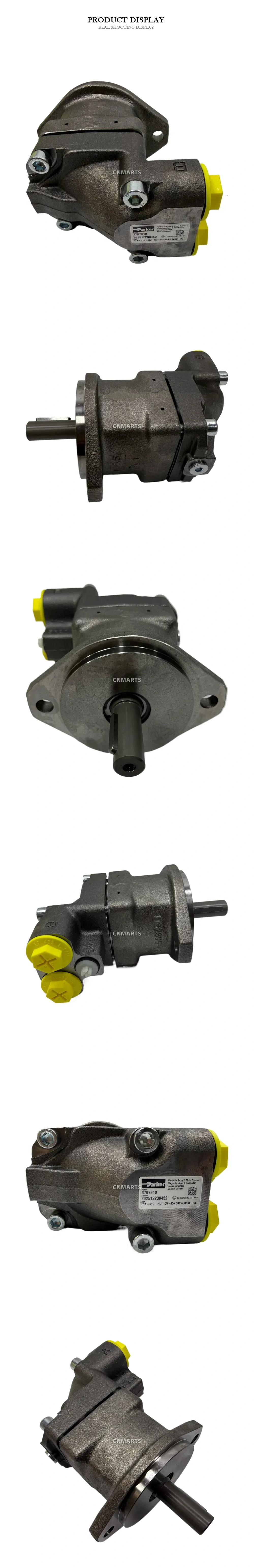

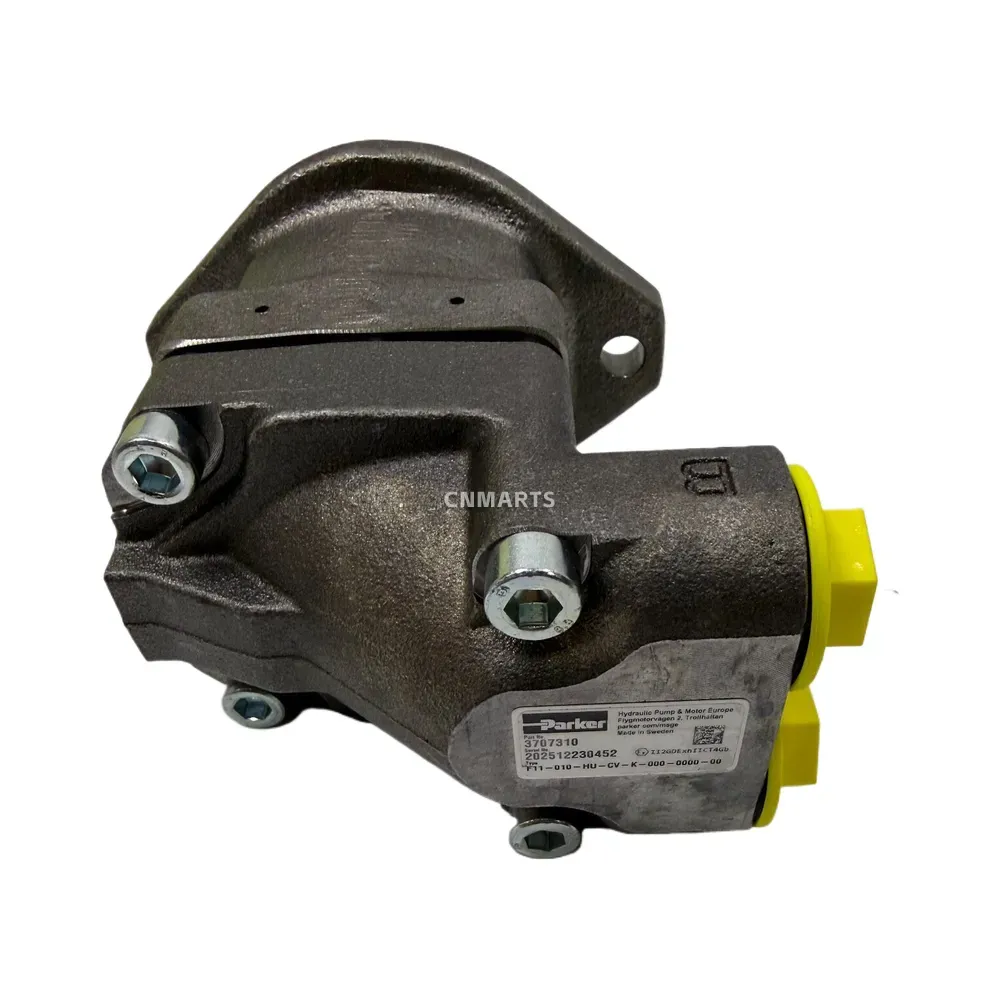

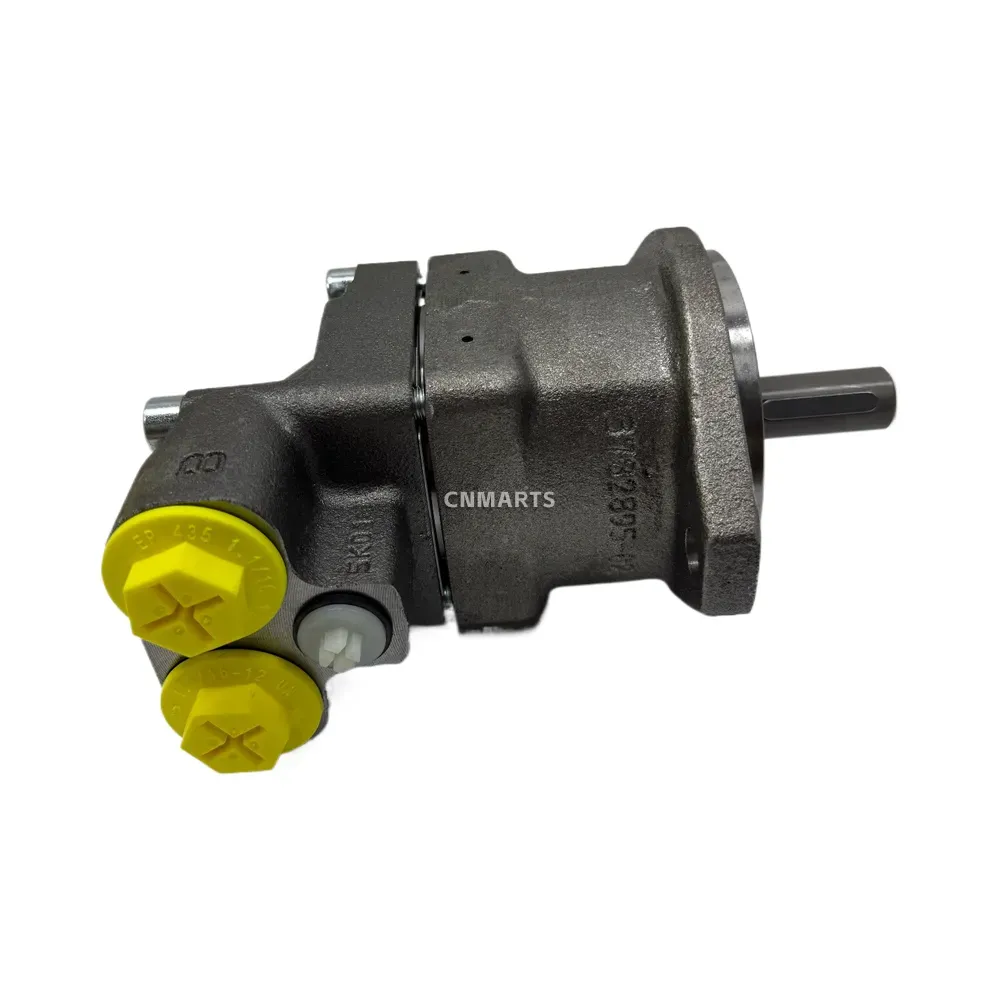

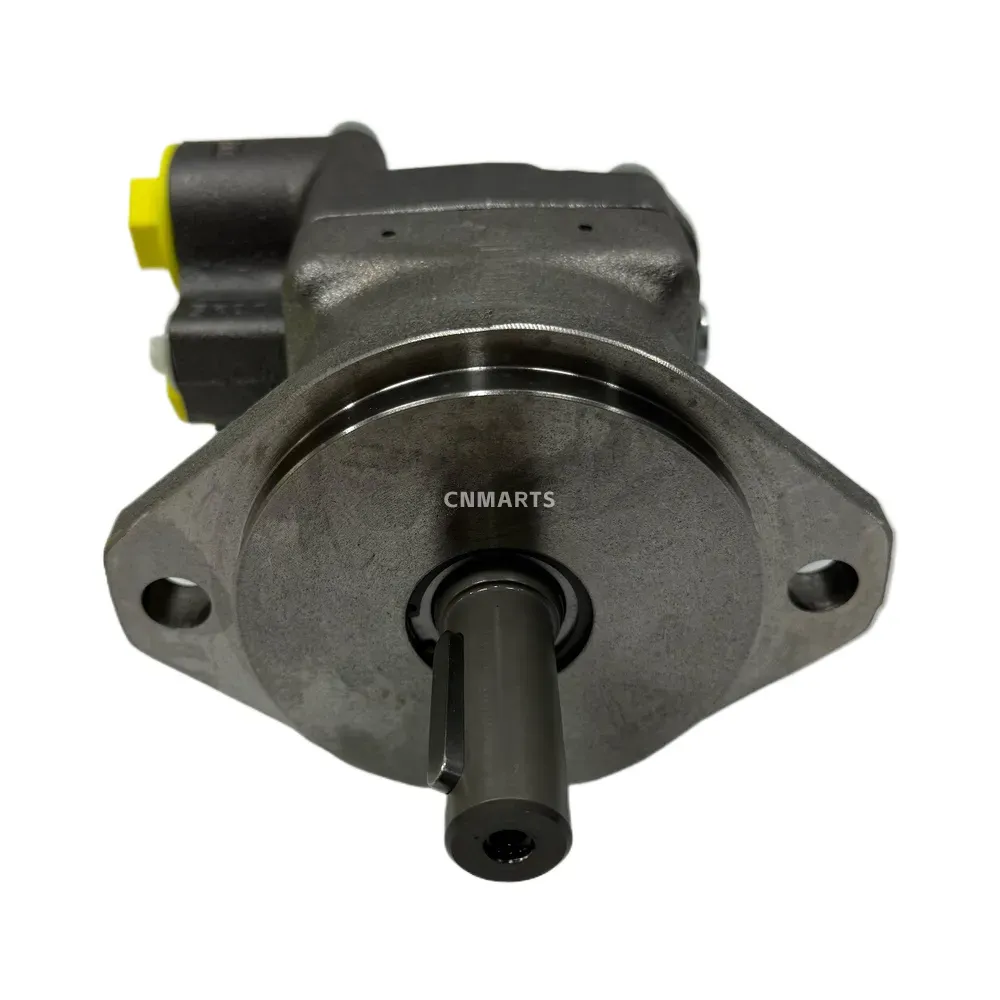

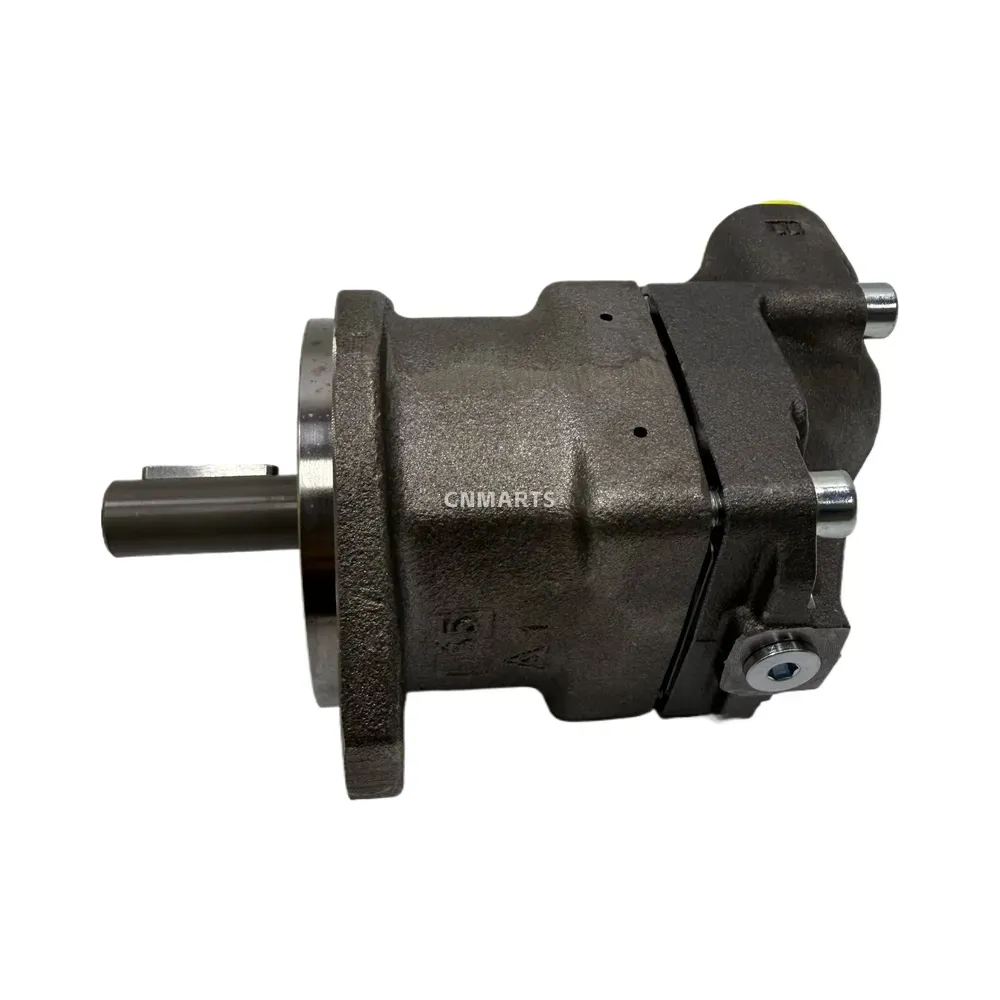

Parker F11-010-HU-CV-K-000-0000-00 Hydraulic Motor
Order the genuine Parker F11-010-HU-CV-K-000-0000-00 (Part No. 3707310), a high-speed 10cc fixed displacement bent-axis hydraulic motor. Features a keyed shaft, SAE-A mount, and G 3/4″ ports. Ideal for demanding open and closed-loop applications.
Payment Methods:
-
Online Support 24/7
-
12 Months Warranty for New Products
-
30 Days Money Back Guarantee
Parker F11-010-HU-CV-K-000-0000-00 Hydraulic Motor
The Parker F11-010-HU-CV-K-000-0000-00 is a high-performance, fixed displacement bent-axis hydraulic motor designed for reliability in demanding mobile and industrial applications. As part of the renowned F11 series, this motor features a unique spherical piston design, laminated piston rings, and a robust timing gear, delivering exceptional efficiency and a high power-to-weight ratio. Its 40° bent-axis angle allows for very high shaft speeds while maintaining low noise levels and minimal power loss. This specific model is configured with a keyed drive shaft and an SAE mounting flange, making it suitable for a wide range of open and closed-loop circuit systems where high speed and efficiency are critical.
Technical Specifications:
- Displacement: 10.1 cm³/rev (0.62 in³/rev)
- Maximum Continuous Pressure: 350 bar (5000 psi)
- Maximum Intermittent Pressure: 420 bar (6000 psi)
- Maximum Continuous Speed: 5800 rpm
- Mounting Flange: SAE-A, 2-Bolt
- Shaft Type: Keyed, SAE 7/8 in
- Ports: G 3/4″ (ISO 228-1)
- Part Number: 3707310
| Brand | Parker |
|---|---|
| Model | F11-010-HU-CV-K-000-0000-00 |
