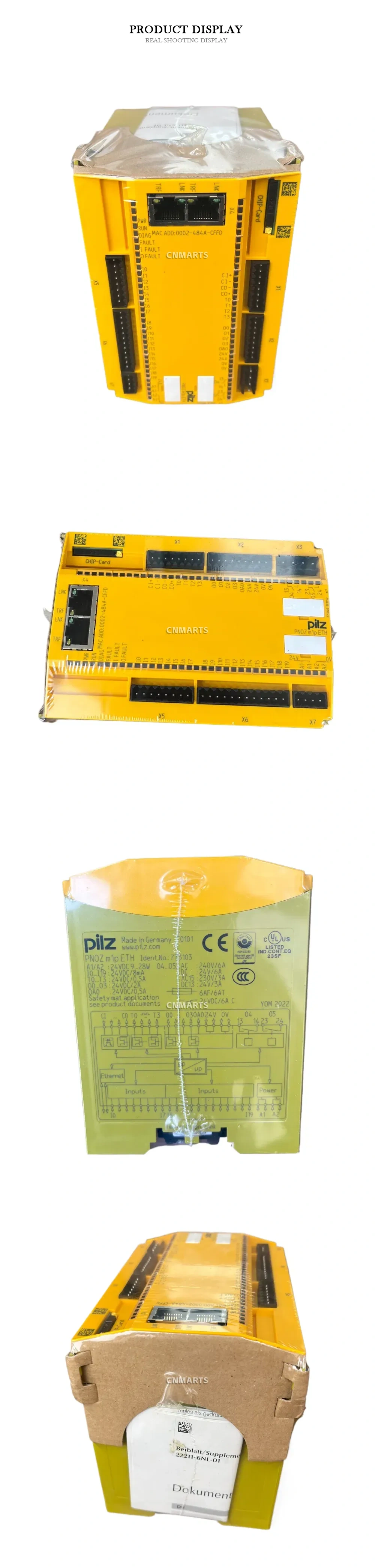

Pilz PNOZ m1p ETH Safety Controller
The Pilz PNOZmulti PNOZ m1p ETH (Ident. No. 773103) is a highly reliable, configurable safety controller designed to monitor multiple safety functions in complex industrial automation environments. Manufactured in Germany, this robust base unit features an integrated Ethernet interface for seamless network communication and diagnostics, along with a CHIP-Card slot for easy configuration storage and rapid device replacement. It is comprehensively equipped with 20 safe inputs, 4 safe transistor outputs, standard auxiliary transistor outputs, and heavy-duty relay outputs to accommodate a wide array of machine safety applications, including specialized safety mat monitoring. Backed by CE, cULus, and CCC certifications, the PNOZ m1p ETH guarantees strict compliance with international industrial safety standards.
Technical Specifications:
- Brand: Pilz
- Model: PNOZ m1p ETH (Ident. No. 773103)
- Power Supply (A1/A2): 24 VDC, 9…28 W
- Safe Inputs (I0…I19): 20 Inputs (24 VDC / 8 mA)
- Safe Transistor Outputs (T0…T3): 4 Outputs (24 VDC / 0.5 A)
- Standard Transistor Outputs (O0…O3): 4 Outputs (24 VDC / 2 A)
- Auxiliary Transistor Output (OA0): 1 Output (24 VDC / 0.5 A)
- Relay Outputs (04…05): AC 240V/6A, DC 24V/6A, AC15 230V/3A, DC13 24V/3A
- Communication Interface: Ethernet
- Applications: Suitable for safety mat applications
- Approvals: CE, cULus LISTED (IND.CONT.EQ 23SF), CCC
- Country of Origin: Made in Germany
| Brand | Pilz |
|---|---|
| Model | PNOZ m1p ETH |
