PR electronics 4131 Universal Trip Amplifier
Discover the PR electronics 4131 universal trip amplifier with dual relay outputs. This DIN rail module features universal inputs (TC, V, mA, Ohm) and is certified for hazardous locations, providing reliable process monitoring and control.
Payment Methods:
-
Online Support 24/7
-
12 Months Warranty for New Products
-
30 Days Money Back Guarantee

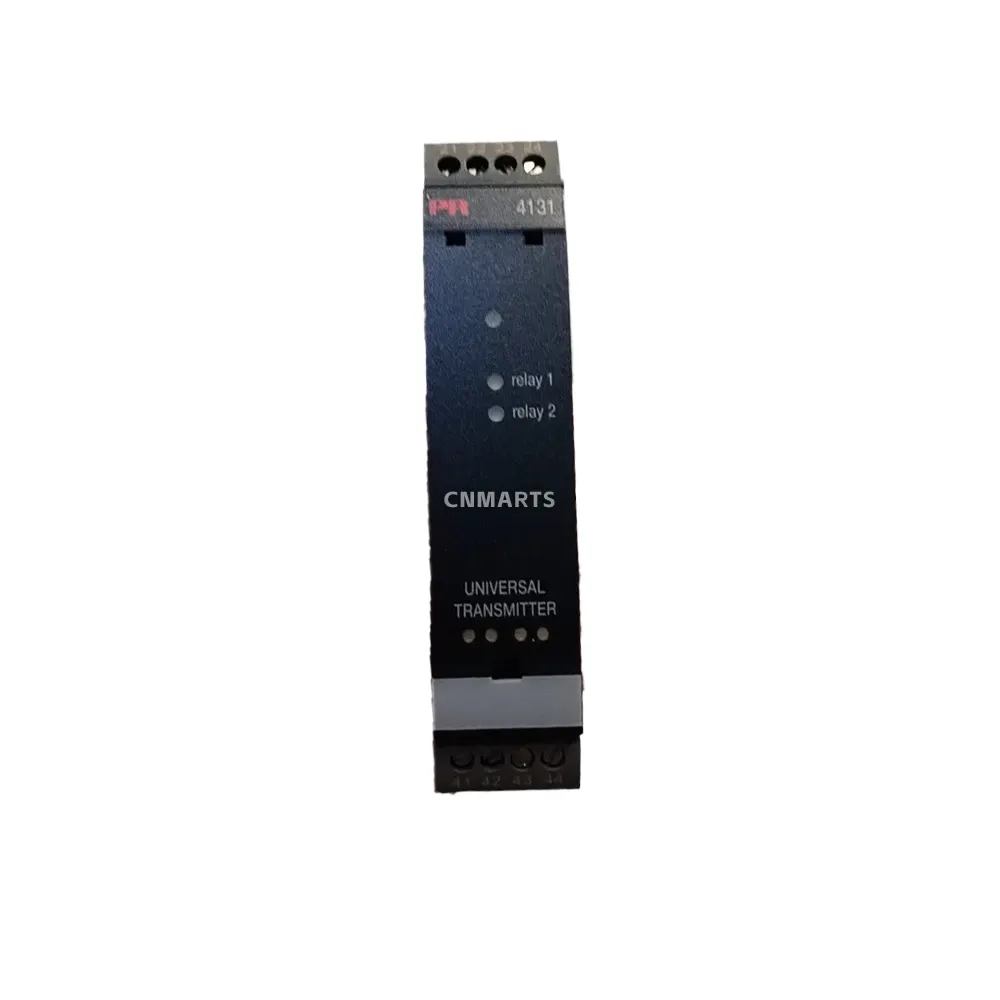

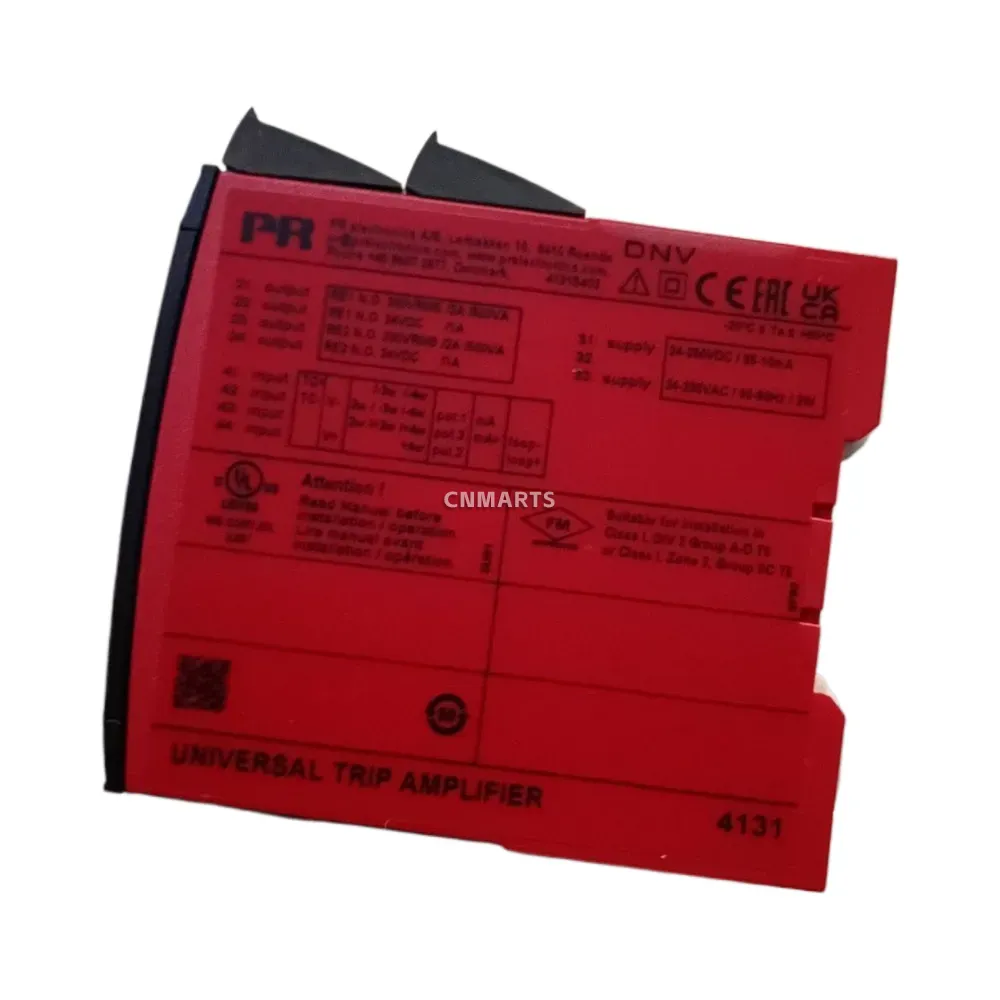

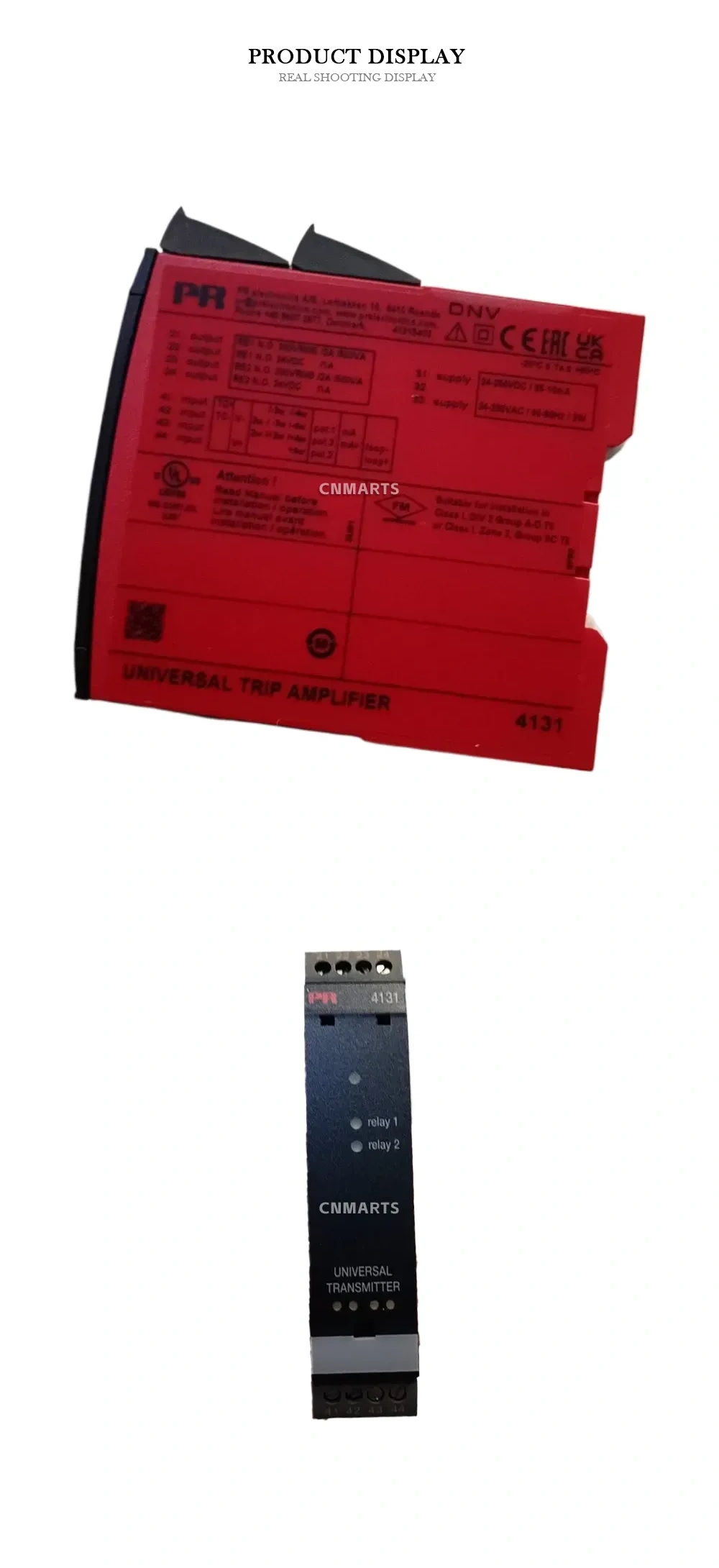

PR electronics 4131 Universal Trip Amplifier
The PR electronics 4131 is a high-performance universal trip amplifier designed for exceptional flexibility and reliability in industrial process control. It accepts a wide range of inputs, including thermocouple (TC), voltage (V), current (mA), potentiometer, and resistance (Ohm) signals, making it a versatile solution for various monitoring applications. Equipped with two independent relay outputs, the 4131 provides reliable trip or alarm functions for controlling critical process parameters. Its robust design, wide operating temperature range, and approvals for hazardous locations (Class I, Div 2 / Zone 2) make it an ideal choice for demanding environments. This DIN rail mountable module ensures easy installation and integration into standard control cabinets.
Technical Specifications:
- Power Supply: Universal 24-250 VDC / 24-230 VAC (50/60 Hz)
- Input Type: Universal (Thermocouple, V, mA, Potentiometer, Ohm)
- Output Type: 2 x SPDT Relay Outputs (250 VAC / 2 A)
- Approvals: FM (Class I, Div 2, Group A-D T6 / Class I, Zone 2, Group IIC T6), DNV, CE, EAC, UKCA
- Operating Temperature: -20°C to +60°C
- Mounting: DIN Rail
| Brand | PR electronics |
|---|---|
| Model | 4131 |
