Printed Circuit Board (PCB) Assembly
A reliable through-hole PCB assembly featuring dual TC4011BP NAND gate ICs, designed for custom digital logic applications. Fully populated with resistors, diodes, and transistors.
Payment Methods:
-
Online Support 24/7
-
12 Months Warranty for New Products
-
30 Days Money Back Guarantee
Printed Circuit Board (PCB) Assembly

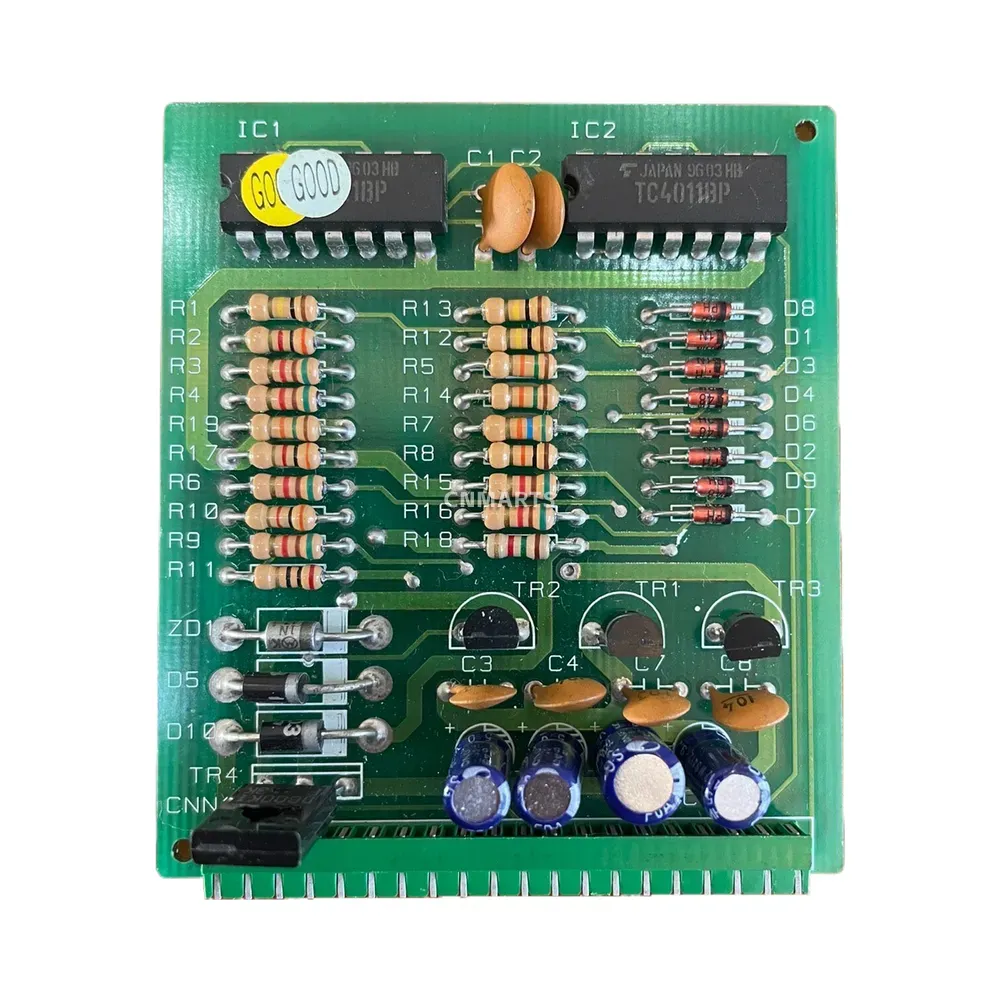

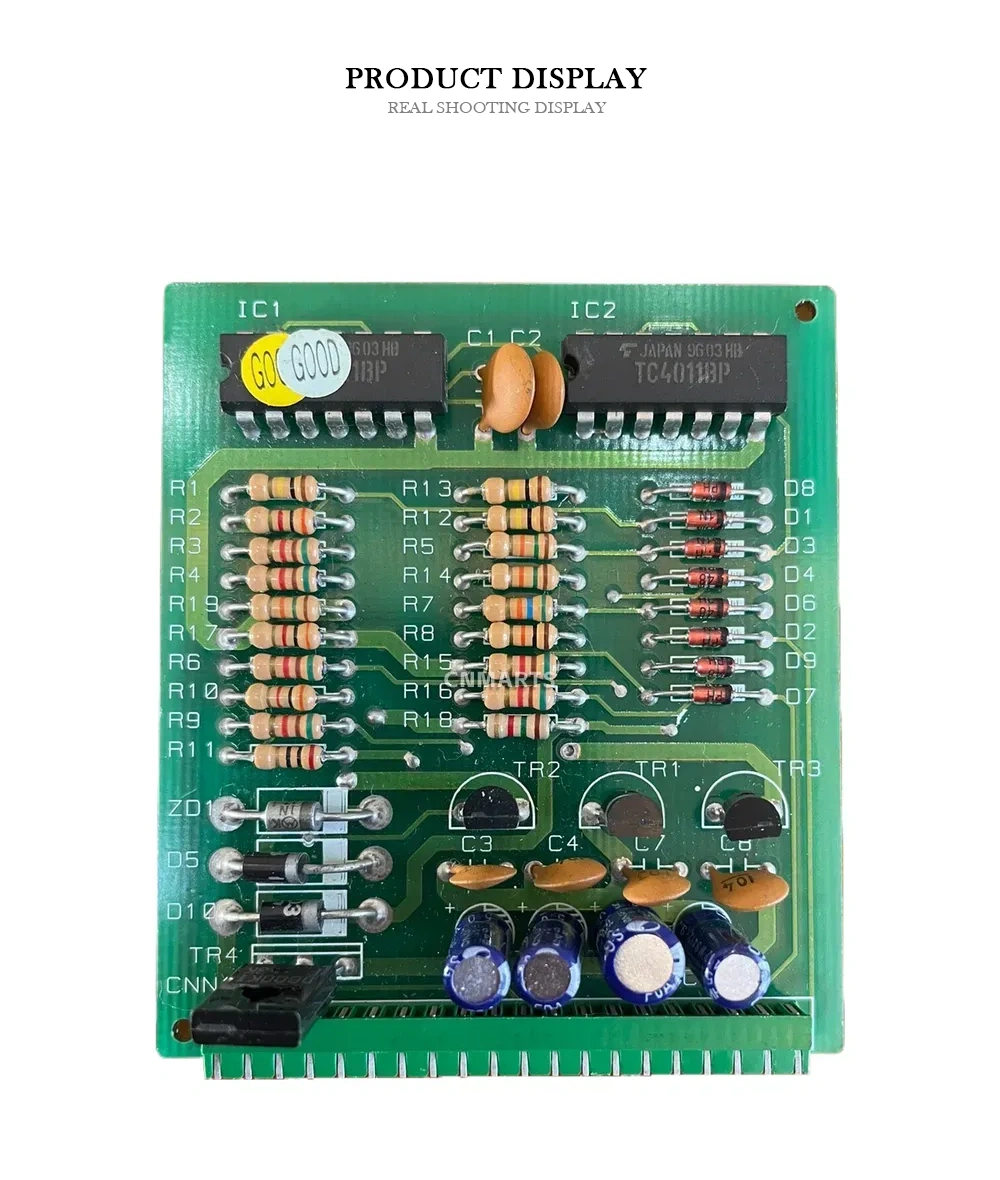

This is a fully populated Printed Circuit Board (PCB) Assembly, expertly crafted for digital logic applications. The board is built using reliable Through-Hole Technology (THT), ensuring robust connections and ease of service. At its core are two Toshiba TC4011BP integrated circuits, each providing four 2-input NAND gates for versatile logic operations. The circuit is supported by a comprehensive array of passive and active components, including numerous axial resistors, signal and Zener diodes, transistors in TO-92 packages, and both ceramic and electrolytic capacitors for stable performance. A multi-pin header provides a standard interface for system integration, making this board a dependable component for custom electronic projects or equipment repair.
Technical Specifications:
- Board Type: Populated Printed Circuit Board (PCB) Assembly
- Mounting Technology: Through-Hole Technology (THT)
- Primary Integrated Circuits: 2x TC4011BP (Quad 2-Input NAND Gate)
- Active Components: 4x Transistors (TO-92), 10x Signal Diodes, 1x Zener Diode
- Passive Components: 19x Axial Resistors, Ceramic Disc Capacitors, Radial Electrolytic Capacitors
- Connectivity: Bottom-edge Pin Header Connector
