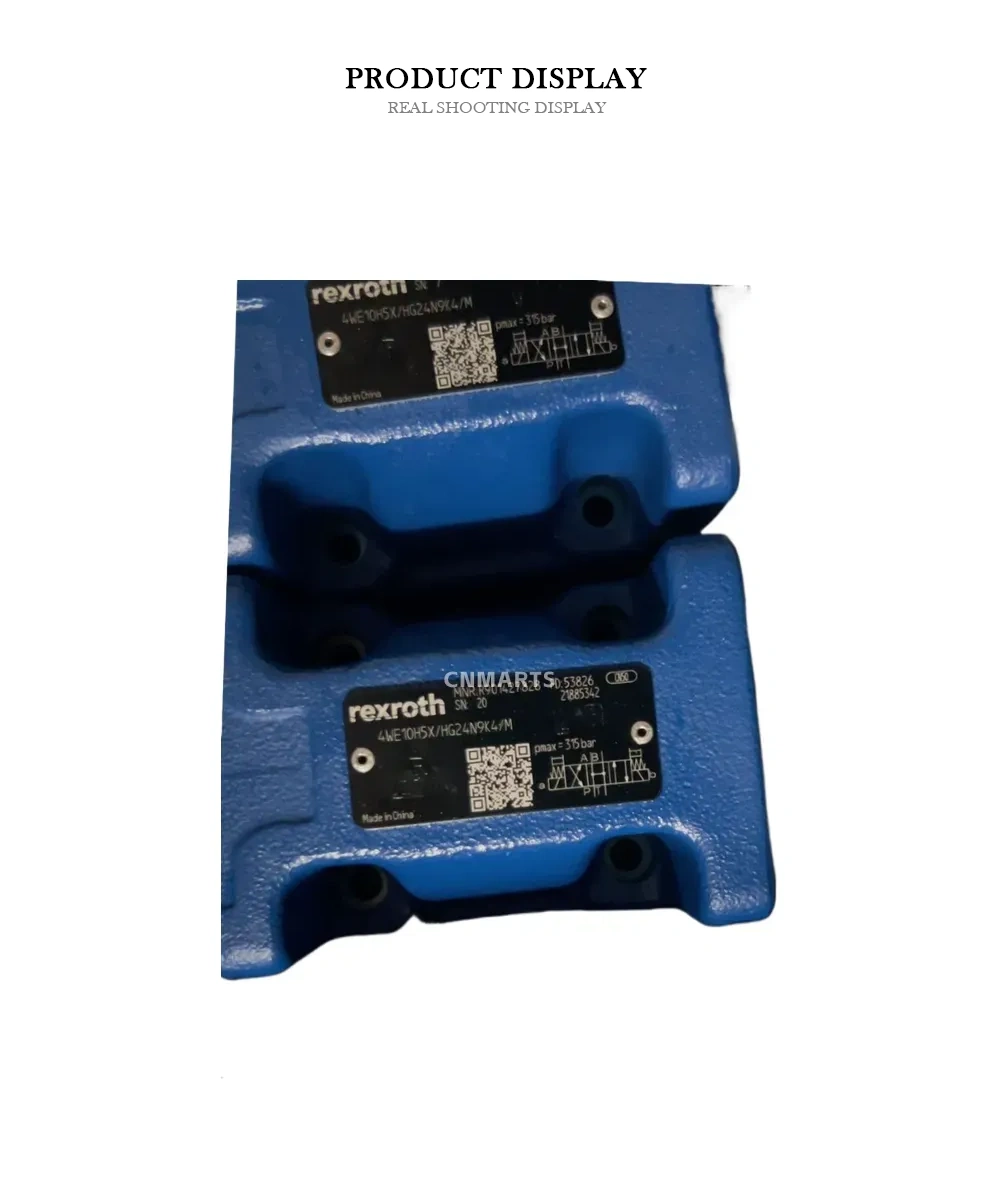

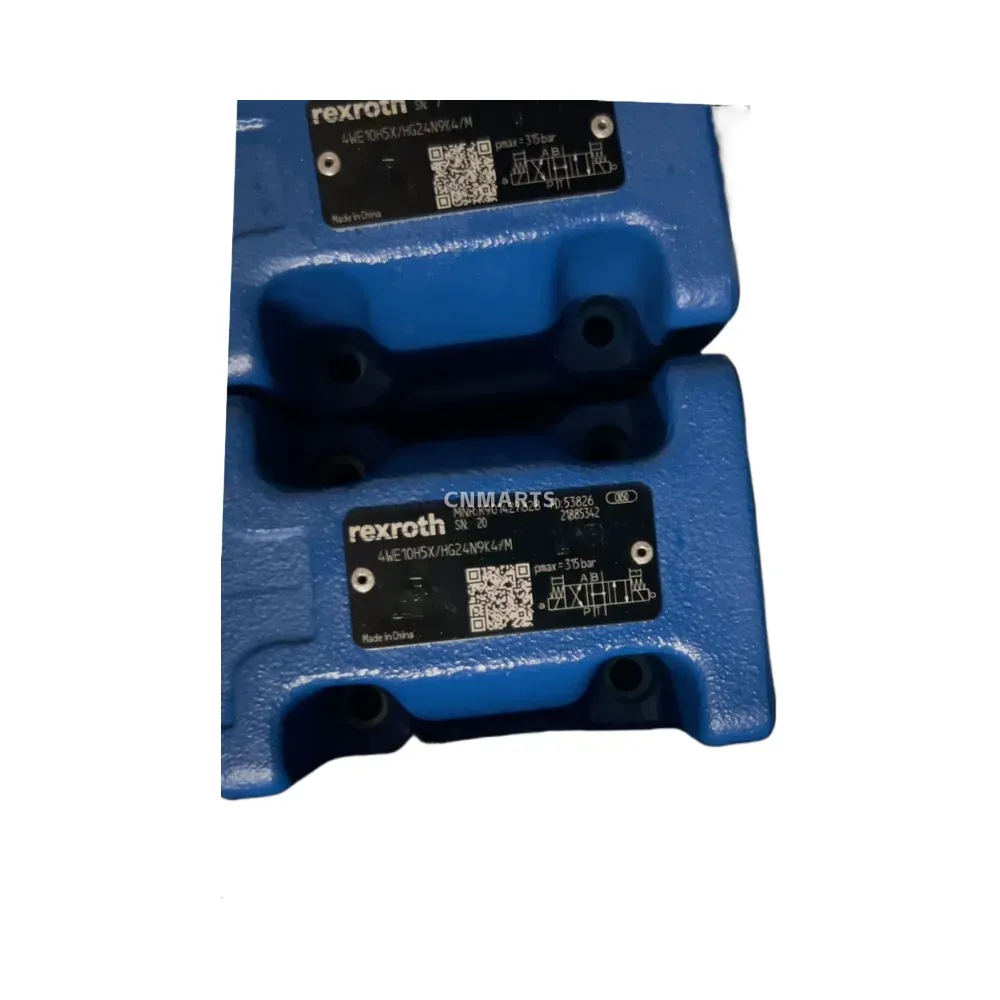

Rexroth 4WE10H5X/HG24N9K4/M Hydraulic Directional Control Valve
The Rexroth 4WE10H5X/HG24N9K4/M is a high-performance, solenoid-actuated directional spool valve designed for reliable control in hydraulic systems. As a direct-operated valve, it precisely manages the start, stop, and direction of fluid flow. This model features a size 10 (NG10) mounting pattern according to ISO 4401 standards, ensuring interchangeability and ease of integration. Built for demanding applications, it operates at a maximum pressure of 315 bar. The 24V DC wet-pin solenoids provide powerful and consistent shifting, while the concealed manual override allows for operation during power loss or for system setup. This valve is a robust solution for industrial machinery, manufacturing equipment, and mobile hydraulics.
Technical Specifications:
- Model: 4WE10H5X/HG24N9K4/M
- Material Number (MNR): R901427828
- Valve Type: Direct-operated directional spool valve with solenoid actuation
- Size: NG10 (Size 10)
- Mounting Pattern: ISO 4401-05-04-0-05
- Spool Symbol: H (P → T; A, B blocked in neutral position)
- Maximum Operating Pressure: 315 bar (210 bar at port T)
- Maximum Flow Rate: 120 L/min
- Solenoid Voltage: 24V DC
- Electrical Connection: K4 – Individual connection to DIN EN 175301-803 (mating connector sold separately)
- Features: With concealed manual override (N9)
| Brand | Rexroth |
|---|---|
| Model | 4WE10H5X/HG24N9K4/M |
