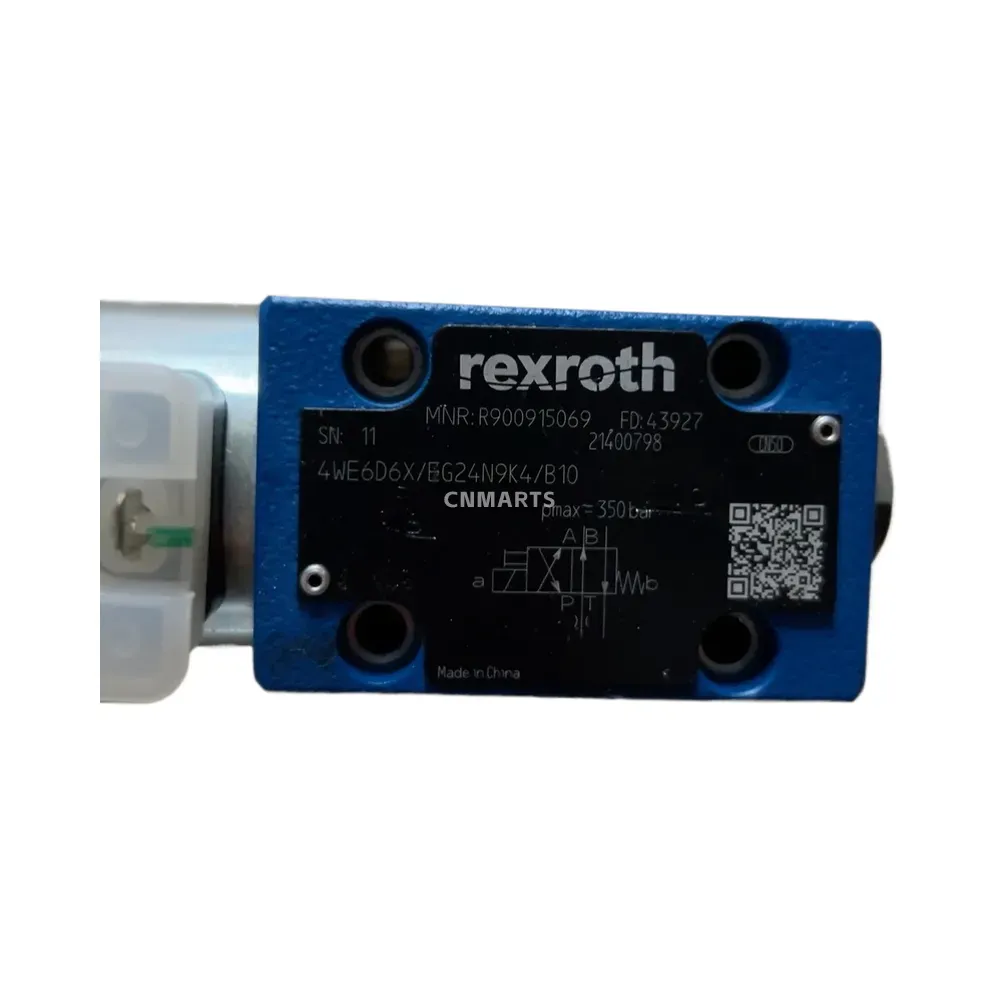

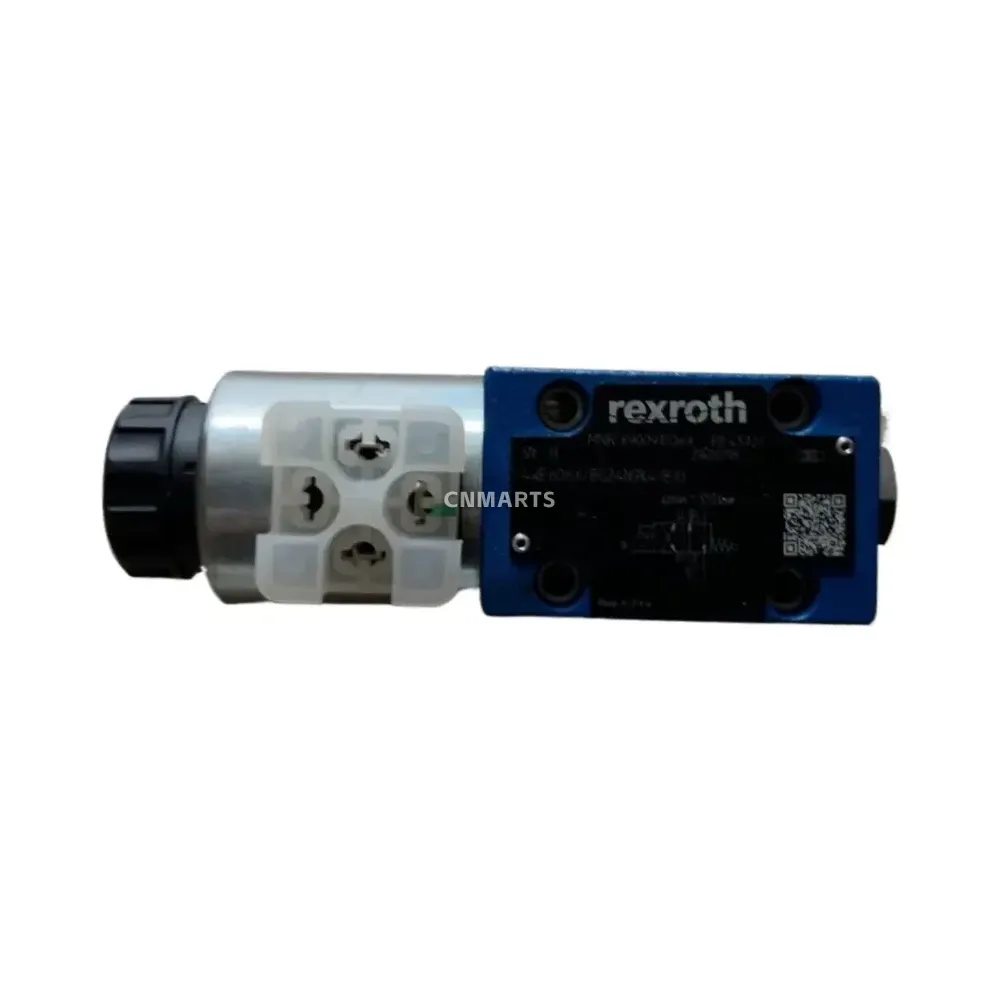

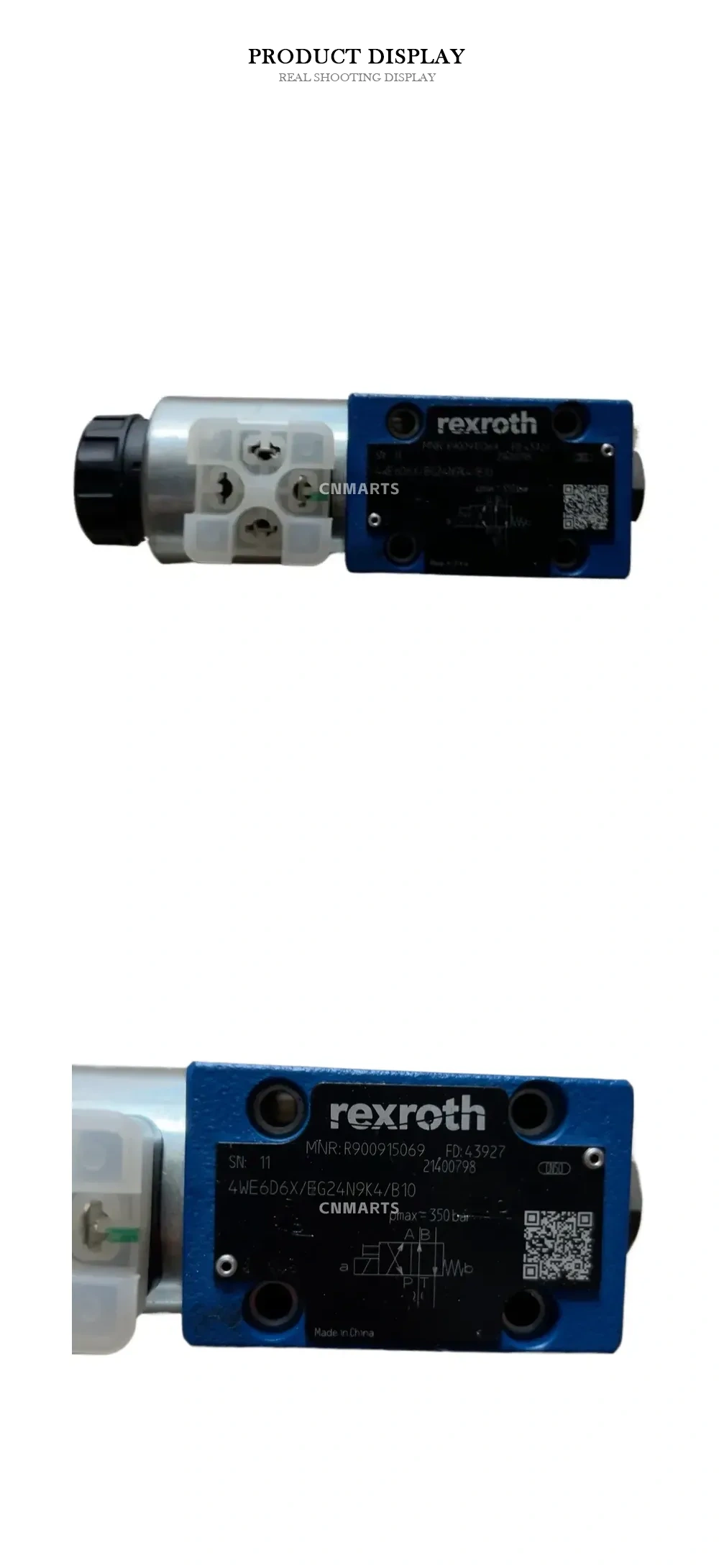

Rexroth 4WE6D6X/EG24N9K4/B10 Directional Control Valve
The Rexroth 4WE6D6X/EG24N9K4/B10 is a high-performance, solenoid-actuated directional spool valve designed for reliable control of hydraulic fluid flow. As part of the globally recognized WE6 series, this size 6 (NG6) valve conforms to CETOP 3 and ISO 4401 mounting standards, ensuring easy integration into new and existing hydraulic systems. This 4/3-way valve features a ‘D’ spool symbol, indicating a closed-center configuration in the neutral position, which blocks all ports. It is operated by two powerful 24V DC wet-pin solenoids for smooth and quiet shifting. This specific model includes a concealed manual override (N9) for emergency operation or system setup, and a B10 throttle insert in the P-port to control flow speed. Engineered for demanding industrial applications, it offers a maximum operating pressure of 350 bar.
Technical Specifications:
- Model: 4WE6D6X/EG24N9K4/B10
- Brand: Rexroth
- Valve Type: 4/3-Way Solenoid Directional Spool Valve
- Size: NG6 (CETOP 3 / ISO 4401-03)
- Max. Operating Pressure: 350 bar (5075 PSI)
- Max. Flow Rate: 80 L/min (21 GPM)
- Spool Symbol: D (Closed Center)
- Solenoid Voltage: 24V DC
- Electrical Connection: K4 (Connector to DIN EN 175301-803)
- Manual Override: Concealed (N9)
- Additional Feature: Throttle insert Ø 1.0 mm in port P (B10)
- Material Number (MNR): R900915069
| Brand | Rexroth |
|---|---|
| Model | 4WE6D6X/EG24N9K4/B10 |
