Rexroth 4WREE10W75-3X/V/24F1 Proportional Directional Valve
Order the Rexroth 4WREE10W75-3X/V/24F1, a high-response NG10 direct operated proportional directional valve. Features integrated electronics (OBE), electrical position feedback, and a max pressure of 350 bar for precise hydraulic control.
Payment Methods:
-
Online Support 24/7
-
12 Months Warranty for New Products
-
30 Days Money Back Guarantee

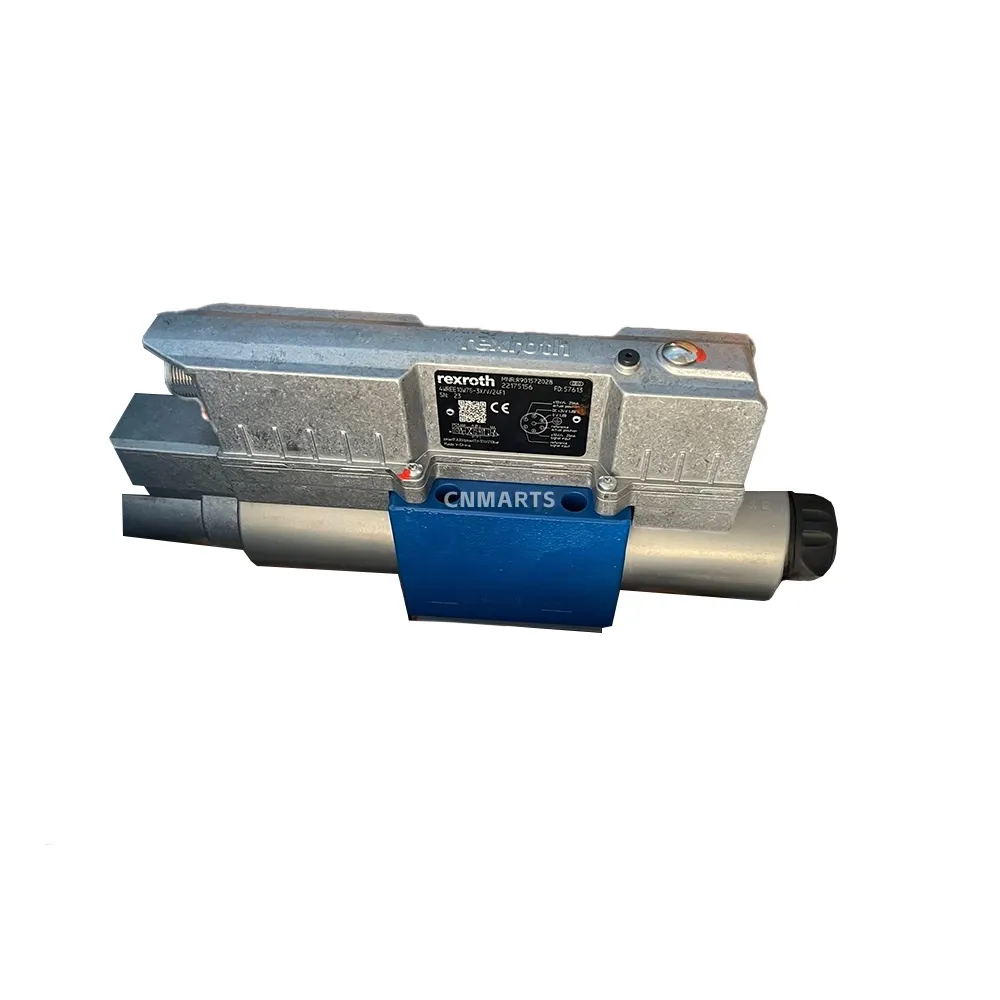

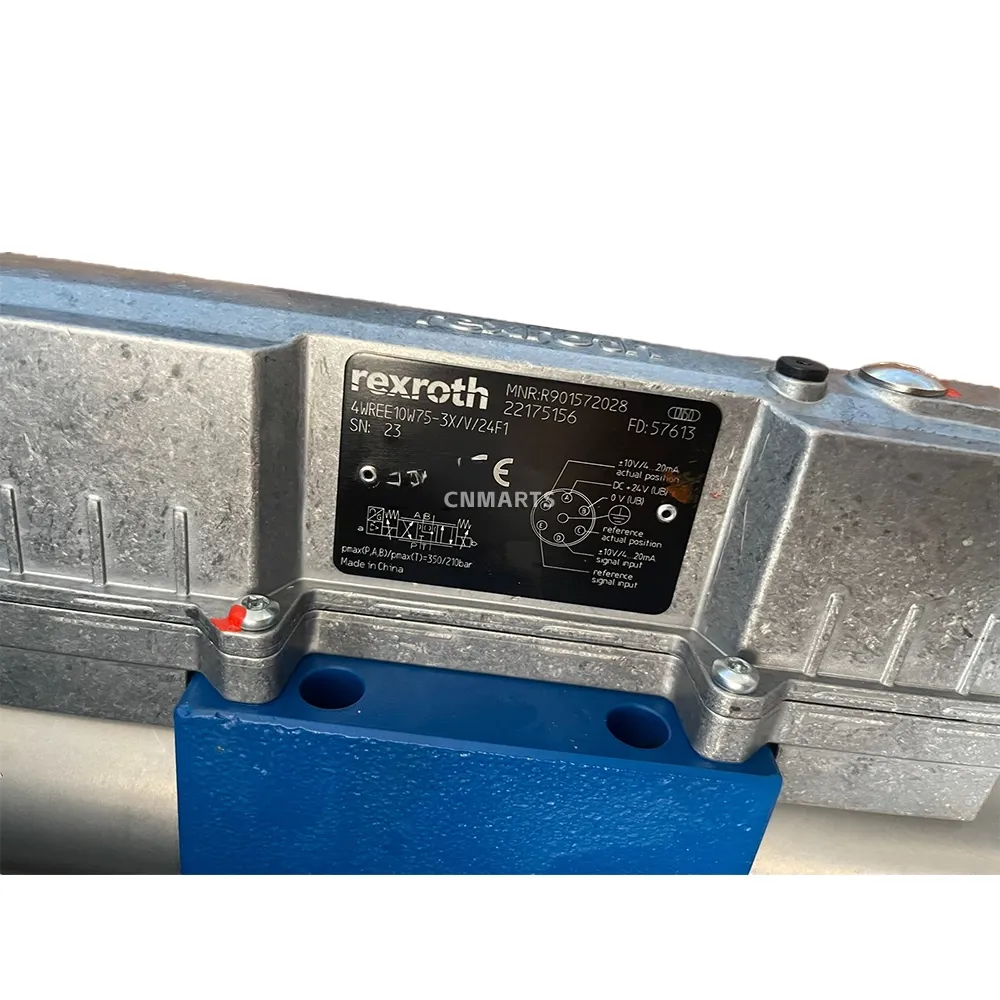

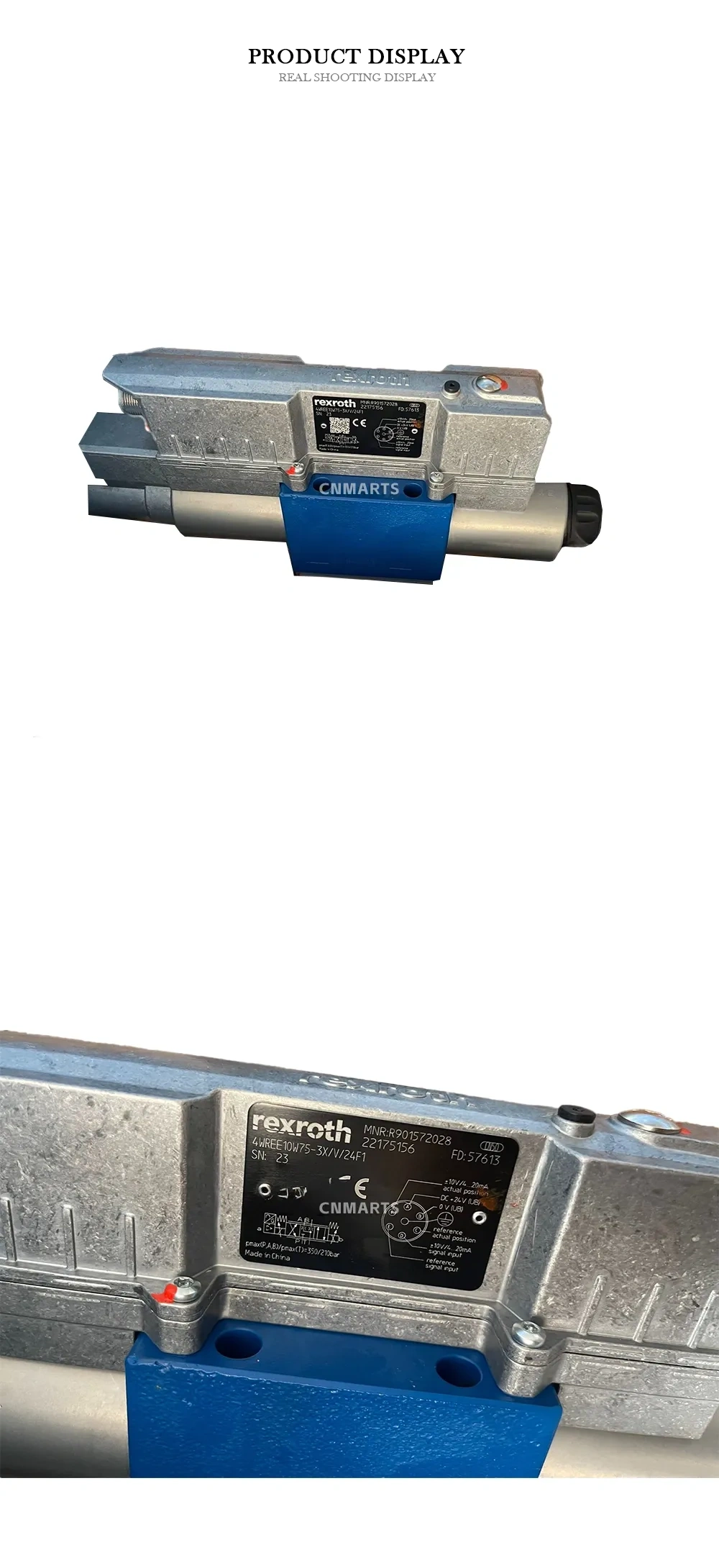

Rexroth 4WREE10W75-3X/V/24F1 Proportional Directional Valve
The Rexroth 4WREE10W75-3X/V/24F1 is a high-performance, direct operated proportional directional valve designed for precise control of fluid direction and flow in hydraulic systems. This NG10 valve features integrated on-board electronics (OBE) and electrical position feedback of the control spool, ensuring exceptional accuracy and repeatability. Its robust design allows for a maximum operating pressure of 350 bar, making it suitable for demanding industrial applications. The valve is easily integrated into modern control systems, accepting standard analog command signals (±10V or 4-20mA) and providing an actual position feedback signal for closed-loop control.
Technical Specifications:
- Model: 4WREE10W75-3X/V/24F1
- Type: Direct operated proportional directional valve with position feedback and integrated electronics (OBE)
- Nominal Size: NG10 (CETOP 5)
- Mounting Pattern: ISO 4401-05-04-0-05
- Maximum Operating Pressure: Ports P, A, B: 350 bar; Port T: 210 bar
- Nominal Flow Rate: 75 L/min (at 10 bar pressure drop)
- Power Supply: 24V DC
- Control Signal Input: ±10V or 4…20mA
- Seal Material: FKM (Viton)
| Brand | Rexroth |
|---|---|
| Model | 4WREE10W75-3X/V/24F1 |
