Schneider Electric LC1D80 AC Contactor
The Schneider Electric LC1D80 is a highly reliable 3-pole AC contactor from the industry-leading TeSys D series, specifically engineered for demanding motor control and power switching applications. Operating with a rated current of 80A (AC-3) and powered by a 220V AC 50/60Hz coil, this contactor ensures optimal performance and longevity in industrial environments. It comes fully equipped with 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts (13-14 NO, 21-22 NC) for seamless integration into complex control signaling systems. Designed with user convenience and safety in mind, the LC1D80 features clearly marked main power terminals (1 L1, 3 L2, 5 L3 for line and 2 T1, 4 T2, 6 T3 for load), secure screw-type connections, and versatile mounting options for either standard DIN rail or direct panel installation via a sturdy metal back plate.
Technical Specifications:
- Brand: Schneider Electric
- Model: LC1D80 (TeSys D Series)
- Number of Poles: 3-Pole
- Rated Operational Current: 80A (AC-3)
- Coil Voltage: 220V AC 50/60Hz
- Auxiliary Contacts: 1 NO + 1 NC (13-14 NO, 21-22 NC)

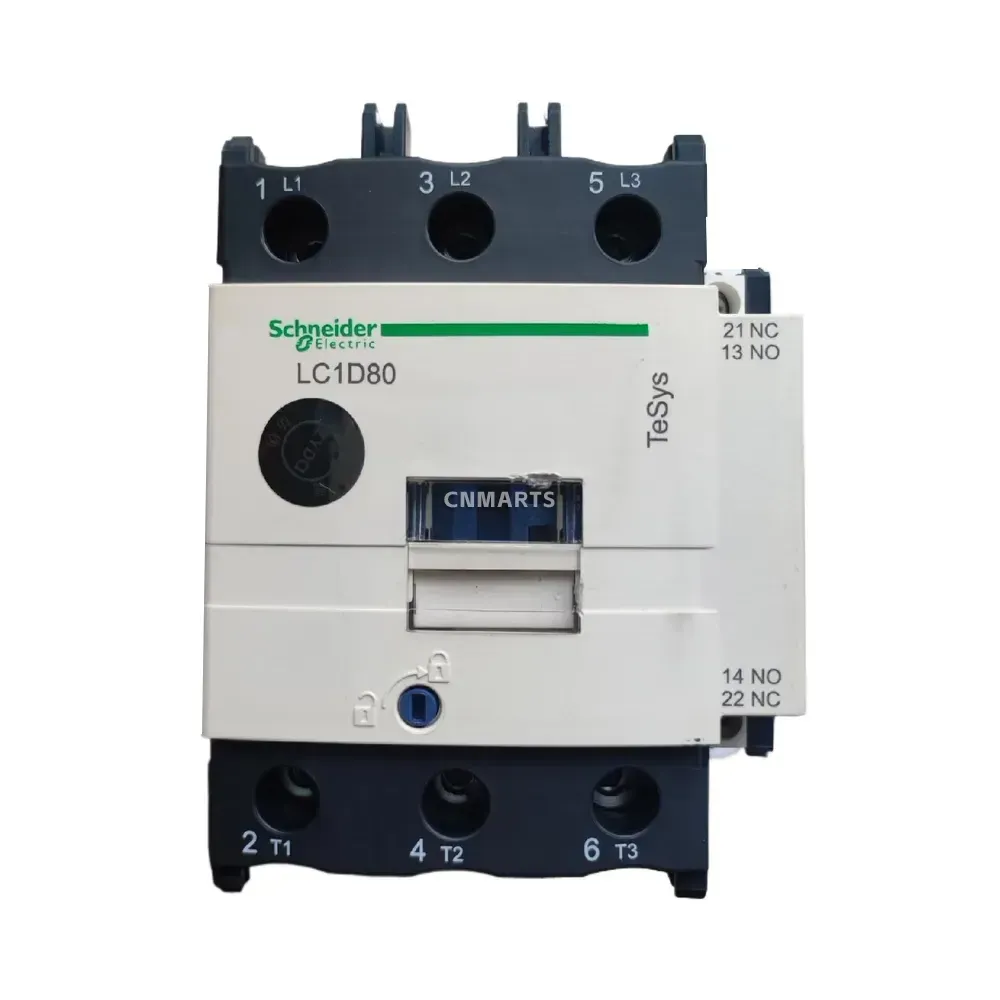

- Terminal Markings: Line (1 L1, 3 L2, 5 L3) / Load (2 T1, 4 T2, 6 T3)
- Connection Type: Screw-type terminals

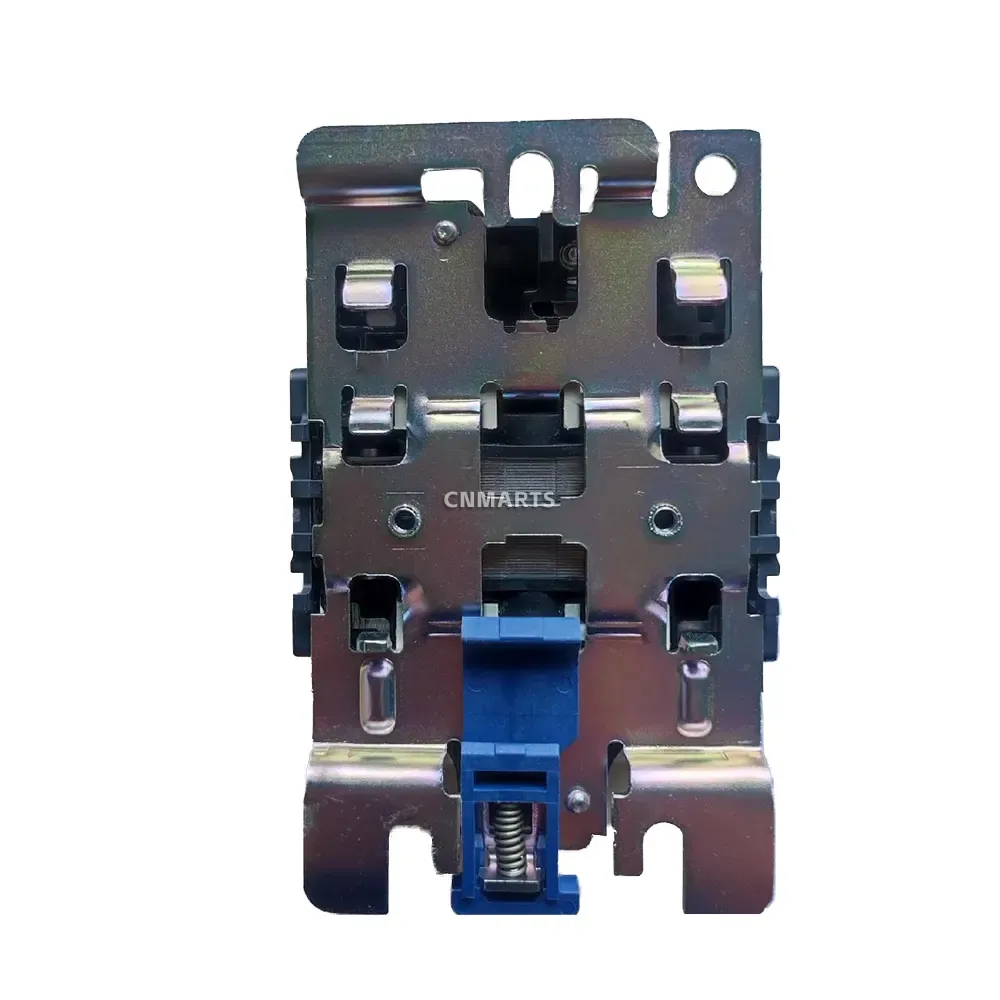

- Mounting Options: DIN rail or panel mounting (via metal back plate)
| Brand | Schneider Electric |
|---|---|
| Model | LC1D80 |
Only logged in customers who have purchased this product may leave a review.
Shipping policy
If you are buying multiple items, please contact us before checking out so we can get you the best combined rate for shipping.
Our default shipping rate is $100, which is enough to cover the cost of most shipments, but it is not our expected shipping rate. Due to the varying weights and sizes of products and customer locations, please contact us with your location and the products you are interested in to get the best current shipping rates.
ENERAL DELIVERY INFORMATION
Orders will be processed and shipping during standard working hours (0830 – 1700 GMT+8) Monday to Friday (excluding Bank Holidays)
On rare occasions, your order may be handled and/or processed on a Saturday. However, we are unable to ship items on weekends, therefore any orders dealt with on the weekend will be send out the next following working day.
The cut-off point for orders to be shipped the same day is 14:00 – please contact us to confirm stock levels before placing your order
Any orders placed after the cut-off will ship the next working day assuming all parts are in stock and ready for dispatch.
All orders:
- must be paid for in full before any goods are dispatched
- require a signature upon delivery. Please ensure delivery can be made to an address where someone will be available to sign for the delivery
- are packaged with great care, ensuring your order and the contents it contains, makes it safely through the delivery network
Schneider Electric LC1D80 AC Contactor
Upgrade your motor control systems with the Schneider Electric LC1D80 TeSys D 3-Pole AC Contactor. Featuring an 80A (AC-3) rating, 220V AC coil, and 1NO + 1NC auxiliary contacts, this durable contactor delivers reliable power switching for industrial applications.
