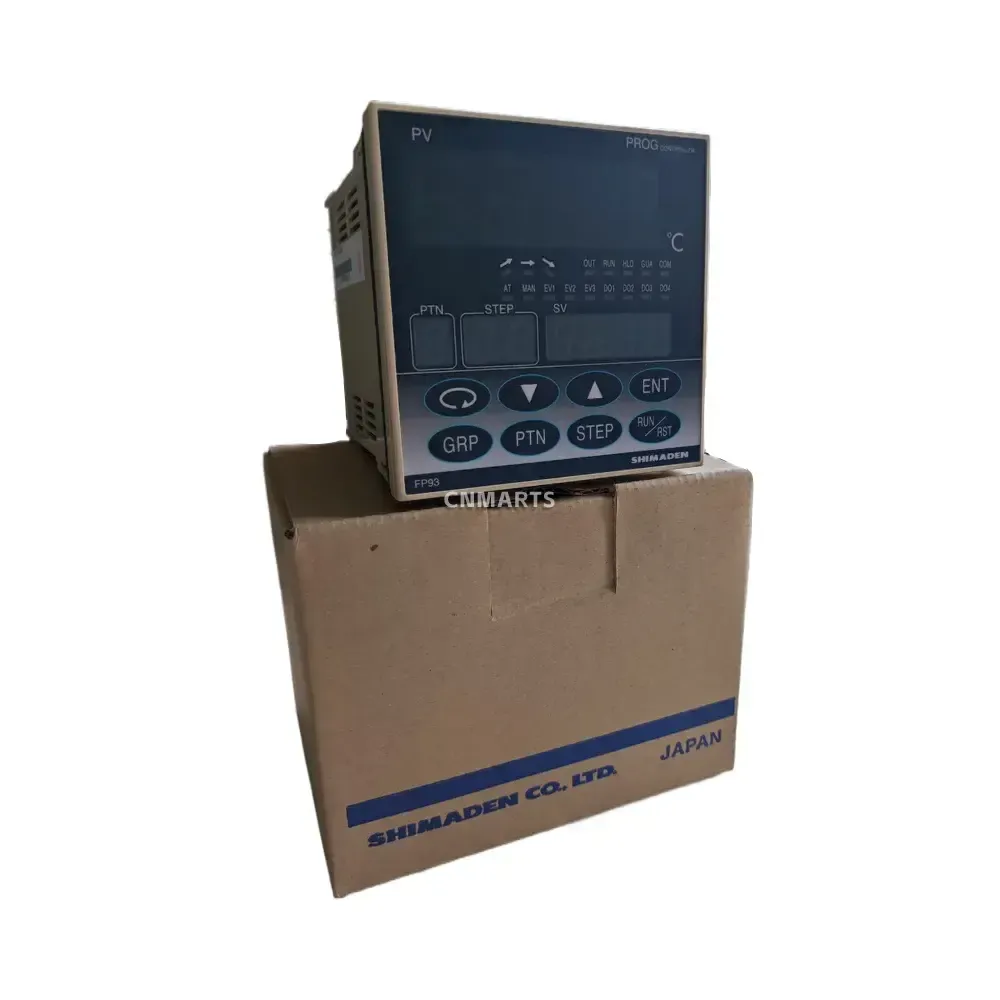

SHIMADEN FP93-8I-90-0050 Program Controller
The SHIMADEN FP93-8I-90-0050 is a highly reliable, panel-mounted programmable PID temperature controller engineered for precision industrial automation and thermal management. Manufactured in Japan, this advanced controller features a universal input capable of accepting mV DC, V/mA DC, thermocouples, and RTD signals. It provides highly flexible control output options, selectable among 4-20mA DC, 0-10V DC, 30mA 12V DC, and 2A 240VAC. Designed for complex process control, the FP93 series is equipped with three event relay outputs (EV1-EV3), four digital inputs (DI1-DI4), four digital outputs (DO1-DO4), and an analog transmission output. Complete with RS-232C/RS-485 communication capabilities and a comprehensive front-panel interface for real-time monitoring, this CE-marked controller ensures seamless integration into any industrial control system.
Technical Specifications:
- Brand: SHIMADEN
- Model: FP93-8I-90-0050
- Power Supply: 100-240VAC, 50/60Hz, 16VA
- Input Type: Universal Input (mV DC, V/mA DC, Thermocouple, RTD)
- Control Output: Selectable (4-20mA DC, 0-10V DC, 30mA 12V DC, 2A 240VAC)
- Event Outputs: 3 x Relay Outputs (EV1, EV2, EV3), rated 1A 240VAC
- Digital I/O: 4 x Digital Inputs (DI1-DI4), 4 x Digital Outputs (DO1-DO4)
- Transmission Output: Current transmission output (A-output)
- Communication: RS-232C / RS-485
- Certifications: CE Marked
- Country of Origin: Made in Japan
| Brand | Shimaden |
|---|---|
| Model | FP93-8I-90-0050 |
