Siemens 6AV2 124-0GC01-0AX0 SIMATIC HMI TP700 Comfort Touch Panel
Upgrade your industrial automation with the Siemens 6AV2 124-0GC01-0AX0 SIMATIC HMI TP700 Comfort Touch Panel. This robust 24V DC interface features PROFINET/PROFIBUS connectivity, an IP65 watertight front, and ATEX/UL certifications for safe use in hazardous locations.
Payment Methods:
-
Online Support 24/7
-
12 Months Warranty for New Products
-
30 Days Money Back Guarantee
Siemens 6AV2 124-0GC01-0AX0 SIMATIC HMI TP700 Comfort Touch Panel

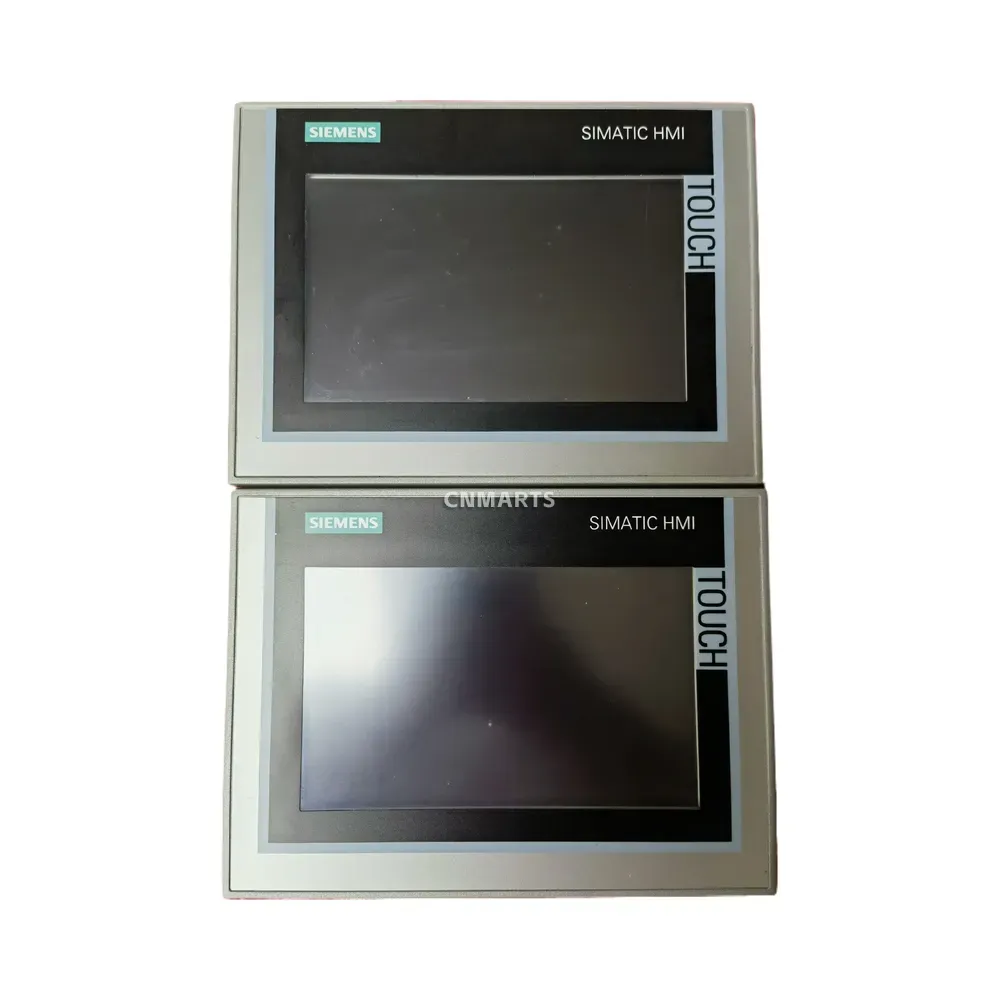

The Siemens SIMATIC HMI TP700 Comfort Touch Panel (Model: 6AV2 124-0GC01-0AX0) is a high-performance industrial Human Machine Interface engineered for complex visualization and automation tasks. Manufactured in Germany, this premium touch panel operates on a 24V DC power supply and features comprehensive connectivity options, including PROFIBUS, PROFINET (LAN), USB, Audio, and dual SD card slots for system and data management. Designed to withstand harsh industrial conditions, the TP700 Comfort boasts an IP65-rated watertight front panel (Type 4X/12 for indoor use) and holds rigorous certifications for hazardous locations, including ATEX, UL, and FM approvals. It ensures reliable operation in ambient temperatures ranging from 0°C to +50°C during vertical installation.
Technical Specifications:
- Brand: Siemens
- Model Number: 6AV2 124-0GC01-0AX0
- Product Series: SIMATIC HMI TP700 Comfort
- Power Supply: Input DC 24V / 0.85A max.

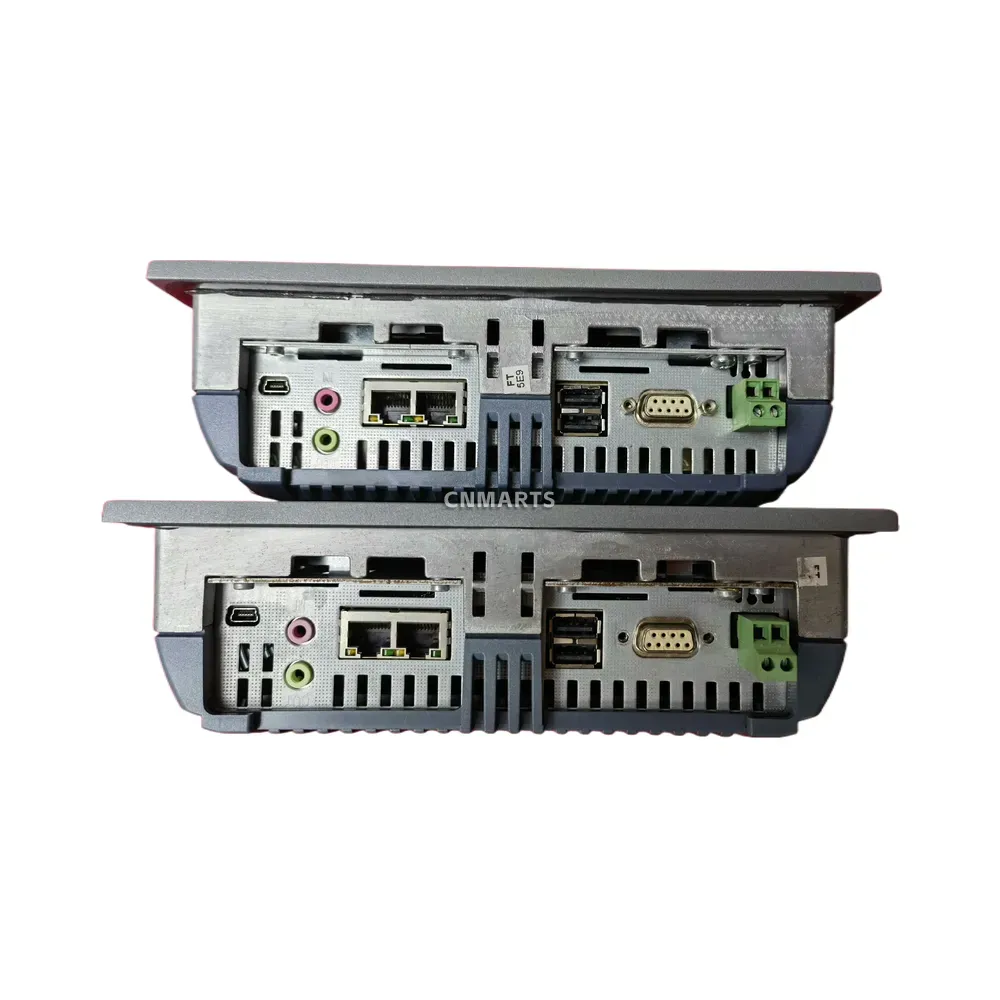

- Communication Interfaces: PROFIBUS, PROFINET (LAN), USB, Audio
- Storage Expansion: SD Card Slots (Data & System)
- Operating Temperature: 0°C to +50°C (Vertical mounting)
- Protection Class (Front Face): IP65, Type 4X/12 (Watertight, Indoor use only)

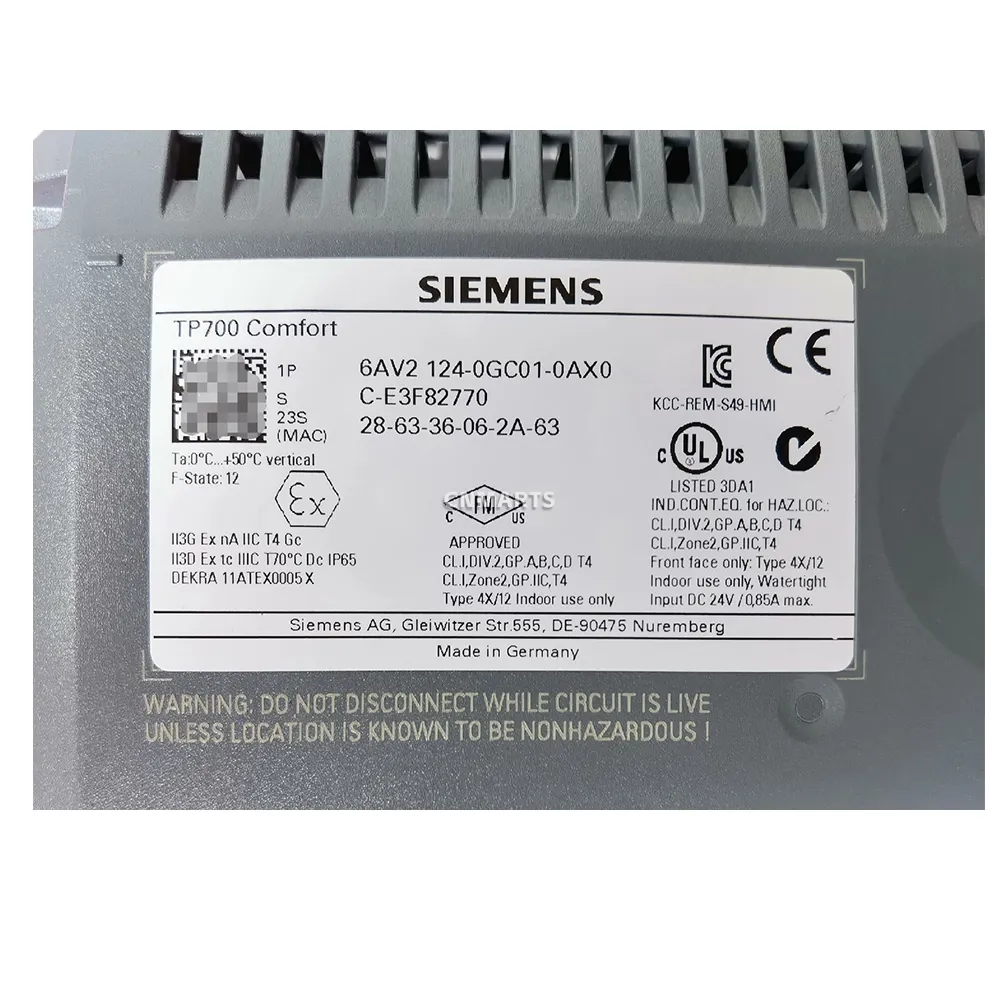

- Hazardous Location Certifications: ATEX (II3G Ex nA IIC T4 Gc / II3D Ex tc IIIC T70°C Dc), UL Listed (CL.I, DIV.2, GP.A,B,C,D T4 / CL.I, Zone 2, GP.IIC, T4), FM
- Country of Origin: Made in Germany
| Brand | Siemens |
|---|---|
| Model | 6AV2 124-0GC01-0AX0 |
