SIEMENS 6DR2101-5 Compact Process Controller

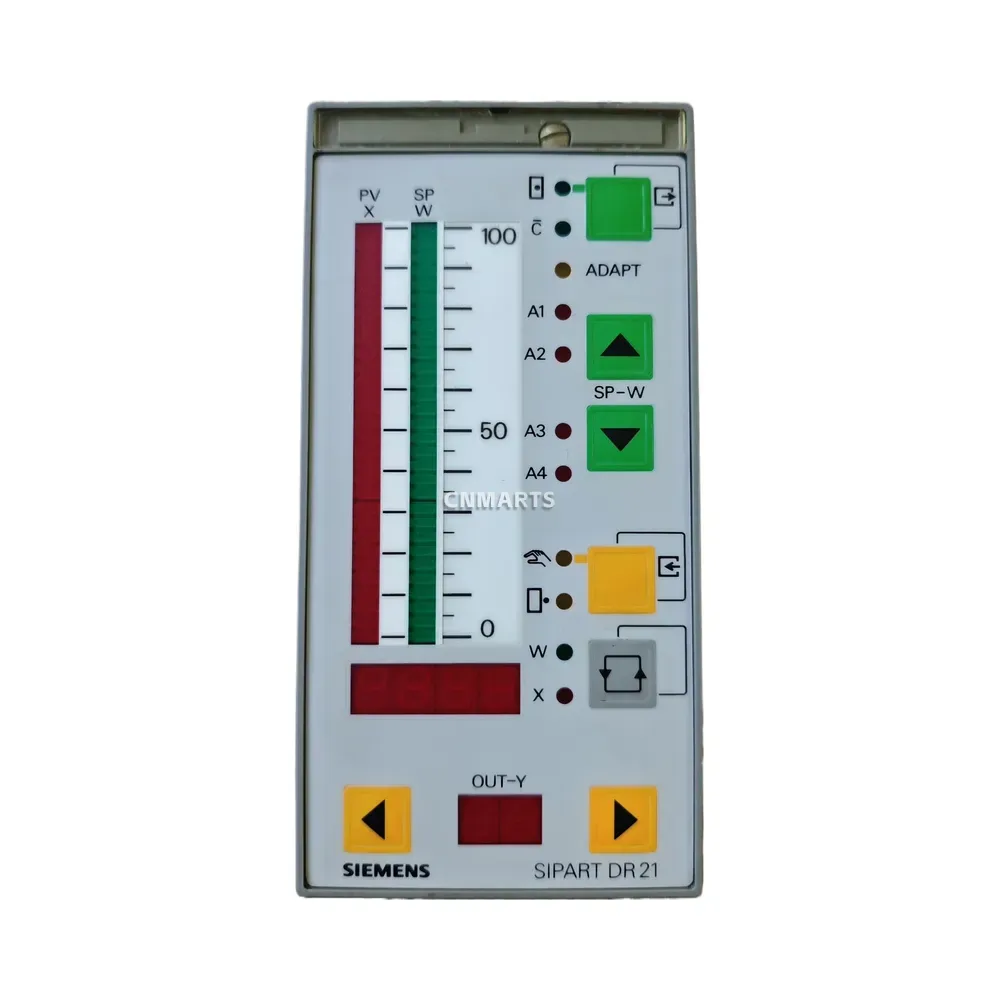

The SIEMENS SIPART DR21 (Model: 6DR2101-5) is a highly reliable compact process controller designed for demanding industrial automation applications, including precise water level control. This panel-mount controller features an intuitive front interface equipped with dual bargraph indicators for clear visualization of process variables (PV/X) and setpoints (SP/W) on a 0-100 scale. Additionally, it incorporates a bright red LED digital display, an OUT-Y display, and multiple status LEDs (ADAPT, A1-A4, W, X) for comprehensive process monitoring. Engineered for user-friendly operation, it includes tactile pushbuttons for seamless setpoint adjustments and mode switching. Built with a robust PC-GF20 housing and offering up to IP64 front protection, the 6DR2101-5 ensures durable and continuous performance in harsh industrial environments. Secure rear screw terminal blocks and a standard IEC power inlet make installation straightforward and efficient.
Technical Specifications:
- Brand: SIEMENS
- Model/Order Number: 6DR2101-5 (SIPART DR21)

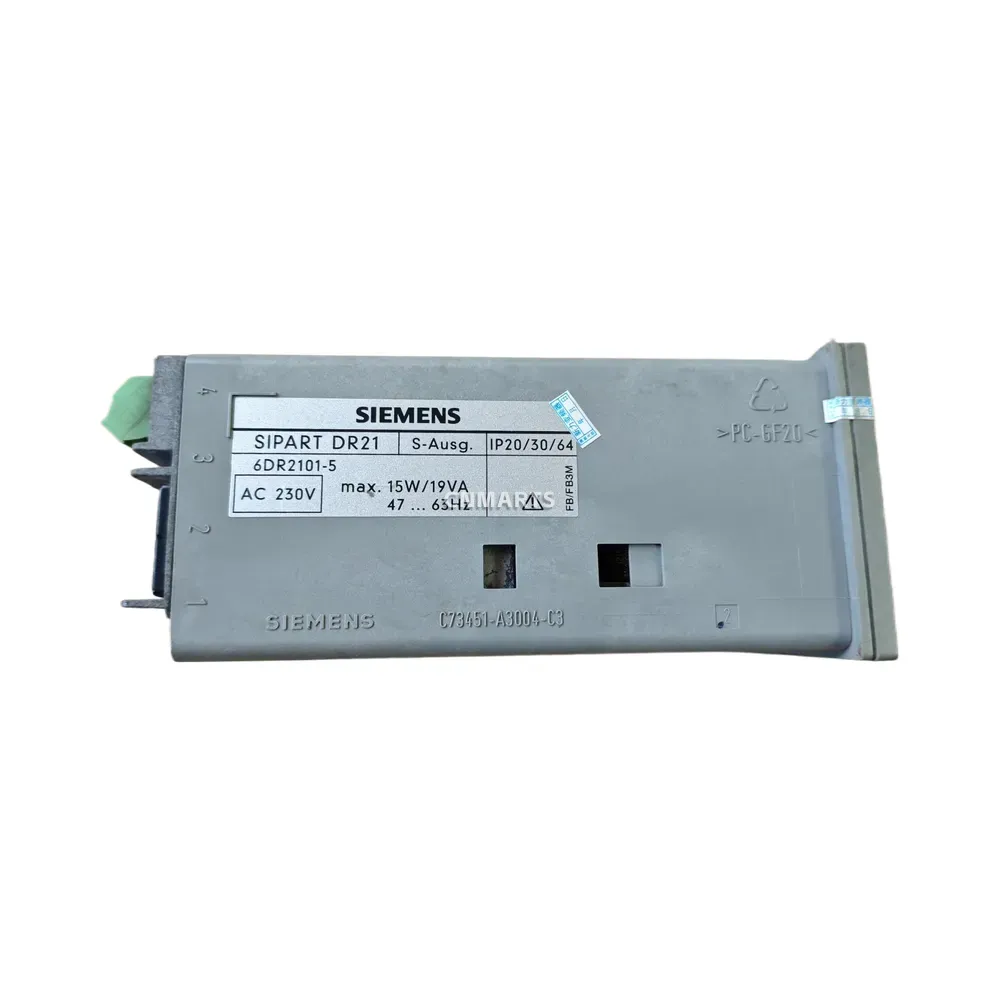

- Power Supply: AC 230 V, 47…63 Hz
- Power Consumption: Max. 15 W / 19 VA
- Protection Rating: IP20 (Rear) / IP30 (Housing) / IP64 (Front Panel)
- Display Interface: Dual bargraph indication (PV/X and SP/W, scale 0-100), red LED digital display, OUT-Y display
- Controls & Indicators: Status LEDs (ADAPT, A1-A4, W, X), pushbuttons for setpoint adjustment (SP-W up/down) and mode switching

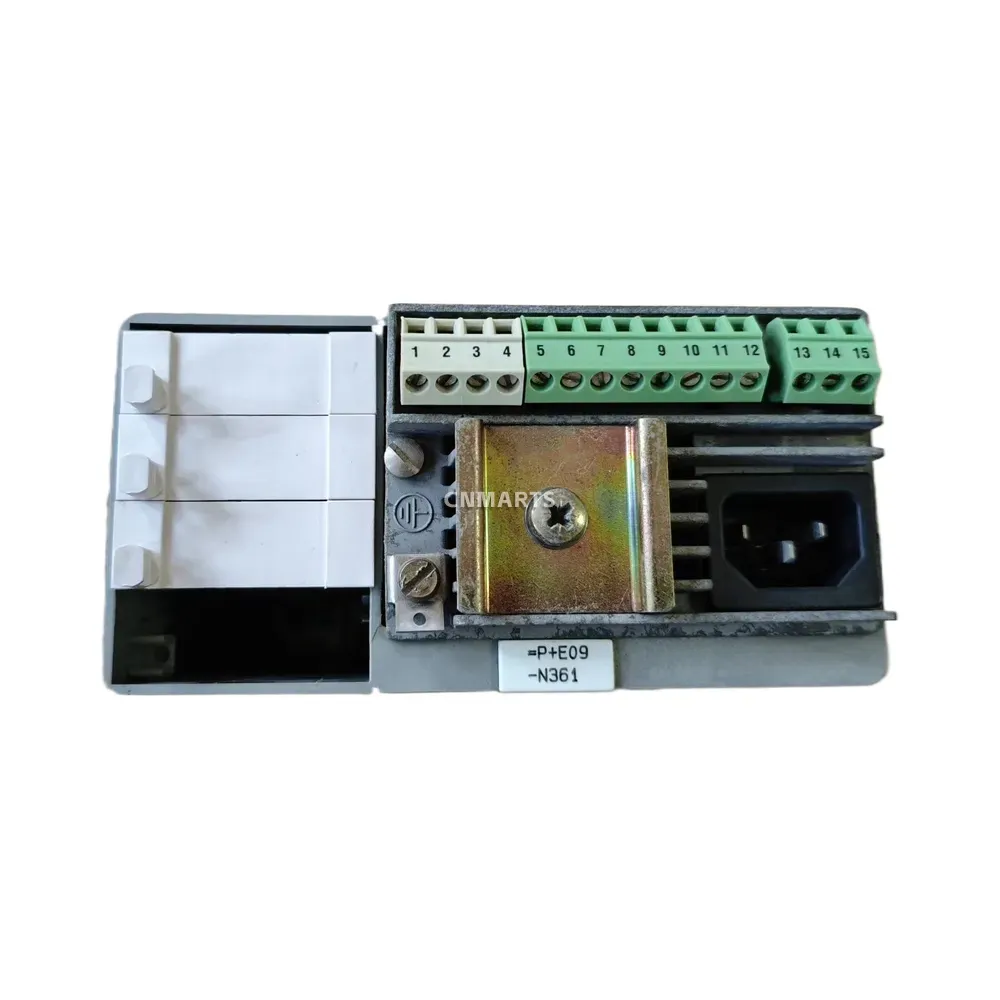

- Connections: Rear screw terminal blocks (terminals 1-15) and IEC power inlet
- Housing Material: PC-GF20 (Panel-mount design)
| Brand | Siemens |
|---|---|
| Model | 6DR2101-5 |
Only logged in customers who have purchased this product may leave a review.
Shipping policy
If you are buying multiple items, please contact us before checking out so we can get you the best combined rate for shipping.
Our default shipping rate is $100, which is enough to cover the cost of most shipments, but it is not our expected shipping rate. Due to the varying weights and sizes of products and customer locations, please contact us with your location and the products you are interested in to get the best current shipping rates.
ENERAL DELIVERY INFORMATION
Orders will be processed and shipping during standard working hours (0830 – 1700 GMT+8) Monday to Friday (excluding Bank Holidays)
On rare occasions, your order may be handled and/or processed on a Saturday. However, we are unable to ship items on weekends, therefore any orders dealt with on the weekend will be send out the next following working day.
The cut-off point for orders to be shipped the same day is 14:00 – please contact us to confirm stock levels before placing your order
Any orders placed after the cut-off will ship the next working day assuming all parts are in stock and ready for dispatch.
All orders:
- must be paid for in full before any goods are dispatched
- require a signature upon delivery. Please ensure delivery can be made to an address where someone will be available to sign for the delivery
- are packaged with great care, ensuring your order and the contents it contains, makes it safely through the delivery network
SIEMENS 6DR2101-5 Compact Process Controller (Water Level Controller)
Optimize your industrial automation with the SIEMENS 6DR2101-5 SIPART DR21 Compact Process Controller. Operating on AC 230V, this highly accurate panel-mount controller features dual bargraph displays, precise pushbutton setpoint adjustments, and robust IP64 front protection, making it the ideal solution for reliable water level control and advanced process management.
