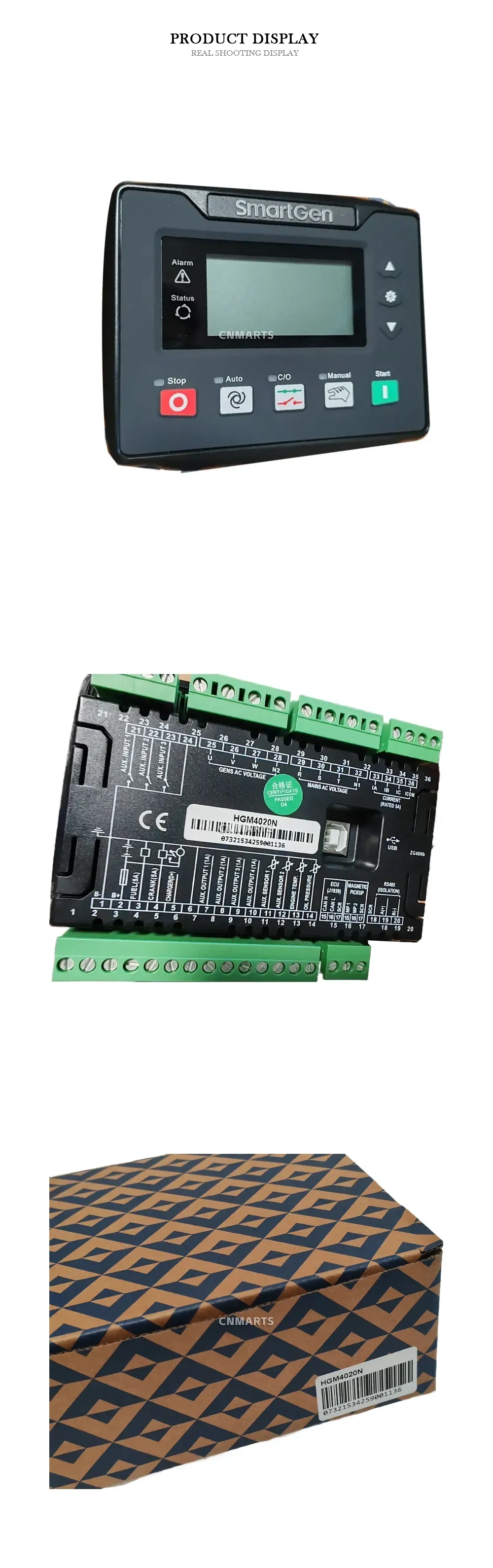

SmartGen HGM4020N Generator Controller
The SmartGen HGM4020N Generator Controller is an advanced, highly reliable automation module designed for single genset monitoring and control. Equipped with a clear LCD display and a user-friendly keypad interface, this controller provides real-time status visualization and seamless operation. Engineered to function as an Auto Mains Failure (AMF) module, it continuously monitors both 3-phase Mains and 3-phase Generator AC voltages. The HGM4020N boasts robust communication capabilities, featuring ECU (J1939 CAN bus) integration, an isolated RS485 port for remote monitoring, and a convenient USB interface for swift parameter configuration. With comprehensive inputs for engine sensors (temperature, oil pressure, magnetic pickup) and high-capacity auxiliary outputs (up to 10A), it delivers precise, automated control over fuel, cranking, and battery charging, ensuring the utmost safety and efficiency for your power generation system.
Technical Specifications:
- Brand: SmartGen
- Model: HGM4020N
- Display & Interface: LCD display with tactile keypad and LED status indicators (Alarm, Status, Stop, Auto, Manual, Start)
- Voltage Monitoring: 3-Phase Gens AC Voltage (U, V, W, N2) and 3-Phase Mains AC Voltage (R, S, T, N1)
- Current Input: Rated 5A (IA, IB, IC, ICON)
- Communication: ECU J1939 CAN bus (CAN H, CAN L), Isolated RS485 (A+, B-), and USB configuration port
- Relay Outputs: Fuel (5A), Crank (5A), Charger (5A), and Auxiliary Outputs 1-4 (10A each)
- Sensor & Aux Inputs: Aux Inputs 1-3, Magnetic Pickup (MP1, MP2), Engine Temp, Oil Pressure, and Aux Sensors 1-2
- Certifications: CE Passed
| Brand | SmartGen |
|---|---|
| Model | HGM4020N |
