Spirax Sarco FTGS14 Ball Float Steam Trap

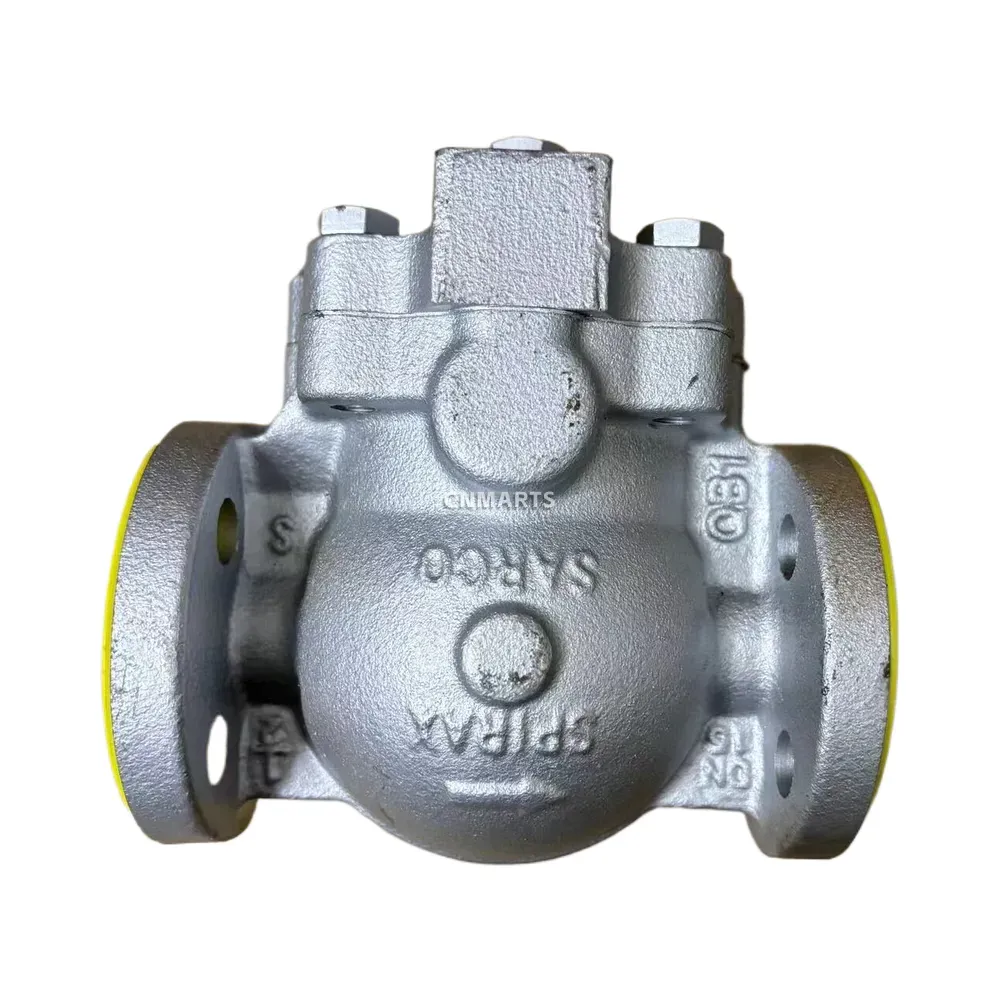

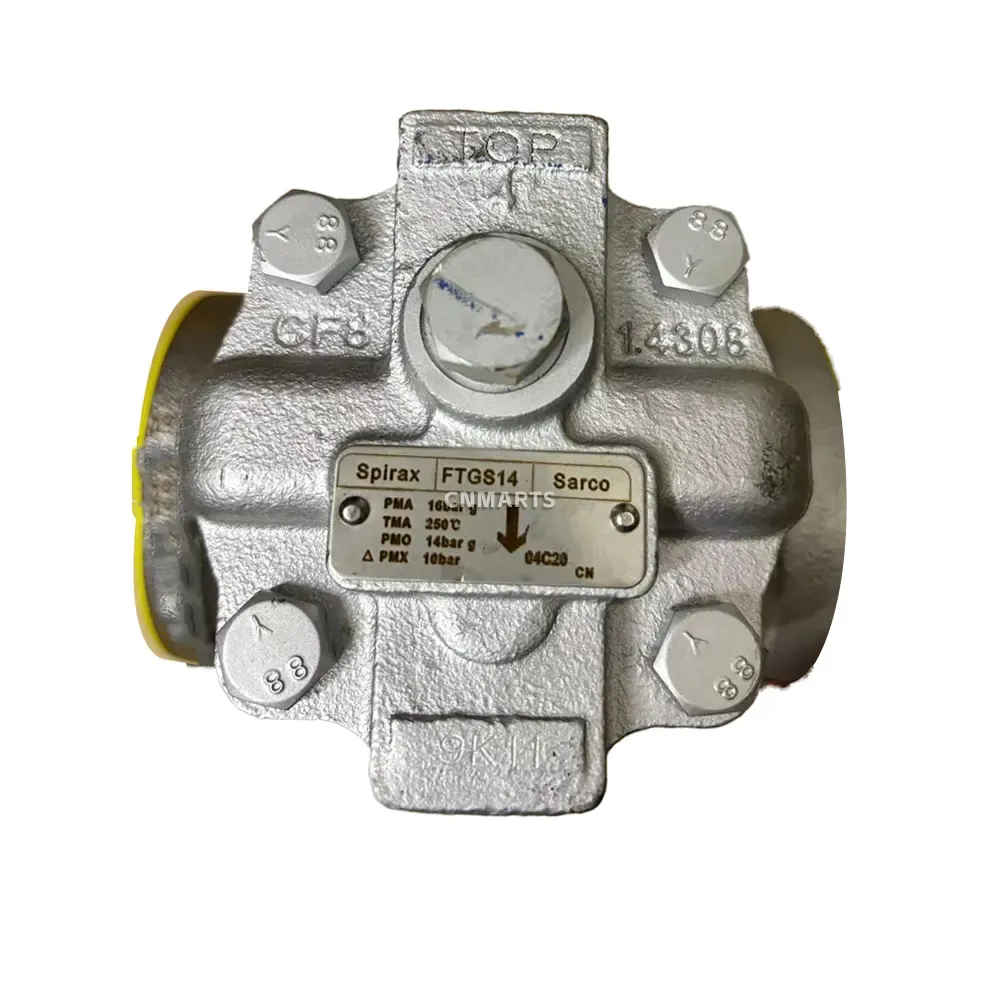

The Spirax Sarco FTGS14 is a premium free-floating ball float steam trap engineered for the efficient and continuous removal of condensate from steam systems. Constructed with a robust stainless steel body (CF8 / 1.4308), this trap offers exceptional durability and resistance to corrosion, making it ideal for clean steam applications and harsh industrial environments. It features a DN15 flanged connection with 4-bolt holes for secure installation, along with a clearly marked flow direction arrow and “TOP” orientation guide on the body casting to ensure proper setup. Designed to handle varying loads seamlessly, the FTGS14 provides reliable performance for process heating, heat exchangers, and general drainage applications.
Technical Specifications:
- Brand: Spirax Sarco
- Model: FTGS14

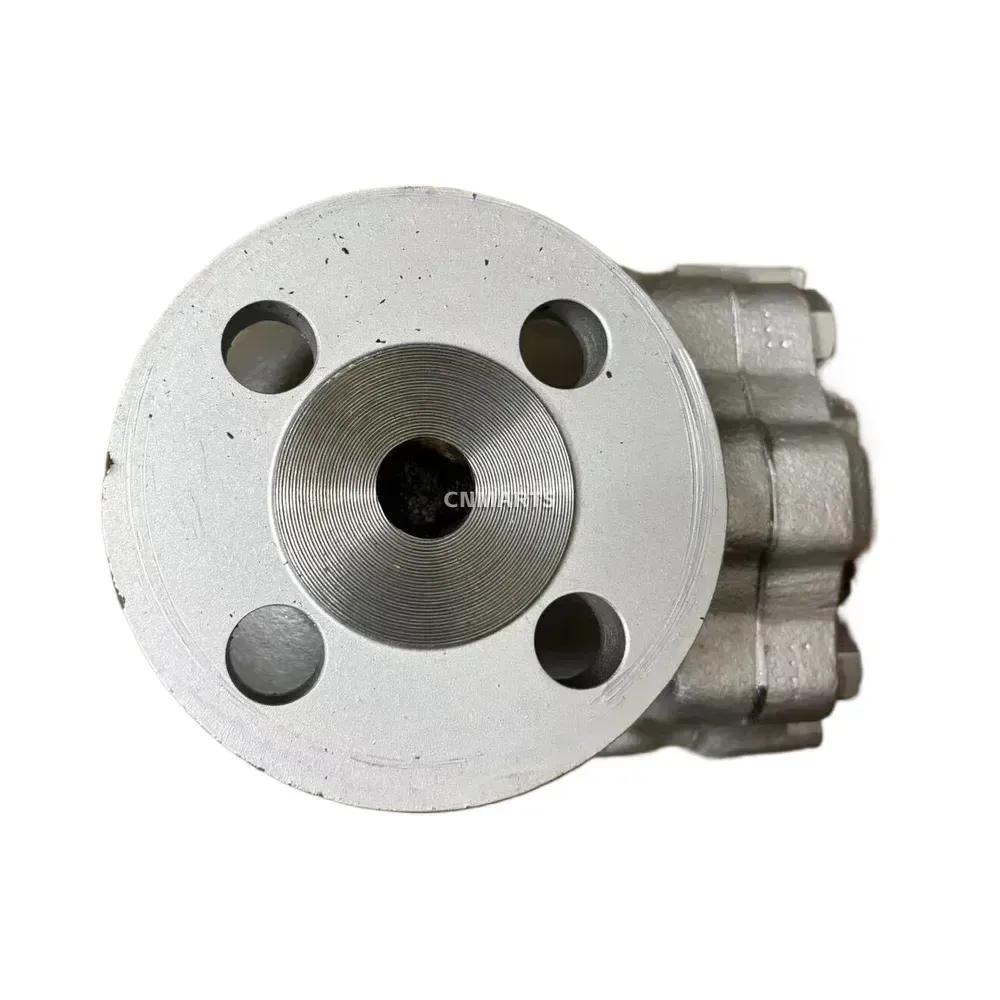

- Connection: Flanged, DN15 (4-bolt holes)
- Body Material: Stainless Steel CF8 / 1.4308
- Maximum Allowable Pressure (PMA): 16 bar g
- Maximum Allowable Temperature (TMA): 250°C
- Maximum Operating Pressure (PMO): 14 bar g
- Maximum Differential Pressure (Δ PMX): 10 bar
| Brand | Spirax Sarco |
|---|---|
| Model | FTGS14 |
Only logged in customers who have purchased this product may leave a review.
Shipping policy
If you are buying multiple items, please contact us before checking out so we can get you the best combined rate for shipping.
Our default shipping rate is $100, which is enough to cover the cost of most shipments, but it is not our expected shipping rate. Due to the varying weights and sizes of products and customer locations, please contact us with your location and the products you are interested in to get the best current shipping rates.
ENERAL DELIVERY INFORMATION
Orders will be processed and shipping during standard working hours (0830 – 1700 GMT+8) Monday to Friday (excluding Bank Holidays)
On rare occasions, your order may be handled and/or processed on a Saturday. However, we are unable to ship items on weekends, therefore any orders dealt with on the weekend will be send out the next following working day.
The cut-off point for orders to be shipped the same day is 14:00 – please contact us to confirm stock levels before placing your order
Any orders placed after the cut-off will ship the next working day assuming all parts are in stock and ready for dispatch.
All orders:
- must be paid for in full before any goods are dispatched
- require a signature upon delivery. Please ensure delivery can be made to an address where someone will be available to sign for the delivery
- are packaged with great care, ensuring your order and the contents it contains, makes it safely through the delivery network
Spirax Sarco FTGS14 Ball Float Steam Trap
Shop the Spirax Sarco FTGS14 Ball Float Steam Trap (DN15). Featuring a durable stainless steel CF8 body, flanged connections, and a 14 bar g max operating pressure, this trap ensures reliable, continuous condensate drainage for industrial steam systems.
