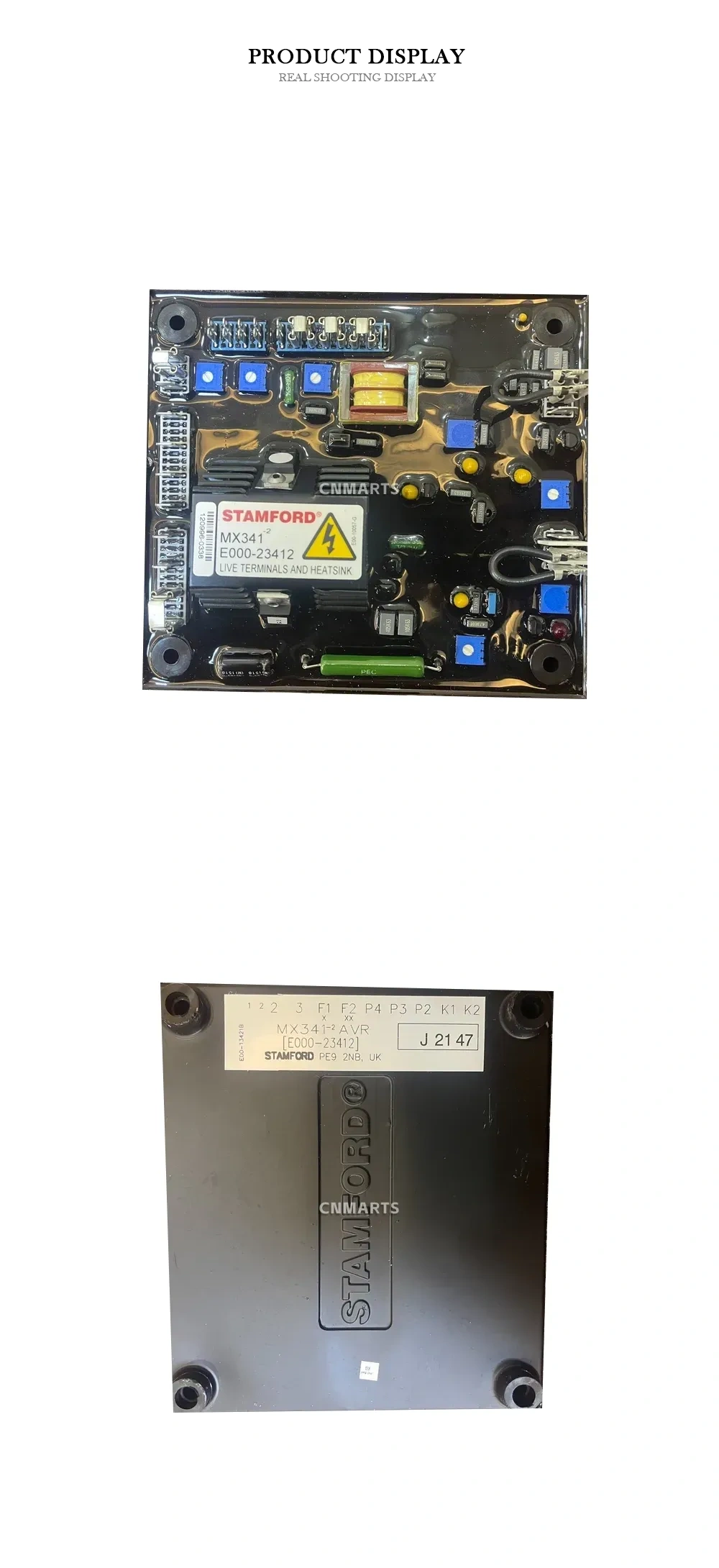

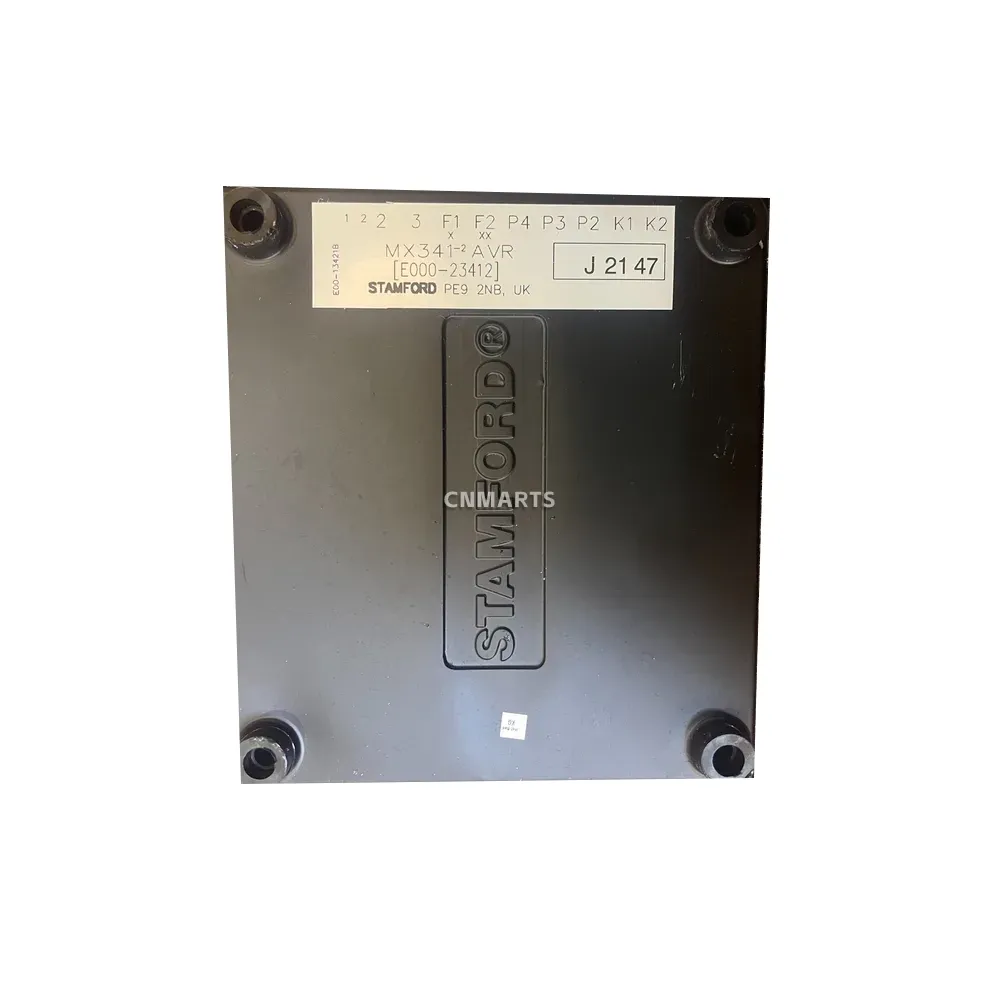

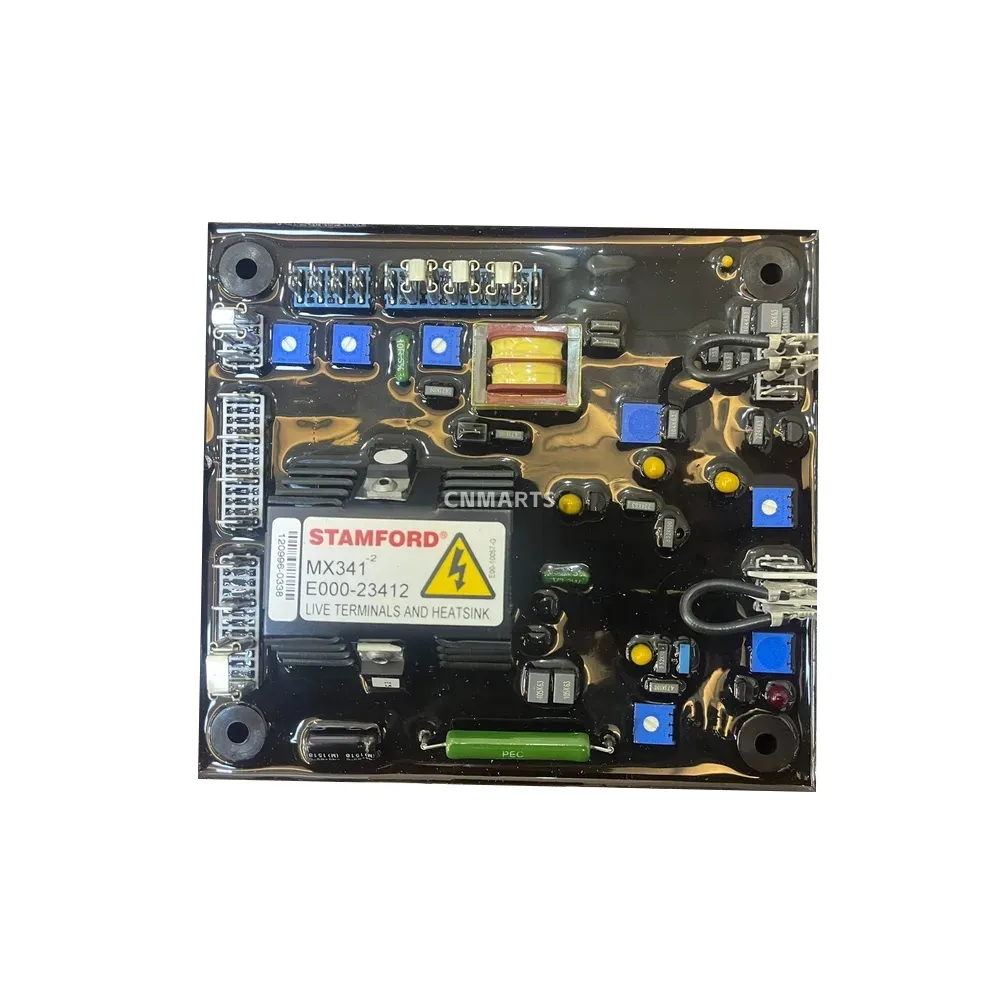

STAMFORD MX341-2 Automatic Voltage Regulator (AVR)
Genuine STAMFORD MX341-2 Automatic Voltage Regulator (AVR), part number E000-23412. A three-phase sensed, PMG-powered AVR ensuring precise +/- 1.0% voltage regulation for brushless generators. Features built-in protection for reliable power output.
Payment Methods:
-
Online Support 24/7
-
12 Months Warranty for New Products
-
30 Days Money Back Guarantee
STAMFORD MX341-2 Automatic Voltage Regulator (AVR)
The STAMFORD MX341-2 is a three-phase sensed Automatic Voltage Regulator (AVR) that forms part of the excitation system for a brushless generator. It is a genuine component, part number E000-23412, designed for use with Permanent Magnet Generator (PMG) systems. The MX341-2 provides excellent voltage regulation and includes key protection features such as under-speed and over-excitation protection. Excitation power is derived from a three-phase permanent magnet generator, isolating the AVR control circuits from the effects of non-linear loads and ensuring stable, reliable performance and fault-clearing capabilities.
Technical Specifications:
- Sensing Input: Voltage 190-264V AC max, 1 phase, 2 wire. Frequency 50-60 Hz nominal.
- Power Input (PMG): Voltage 170-220V AC max, 3 phase, 3 wire. Frequency 100-120 Hz nominal.
- Output: Voltage max 95V DC. Current continuous 4A, transient 6A for 10 seconds. Resistance 15 ohms minimum.
- Regulation: +/- 1.0% RMS with 4% engine governing.
- Protection Features: Includes Under-Frequency Roll Off (UFRO), Soft Start Voltage Ramping, Over Voltage Protection, and Over-Excitation Protection.
| Brand | STAMFORD |
|---|---|
| Model | MX341-2 |
