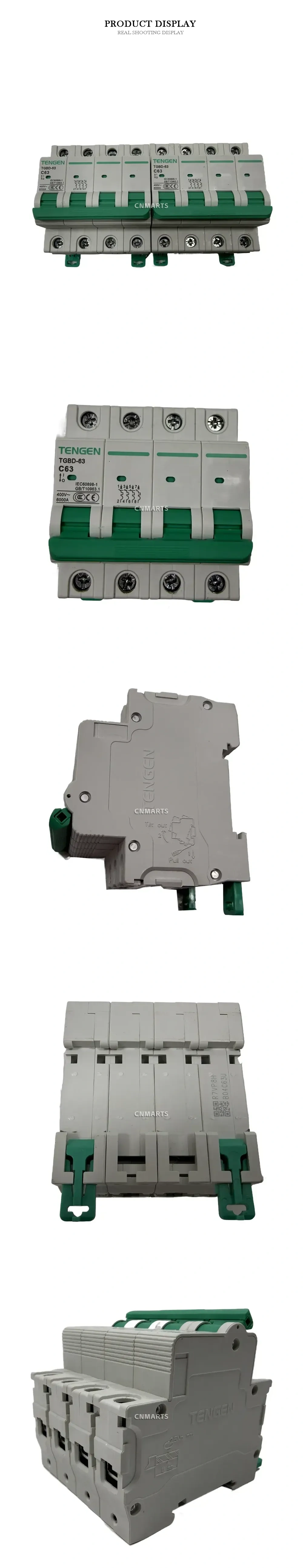

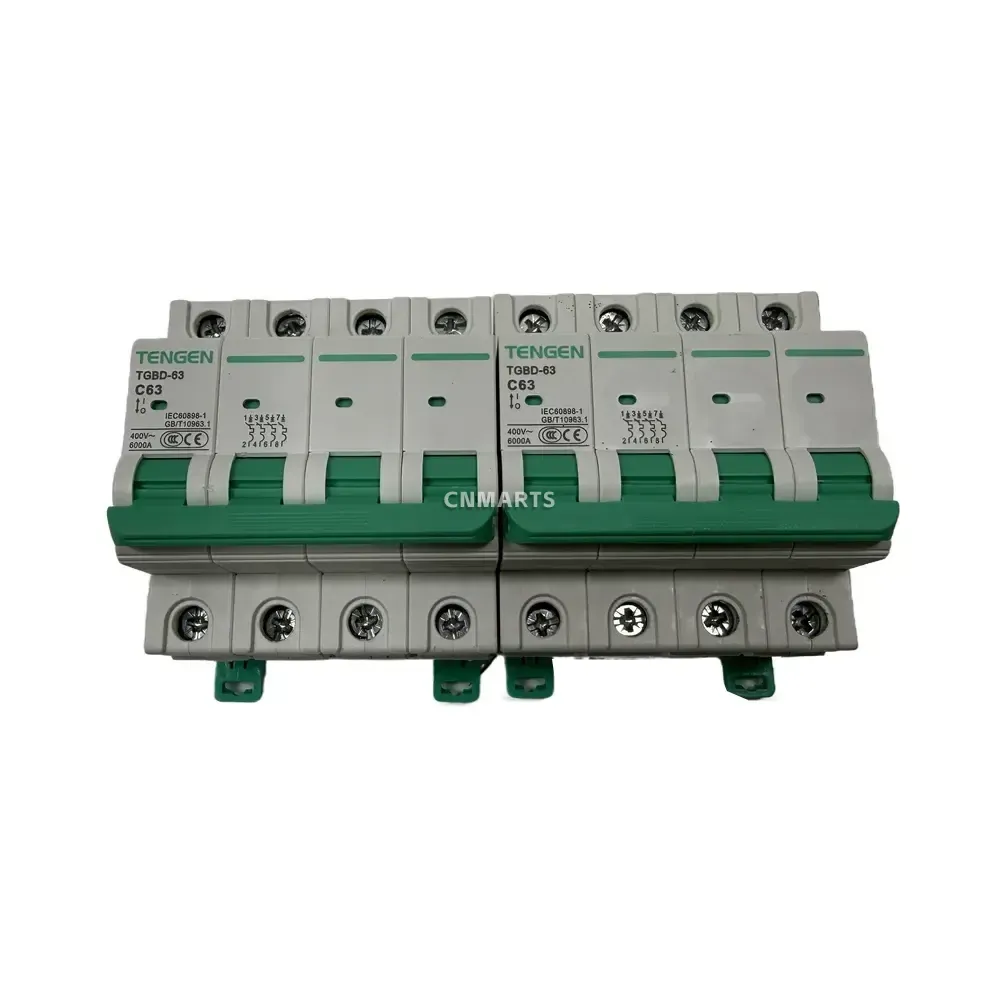

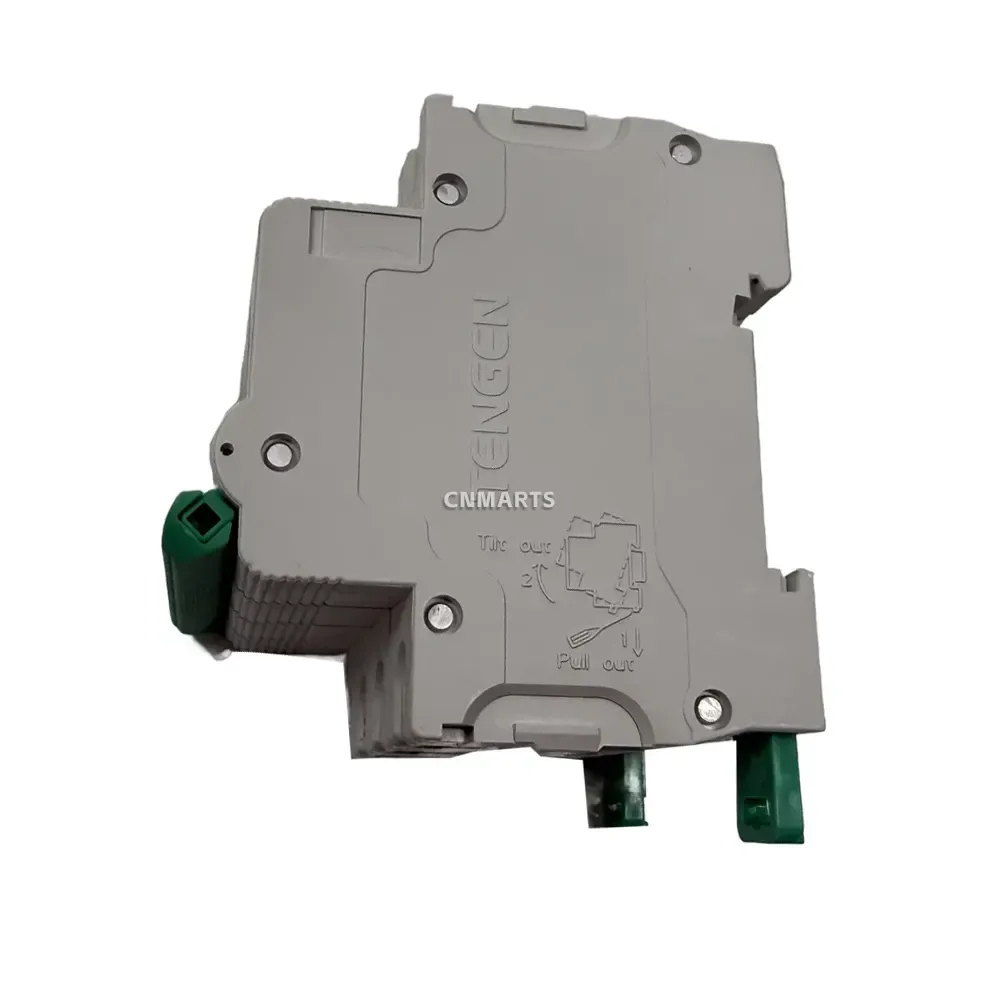

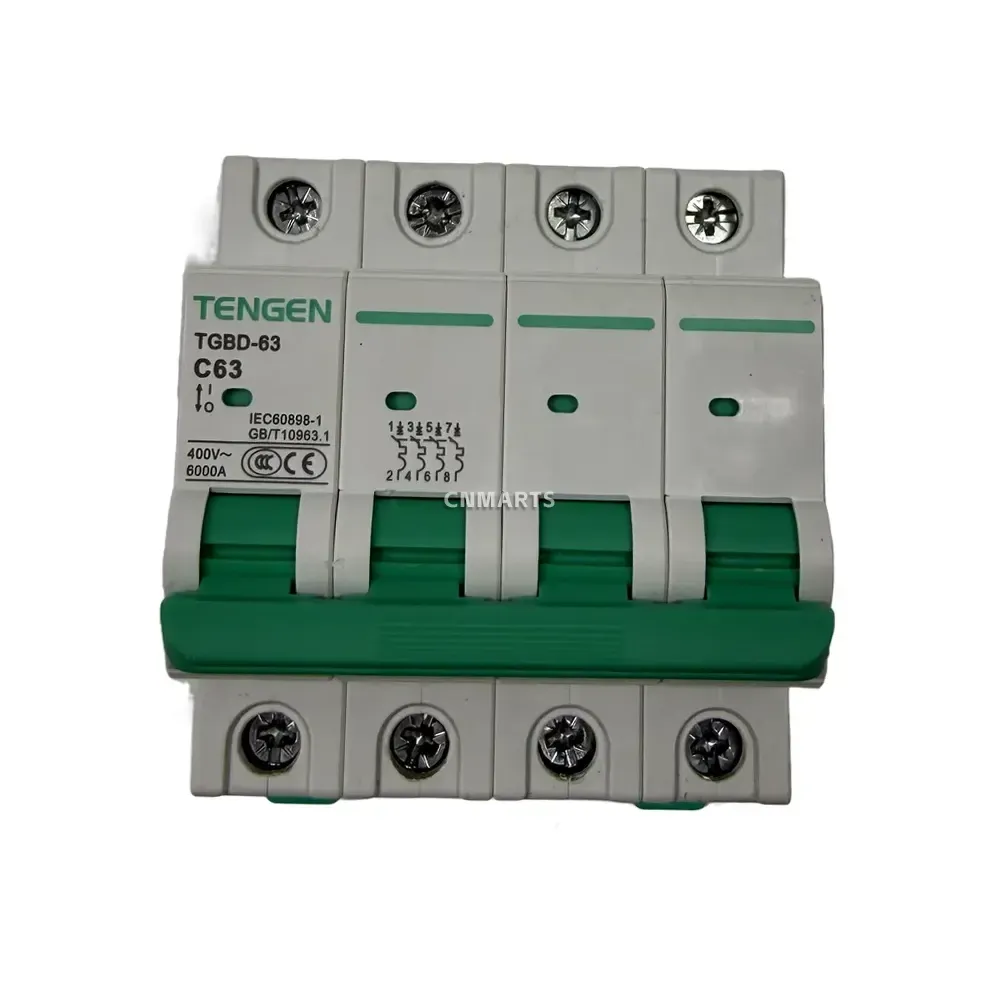

TENGEN TGBD-63 Miniature Circuit Breaker
The TENGEN TGBD-63 Miniature Circuit Breaker (MCB) is a highly reliable and robust electrical protection device designed to safeguard your circuits against overloads and short circuits. Featuring a 4-pole (4P) configuration and a C-curve tripping characteristic, this C63 model is ideal for commercial and industrial applications requiring a 63A rated current. It operates safely at a rated voltage of 400V AC with an impressive short-circuit breaking capacity of 6000A. Built for easy installation, it supports standard DIN rail mounting and features secure screw-type wire terminals (numbered 1/3/5/7 for line and 2/4/6/8 for load) with a maximum tightening torque of 2.5Nm. Equipped with green linked toggle handles for clear status indication, certified by CCC and CE, and fully compliant with IEC60898-1 and GB/T10963.1 standards, the TGBD-63 guarantees superior safety and performance for your electrical distribution systems.
Technical Specifications:
- Brand: TENGEN

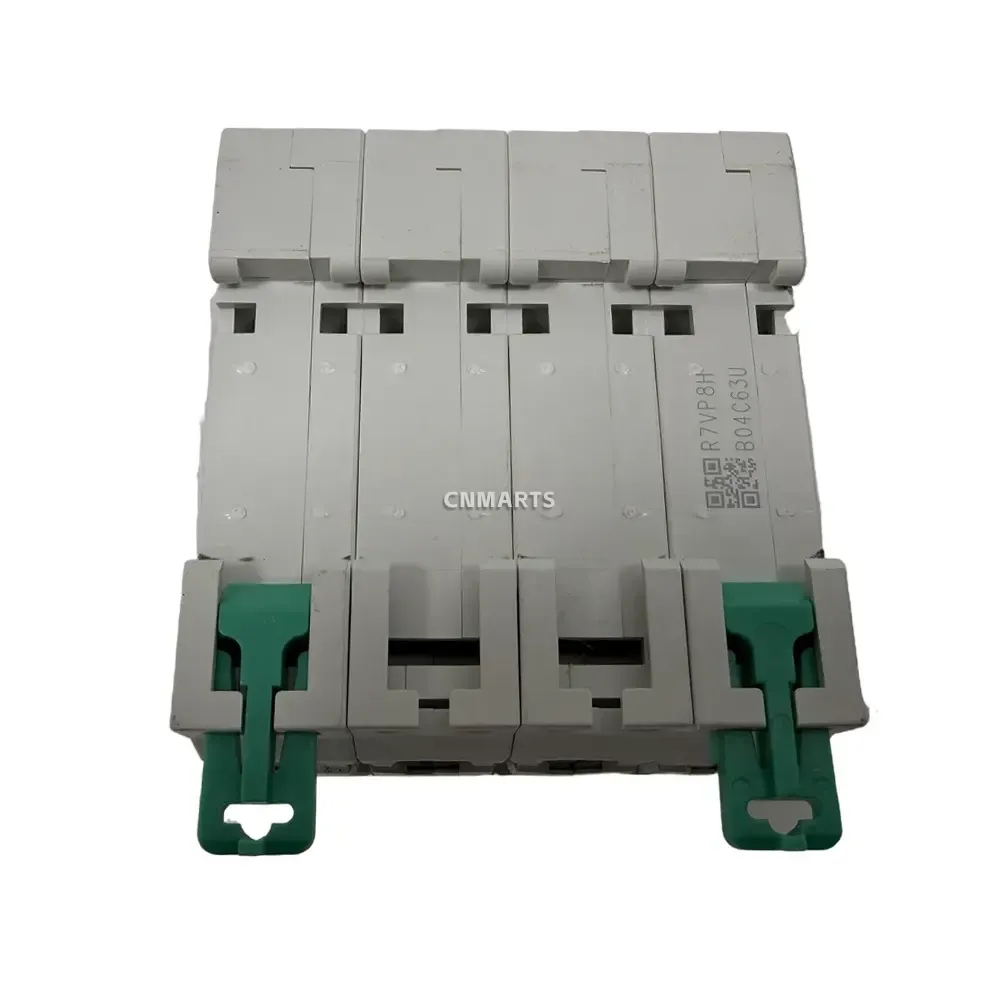

- Model: TGBD-63 (Product Codes: R7VP8H, B04C63U)
- Number of Poles: 4P
- Tripping Characteristic: C-Curve
- Rated Current (In): 63A (C63)
- Rated Voltage (Ue): 400V AC
- Short-Circuit Breaking Capacity (Icn): 6000A
- Standards Compliant: IEC60898-1, GB/T10963.1
- Certifications: CCC, CE
- Mounting Type: DIN Rail

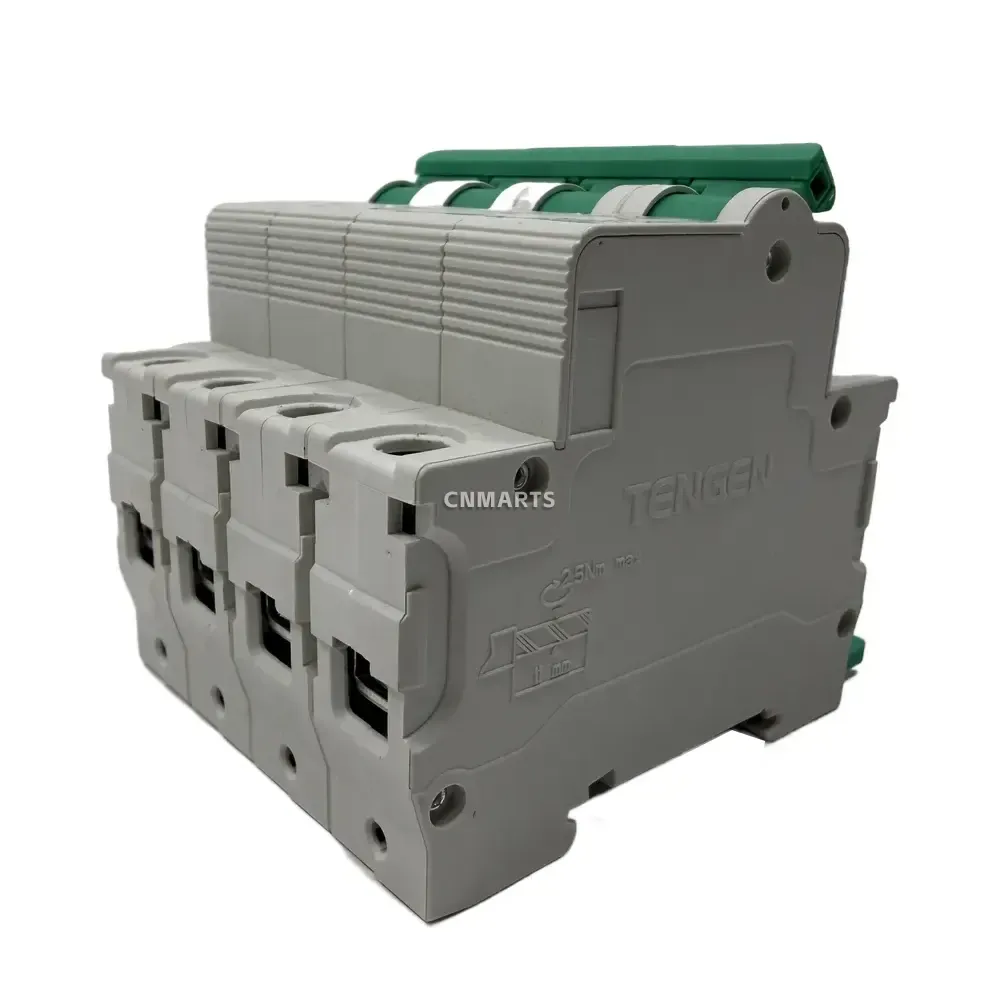

- Terminal Type: Screw-type (Line: 1/3/5/7, Load: 2/4/6/8)
- Max Terminal Torque: 2.5Nm
| Brand | TENGEN |
|---|---|
| Model | TGBD-63 |
