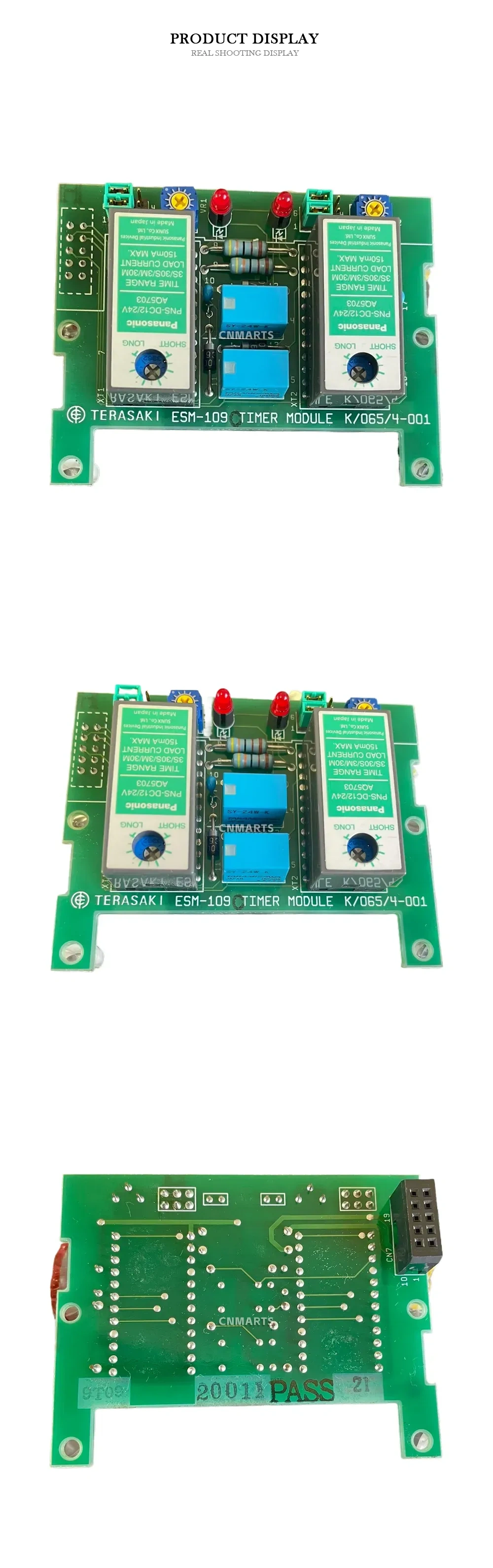

Terasaki ESM-109 Timer Module

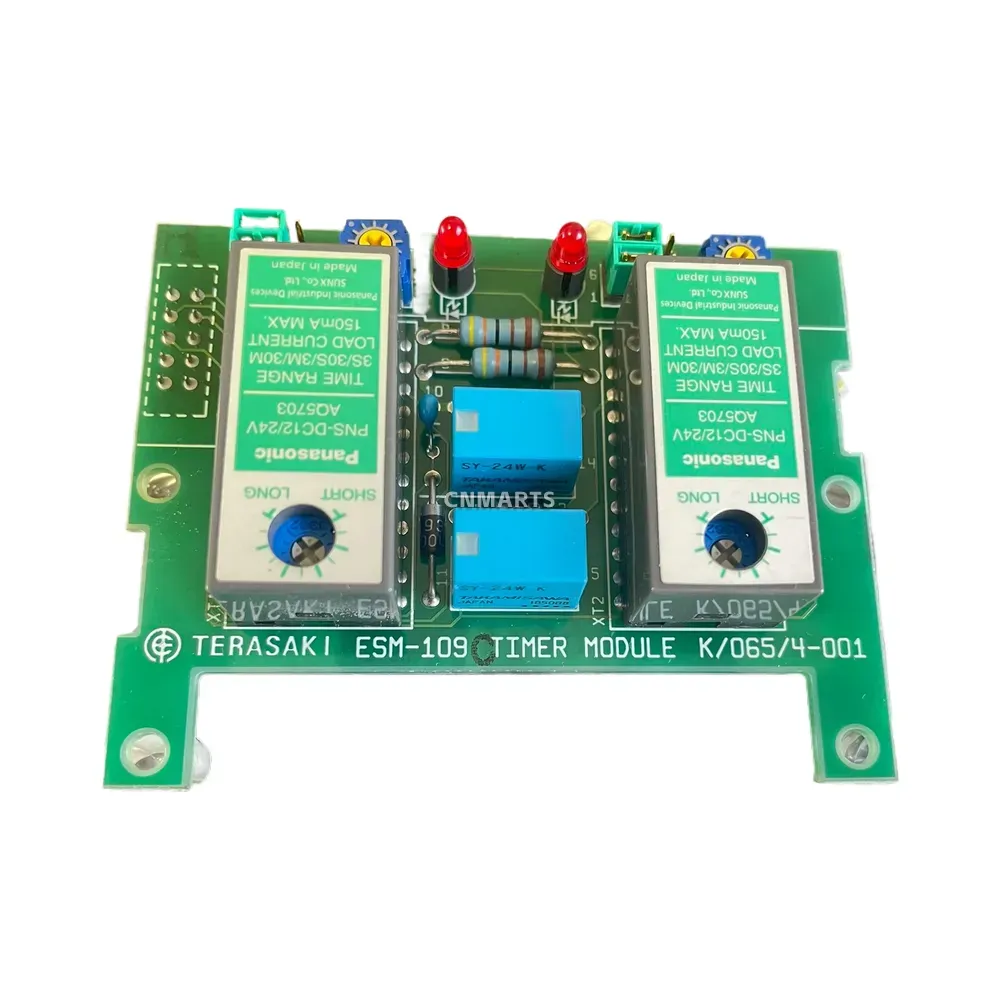

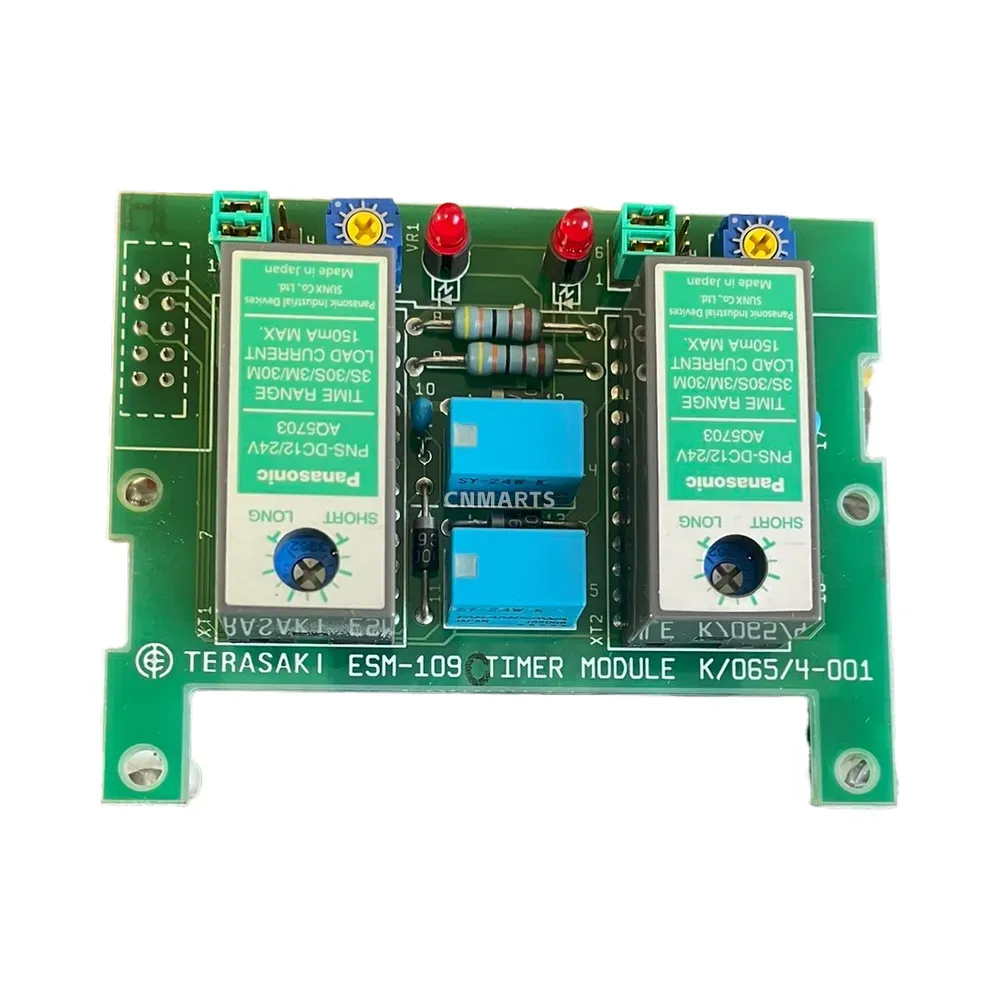

The Terasaki ESM-109 is a high-reliability industrial timer module designed for precise control in a variety of automation and electrical systems. This robust circuit board is engineered with dual Panasonic PNS-DC12/24V timer relays, ensuring dependable and accurate performance. It offers exceptional flexibility with four user-configurable time ranges: 3 seconds, 30 seconds, 3 minutes, and 30 minutes, which are easily fine-tuned using the onboard “Short” and “Long” adjustment potentiometers. Manufactured in Japan by Panasonic Industrial Devices SUNX Co., Ltd. for Terasaki, this module is an ideal solution for managing sequential operations and timed events in demanding industrial environments.
Technical Specifications:
- Model: ESM-109
- Brand: Terasaki
- Input Voltage: DC 12/24V (based on relay model)
- Configurable Time Ranges: 3S / 30S / 3M / 30M
- Maximum Load Current: 150mA
- Core Components: Panasonic PNS-DC12/24V Timer Relays, SY-24W-K Intermediate Relays
- Part Number: K/065/4-001
- Country of Origin: Japan
| Brand | TERASAKI |
|---|---|
| Model | ESM-109 |
