UAT NO. 1110 PCB Circuit Board Module

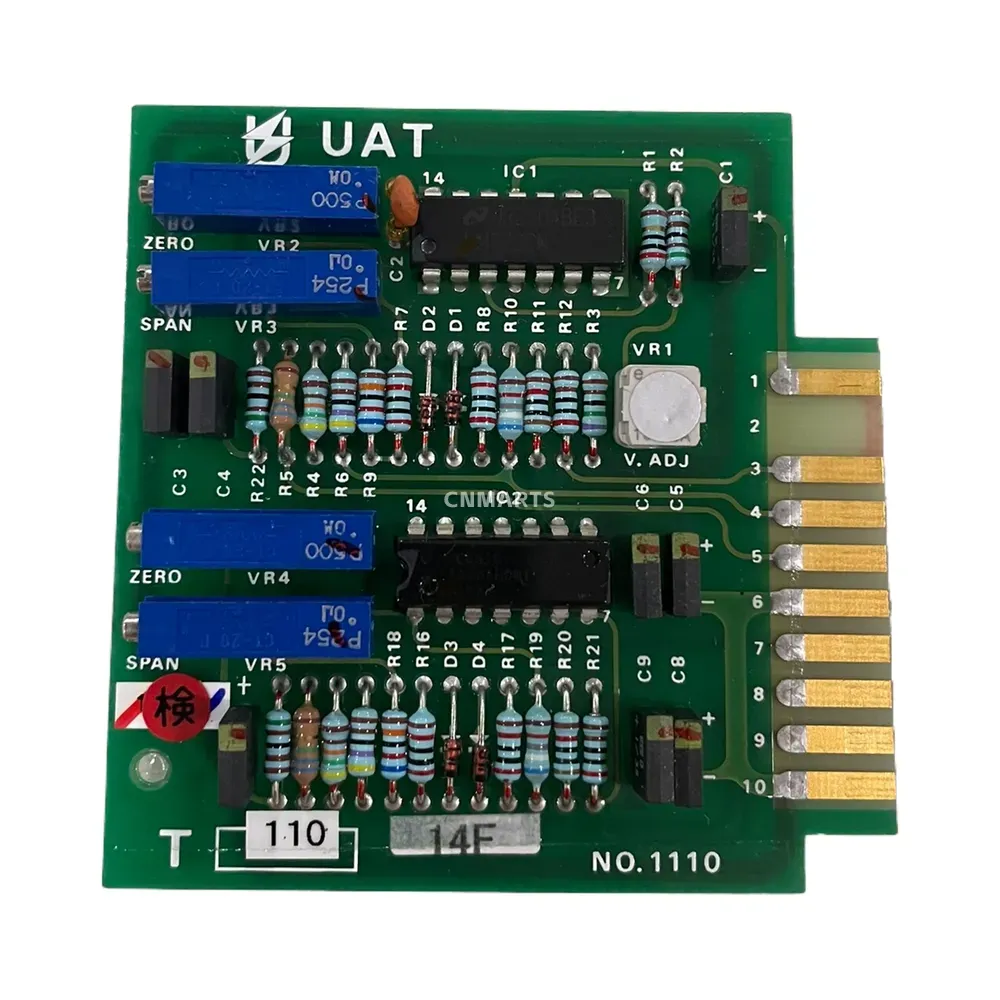

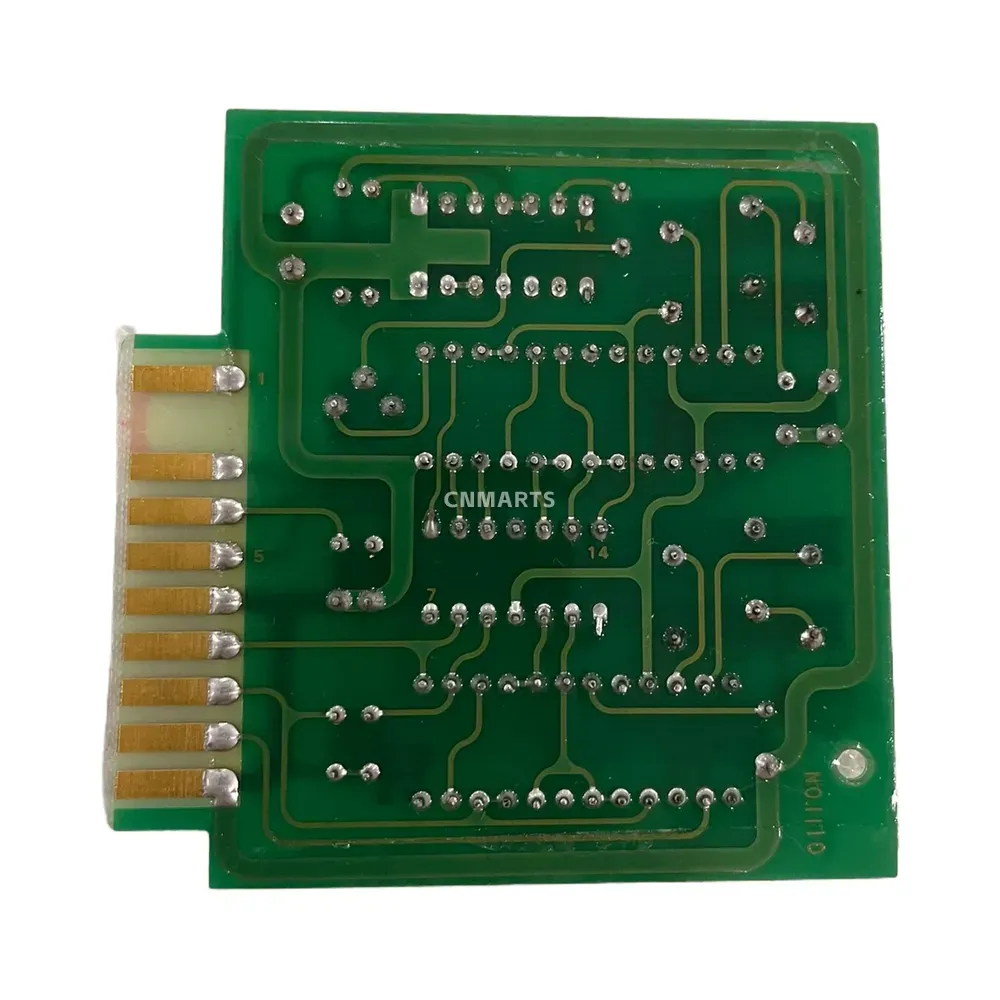

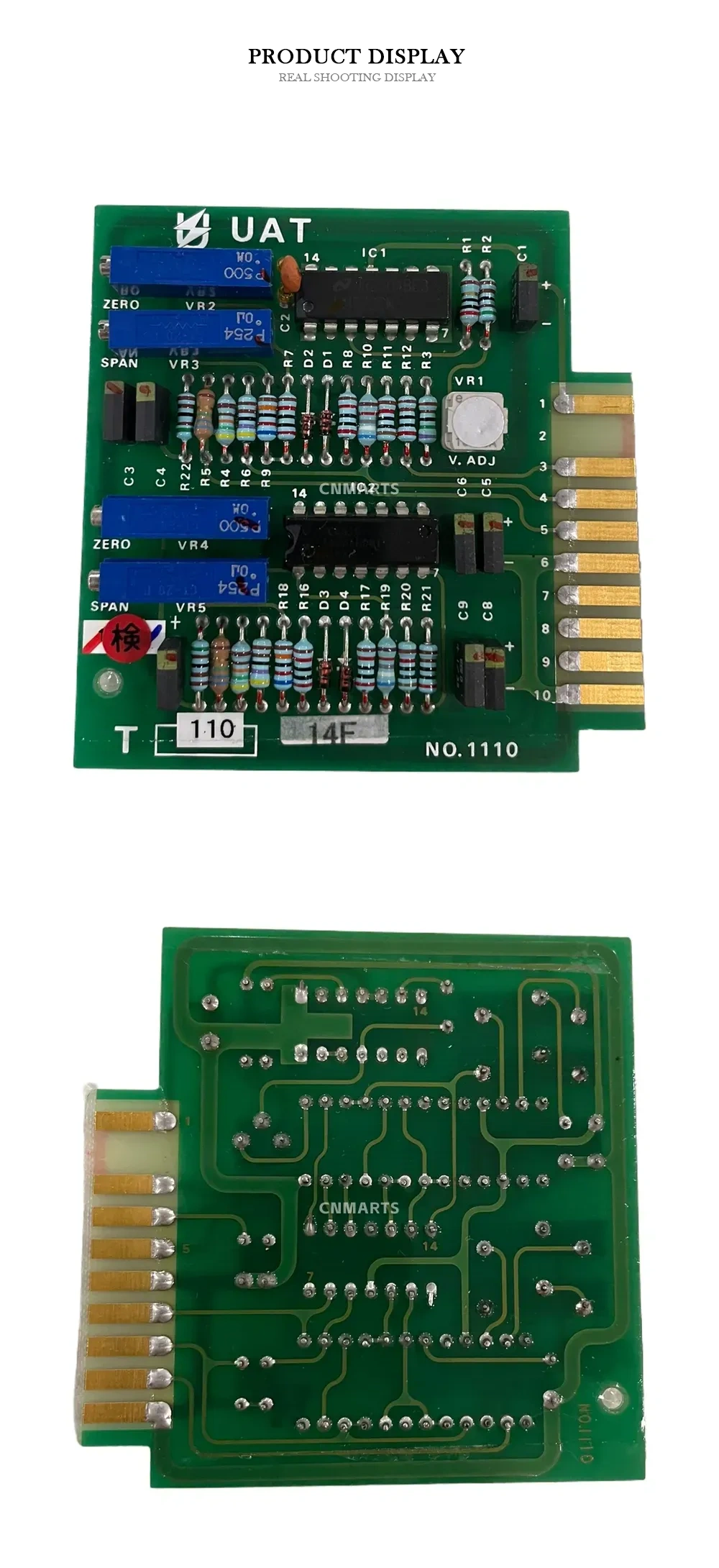

The UAT NO. 1110 is a dedicated signal conditioning printed circuit board (PCB) module designed for precise calibration and signal processing in industrial or instrumentation systems. This board is engineered to adjust and stabilize electronic signals, featuring a robust set of components for reliable performance. It includes two 14-pin dual in-line package (DIP) integrated circuits that form the core of its processing capabilities. For fine-tuning, the module is equipped with multiple blue potentiometers for independent ZERO (VR2, VR4) and SPAN (VR3, VR5) calibration, along with a white trimmer (VR1) for voltage adjustment. Connectivity is handled via a standard 10-pin edge connector, ensuring secure integration into a parent system. This module is an ideal replacement part for maintaining or repairing equipment that requires accurate signal conditioning.
Technical Specifications:
- Brand: UAT
- Model: NO. 1110
- Product Type: Signal Conditioning PCB Module
- Interface: 10-pin Edge Connector
- Onboard ICs: 2 x 14-pin DIP Integrated Circuits
- Adjustment Controls: Potentiometers for ZERO (VR2, VR4), SPAN (VR3, VR5), and Voltage (VR1)
| Brand | UAT |
|---|---|
| Model | NO. 1110 |
