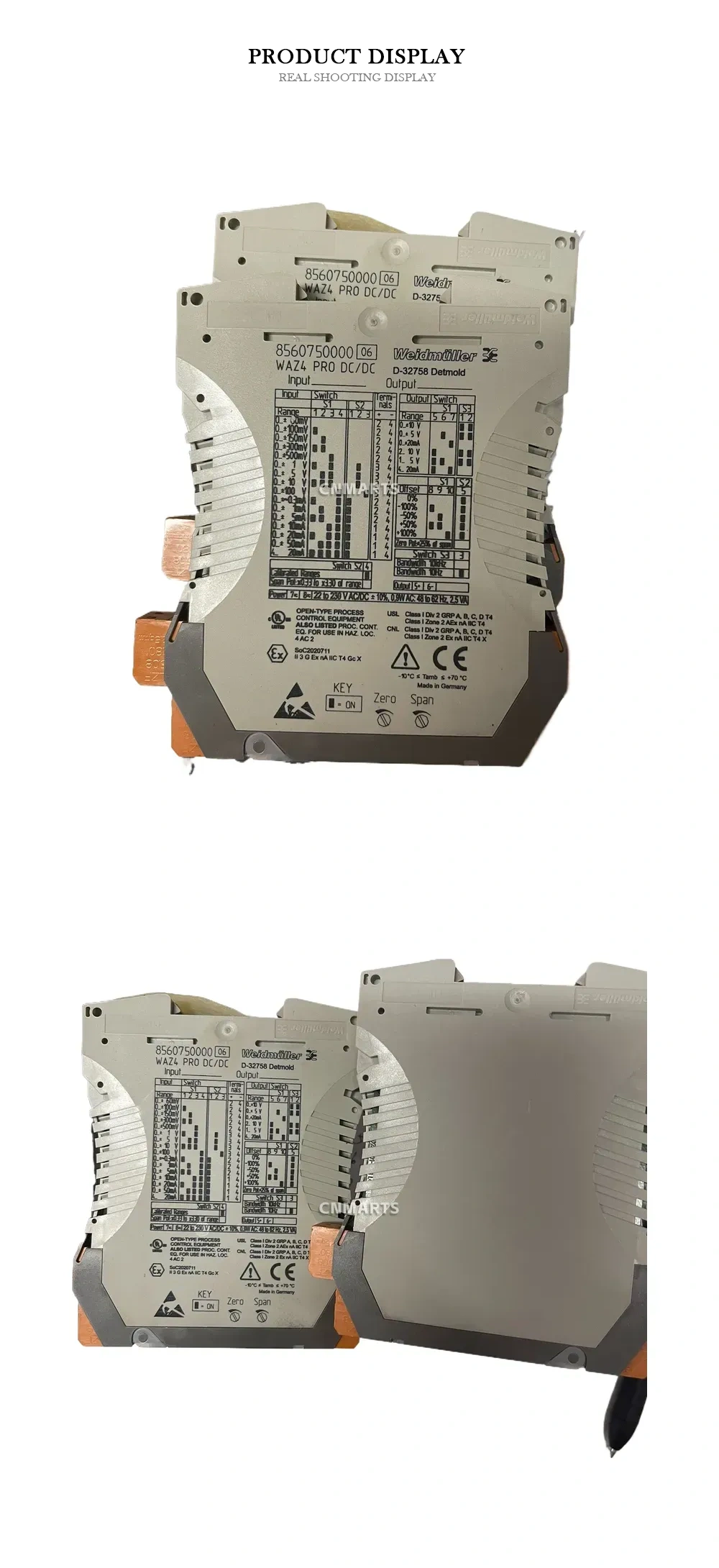

Weidmüller 8560750000 / WAZ4 PRO DC/DC Signal Converter / Signal Isolator

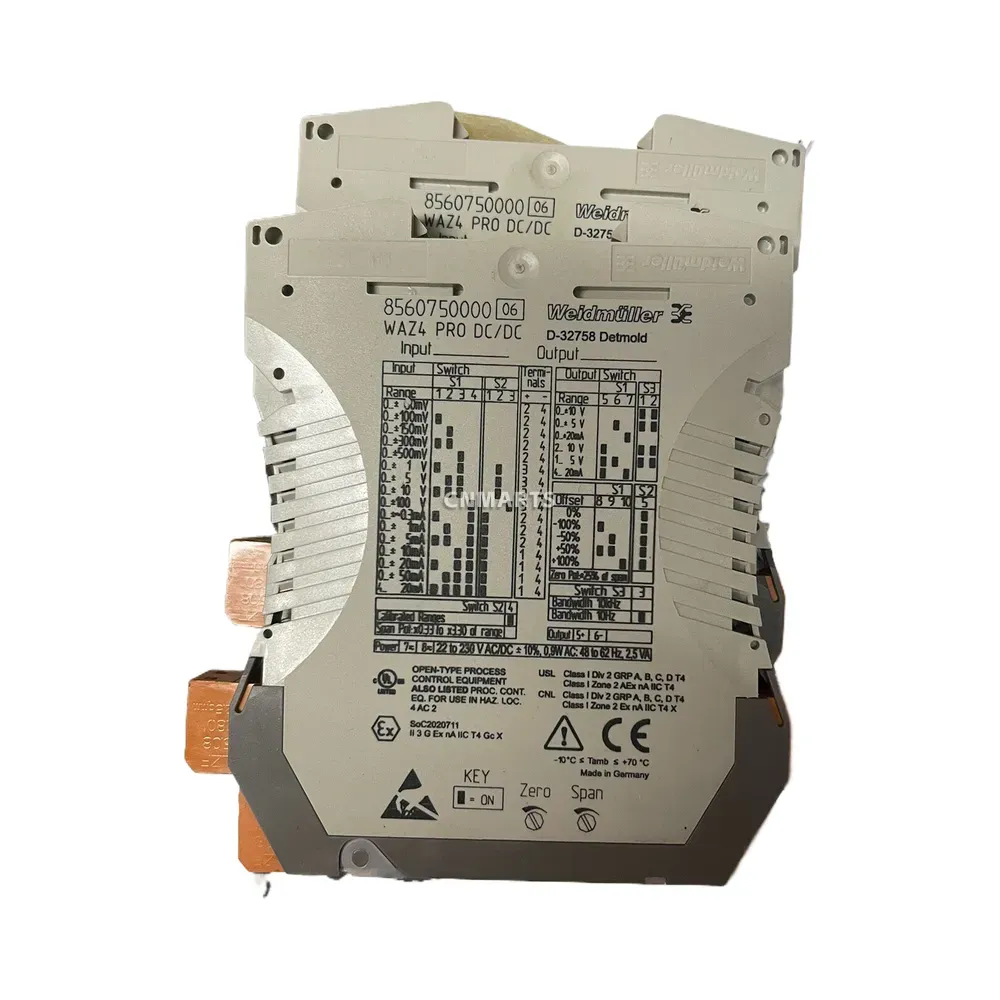

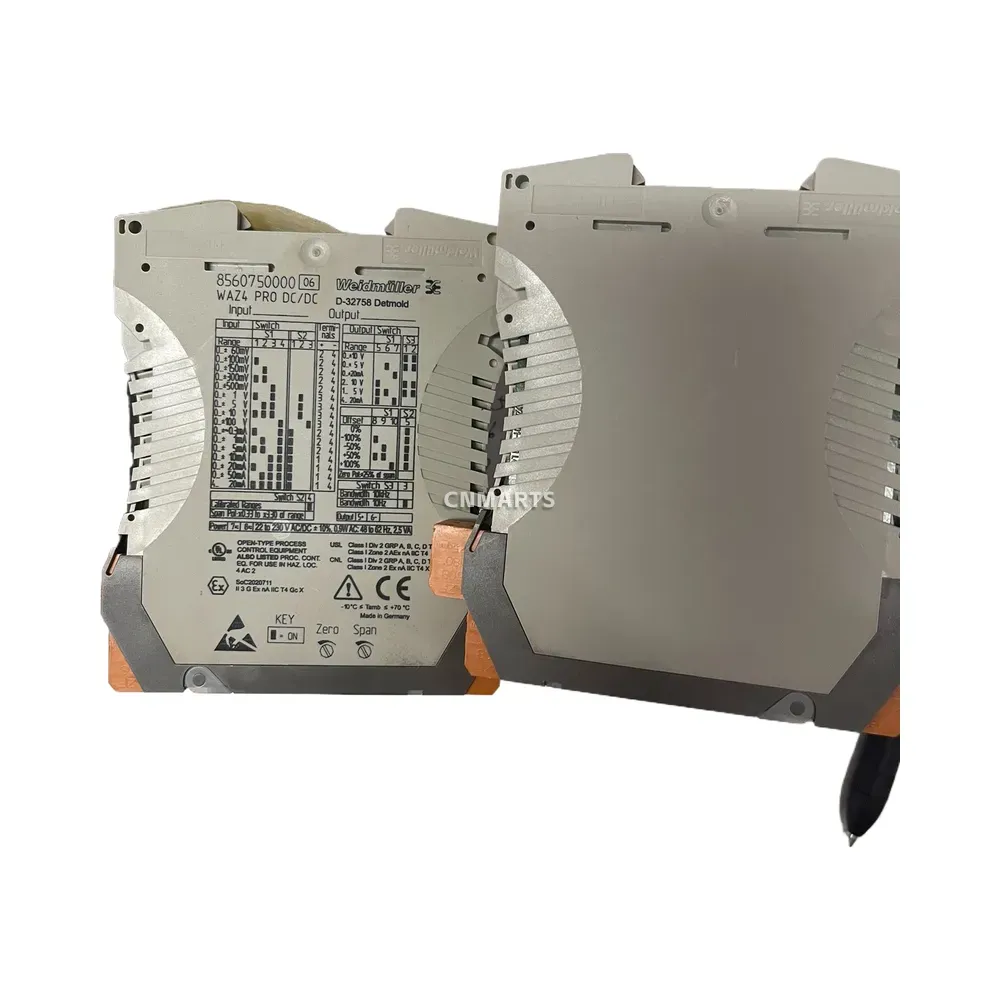

The Weidmüller WAZ4 PRO DC/DC (Order No. 8560750000) is a high-performance signal converter and isolator designed for demanding industrial automation and process control applications. Housed in a compact form factor, it expertly isolates and converts standard analogue DC signals. Its key feature is the extensive user configurability via DIP switches, allowing for precise adaptation of input and output ranges without the need for software. With a wide-range power supply and approvals for use in hazardous locations (Class I Div 2, Zone 2), the WAZ4 PRO DC/DC offers a reliable and flexible solution for signal conditioning in critical environments. Fine-tuning is made easy with onboard zero and span adjustment potentiometers, ensuring maximum accuracy for your system.
Technical Specifications:
- Model: WAZ4 PRO DC/DC
- Order Number: 8560750000
- Type: DC/DC Signal Converter / Isolator
- Power Supply: 18…22 to 250 V AC/DC ± 10% (48 to 62 Hz)
- Power Consumption: 0.9 W (AC); 2.5 VA
- Configurable Input Ranges: 0…20 mV to 0…100 V; 0…20 mA, 0…50 mA
- Configurable Output Ranges: 0…10 V, 0…5 V, 2…10 V, 1…5 V; 0…20 mA, 4…20 mA
- Configuration: Via DIP switches and Zero/Span potentiometers
- Operating Temperature: -10°C to +70°C
- Approvals: CE, USL/CNL Class I Div 2 (Groups A, B, C, D), Class I Zone 2, II 3 G Ex nA IIC T4 Gc X
- Country of Origin: Germany
| Brand | Weidmuller |
|---|---|
| Model | 8560750000 / WAZ4 PRO DC/DC |
