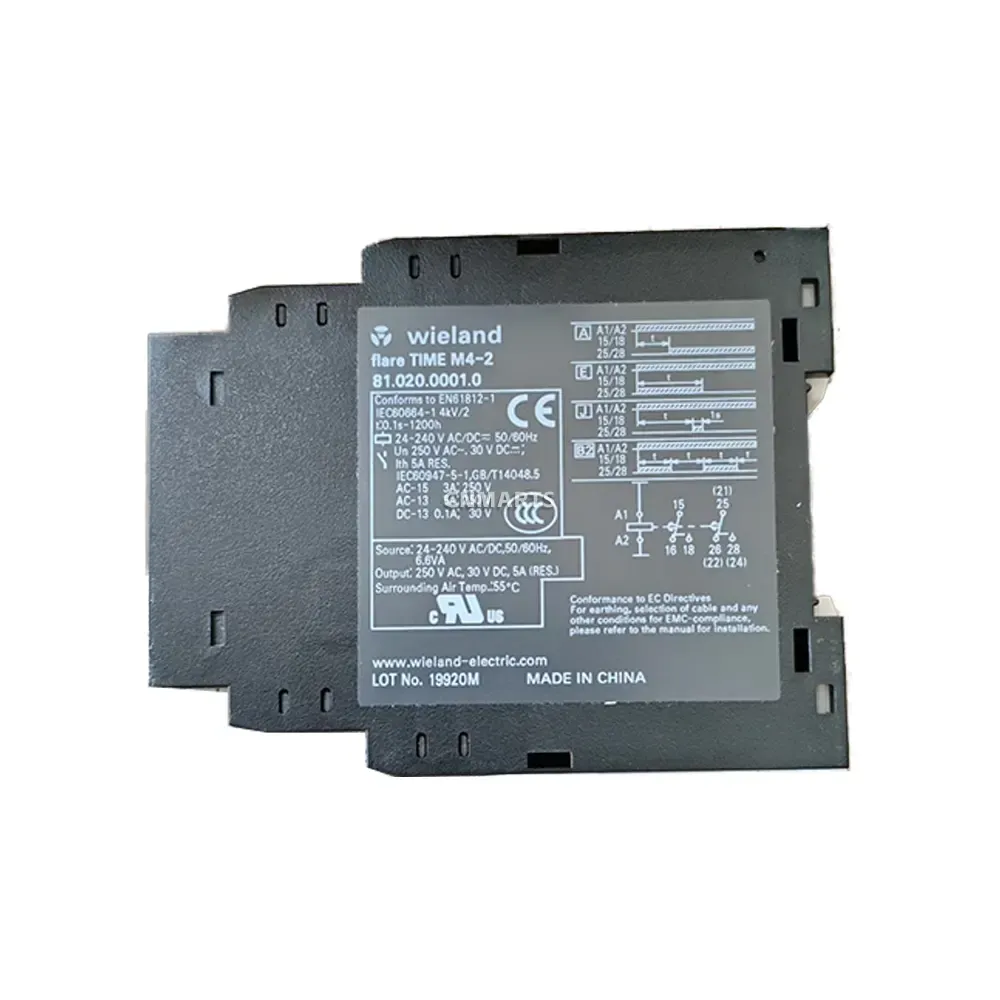

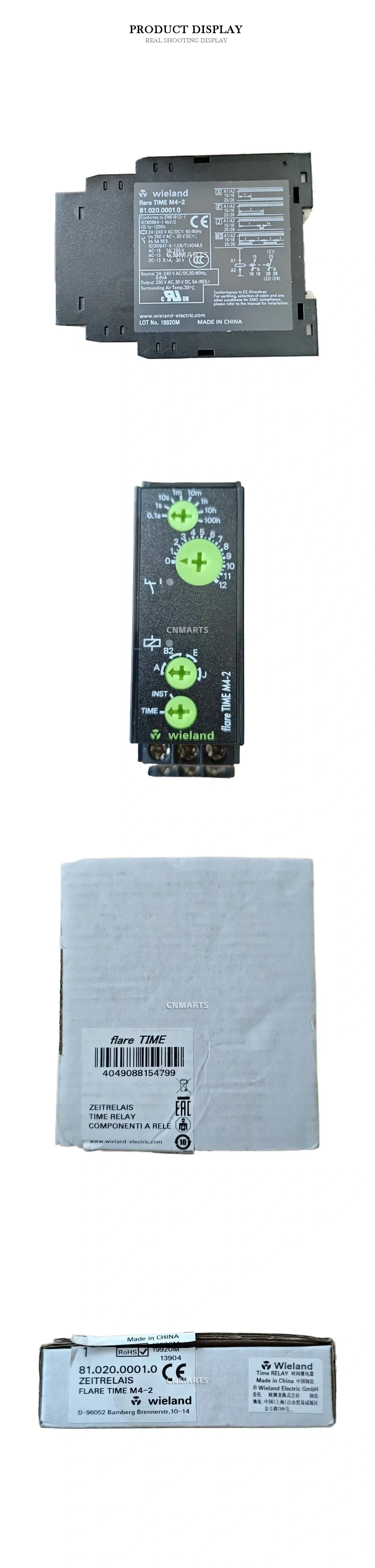

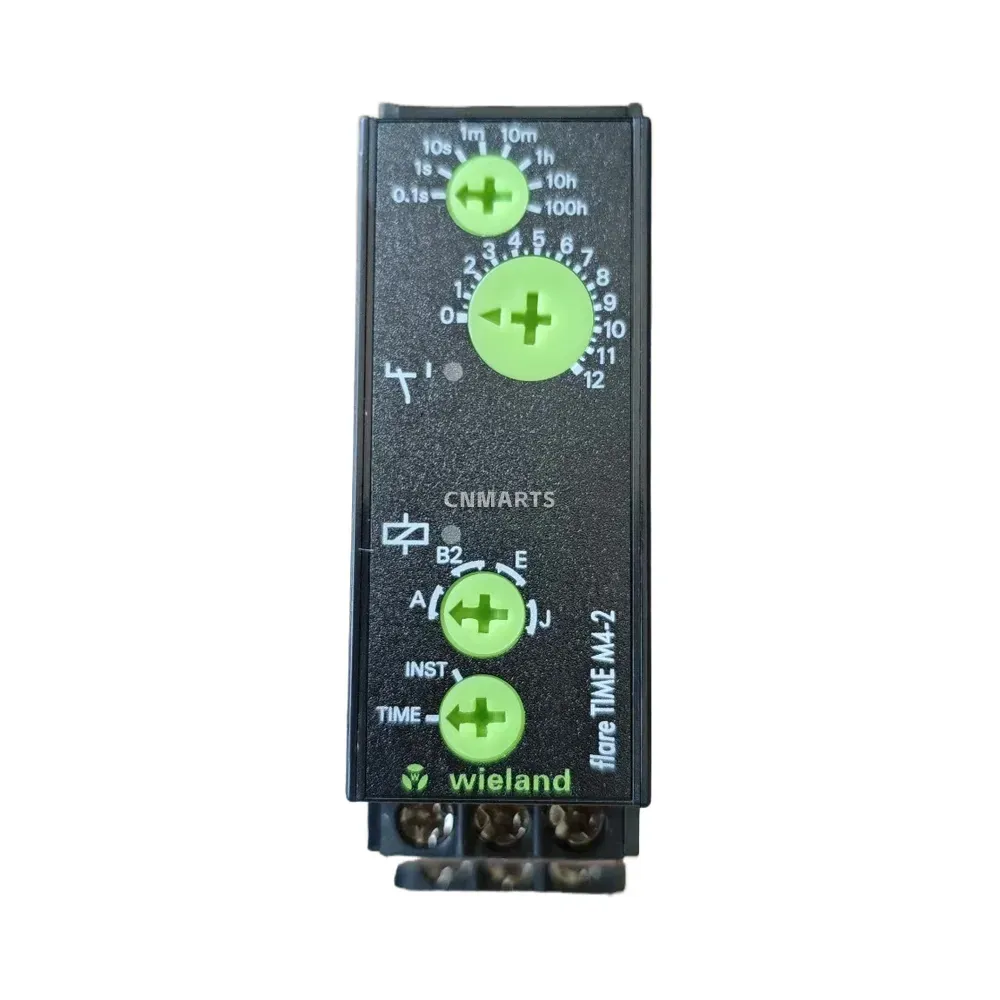

Wieland flare TIME M4-2 / 81.020.0001.0 Multifunction Time Relay
The Wieland flare TIME M4-2 (Part Number: 81.020.0001.0) is a highly versatile, multifunction electronic time relay designed for demanding industrial automation and control systems. Housed in a slim, DIN-rail mountable enclosure, this timer relay offers multiple selectable operating functions including A, B2, E, J, INST, and TIME, alongside widely adjustable time ranges from 0.1 seconds up to 100 hours. It features a universal control supply voltage of 24-240 V AC/DC, making it seamlessly adaptable to various global power standards. The relay is equipped with two reliable changeover contacts (DPDT) rated at 5A, ensuring robust switching capabilities for your electrical circuits. Built to stringent international standards including EN 61812-1, IEC 60664-1, and IEC 60947-5-1, the flare TIME M4-2 guarantees exceptional reliability, safety, and precision in industrial timing applications.
Technical Specifications:
- Brand: Wieland
- Model / Part Number: flare TIME M4-2 / 81.020.0001.0
- Control Supply Voltage: 24-240 V AC/DC, 50/60 Hz, 8.6 VA
- Time Range: Adjustable from 0.1 seconds to 100 hours
- Operating Functions: Multifunction (A, B2, E, J, INST, TIME)
- Output Contacts: 2 Changeover contacts (CO)
- Output Rating: 250 V AC / 30 V DC, 5 A Resistive (Ith 5A RES.)
- Utilization Categories: AC-15 3A/250V, AC-13 5A/250V, DC-13 0.1A/30V
- Max Surrounding Air Temperature: 55 °C
- Mounting: Slim DIN-rail mountable housing
- Terminals: A1/A2, 15/16/18, 25/26/28
- Compliance & Standards: EN 61812-1, IEC 60664-1 (4 kV/2), IEC 60947-5-1, GB/T 14048.5, CE, RoHS
- EAN/GTIN: 4049088154799
| Brand | wieland |
|---|---|
| Model | flare TIME M4-2 / 81.020.0001.0 |
