    The Wieland SA-OR-51-4RK-A (Order No. R1.180.0080.0) is a premium safety relay module engineered for highly demanding industrial safety circuits. Manufactured in Germany, this robust device provides reliable dual-channel monitoring equipped with K1 and K2 relay outputs and an integrated SBus interface for advanced networking capabilities. It is fully compliant with top-tier international safety standards, achieving SIL 3 (IEC 61508), SIL CL 3 (EN 62061), and PL e / Cat. 4 (EN ISO 13849-1) ratings. Operating efficiently on a 24V DC power supply with a minimal power consumption of 3.2W, the SA-OR-51-4RK-A ensures optimal protection for personnel and machinery in complex automation environments.

    Technical Specifications:

    • Brand: wieland
    • Model: SA-OR-51-4RK-A (Order No. R1.180.0080.0)
    • Safety Ratings: SIL 3 (IEC 61508), SIL CL 3 (EN 62061), PL e / Cat. 4 (EN ISO 13849-1)
    • Operating Voltage: DC 24 V (class 2)
    • Power Consumption: 3.2 W
    • Contact Ratings: AC-15: Ue 230 V / Ie 3 A | DC-13: Ue 24 V / Ie 3 A
    • Current Limits: Maximum current Imax = 6 A, Sum current Isum = 8 A
    • Overvoltage Category: EN 60664-1 (4 kV/2)
    • Wiring Specifications: 28-14 AWG Wire Size Only (Use Copper Conductors 60/75°C Only), Tightening Torque 5.25 lbs in
    • Certifications: UL LISTED (IND. CONT. EQ. 39RA)
    • Country of Origin: Made in Germany

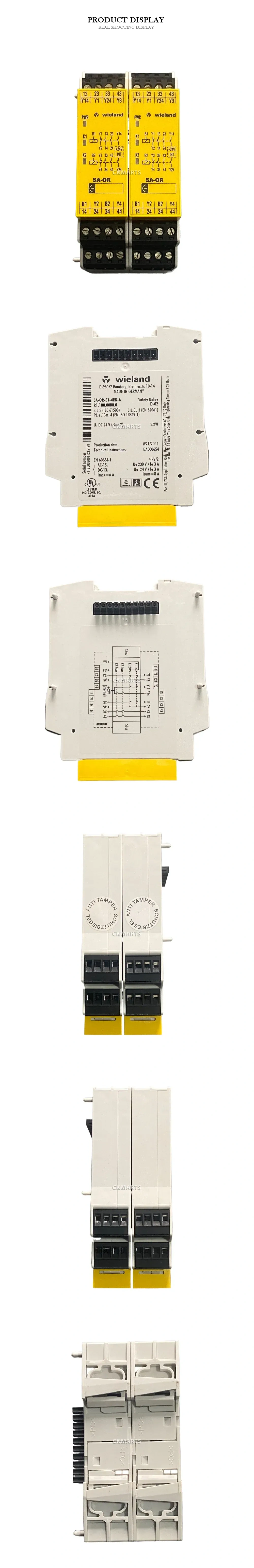

    wieland SA-OR-51-4RK-A Safety Relay Description

    Brandwieland
    ModelSA-OR-51-4RK-A
